Foredom K.1070 - Manual

Operation and
Maintenance Manual
for 1080 Micromotor
Hammer Kit
FOREDOM ®
For Your Safety:
Read this Manual before operating your
Foredom Micromotor Power Tool.
Always wear eye protection while using
the Foredom Micromotor Handpiece.

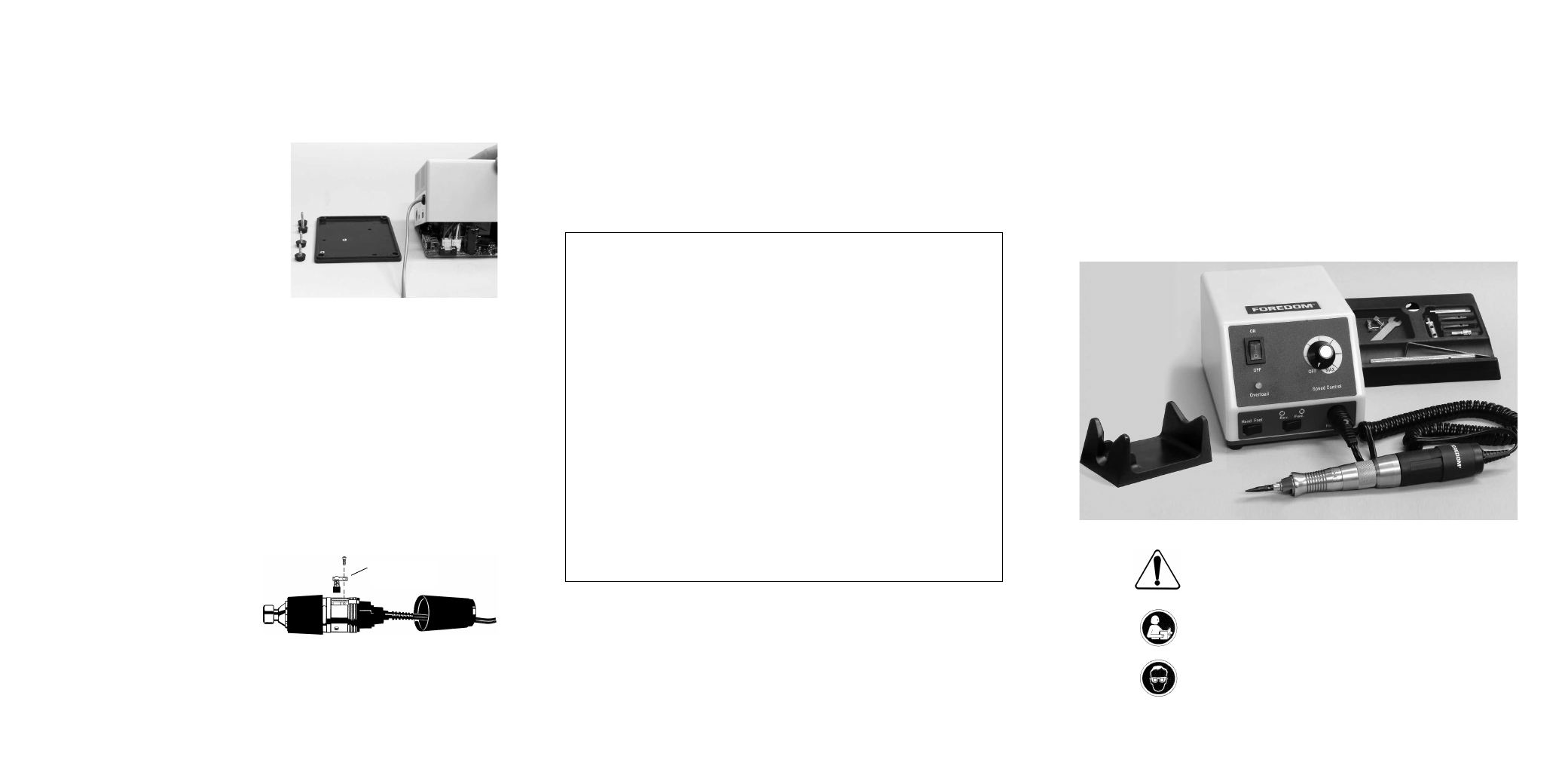

HP4-917
Control
HP4-933
Cradle
AT-1 Tray and Accessories
MH-011 Handpiece
For More Information
For more information on Foredom machines, handpieces or accessories, contact your local dealer.
When no local dealer is available, write, call or fax:
The Foredom Electric Company, 16 Stony Hill Road, Bethel, CT 06801
(203)792-8622, Fax: 203-796-7861 Email: [email protected]
Visit our website: www.foredom.com
F-1282 bh 4/06 Printed in U.S.A.
Foredom warrants its product to be free of defects in material or workmanship for a period of
one year after purchase.
During the warranty period, the defective product will be repaired or replaced without charge
or, at our option, the purchase price will be refunded. This warranty does not cover damage
caused in transit or by accident, misuse, or ordinary wear.
ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OF FITNESS AND
MERCHANTABILITY, ARE HEREBY LIMITED IN DURATION TO A PERIOD ENDING ONE YEAR
FROM DATE OF PURCHASE, AND WE WILL NOT BE LIABLE OR RESPONSIBLE FOR ANY SPECIAL
OR CONSEQUENTIAL DAMAGES.
Repair or replacement will be made at our option if the product is returned postpaid to:
The Foredom Electric Company, 16 Stony Hill Road, Bethel, CT 06801
All warranty repairs must be done at the factory at the address above. We will not pay any
shipping or transportation charges.
This warranty only covers the original purchaser of the product. Proof of purchase may be
requested.
Some states do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Repair Services
Authorized repair service is available at the Foredom factory in Bethel, CT. Send items for repair to
the factory marked “Attention: Repair Department”. Enclose the item(s), a packing list, and infor-
mation regarding the problem or repairs required. Estimates of repair cost will be made upon
request. It is our policy not to proceed with a repair without your approval if the cost (labor plus
parts) is more than fifty percent of the cost for a new replacement. You will be notified by mail and
advised of the cost to repair and to purchase a new replacement. Please allow three business days
for an estimate to be done and five to seven business days for repair work to be completed after
we receive your approval to proceed.
Please retain your proof of purchase for warranty repairs.
Warranty
Maintenance
The MH-011 has permanently lubricated ball bearings that do not require
lubrication. Putting even a small amount of oil into the handpiece can
damage it.
Cleaning Handpiece:
Use the Handpiece in as clean and dust free an environment as possible.
A cloth with a small amount of alcohol solution can be used to clean outside of
handpiece if necessary.
Do not use any other cleaning fluids or immerse handpiece in any liquid.
Checking/Changing Carbon Brushes:
A spare set of carbon brushes (Part No. 813514) is supplied with each handpiece. Depending on
how long the handpiece is used each day, the brushes should be checked for wear periodically
(about every 200 hours of use) and replaced when the brush is less the 2mm (5/64
″) long.
To Check/Replace Motor Brushes:
1. Unscrew protective cap from rear of
motor (see Figure 4) by turning in counter-
clockwise direction while griping handpiece
body. (It has a standard right hand thread.)
2. With small crosspoint screwdriver remove screws and brush assemblies one at a time. Check
length of carbon brush from spring to curved side of brush. Brushes should be removed,
examined, and replaced (if necessary) one at a time.
3. Re-insert brush assembly or new brush assembly into brush tube. Replace and tighten screws.
4. Screw protective cap back onto rear of motor housing so that top of brush
assembly is completely covered.
Brush
5. Handpiece Overload Protection:
If the Handpiece is used in an overload condition caused by excessive workload, it will trigger the
overload circuit protector. The red overload light will come on with an audible alarm, and the hand-
piece will stop. Immediately turn off control by putting the Power ON/OFF switch in OFF position.
Put power switch in ON position again when overload condition is corrected. There may be a time
delay of several seconds before the overload trip resets.
6. Fuse Protection:
The internal circuit is protected by a 3.15 Amp,
5mm x 20mm, Bussman Type GDC-3.15A or equiv-
alent fuse. A blown fuse usually indicates a short
circuit condition on the circuit board. The blown
fuse should require that the board be checked by
a qualified technician. Disconnect the power cord,
unscrew the four feet and remove the baseplate.
The fuse is located in the top left corner of the cir-
cuit board. Replace fuse and re-assemble the
baseplate with four feet.
Re-connect the Power cord and test unit operation.
4-feet baseplate fuse
Figure 3
