Foredom H.35SJ - Manual

Item Part Description
E HP103106 Spindle
F HP 103121 Front Bearing
G HP 103107-2 Spacer
H HP 103122 Drive Bearing
I HP 103108 Thrust Ring (2 required)
J HP 103135 Slip Joint Drive Shaft Assembly
K HP 103120 Rear Bearing (2 required)
L HP 103107-4 Spacer .404
M HP 10727 Slip Joint Shaft Connector
N HP 103128 Shim Washer
O HP 103132 Slip Joint QD Connector, #35

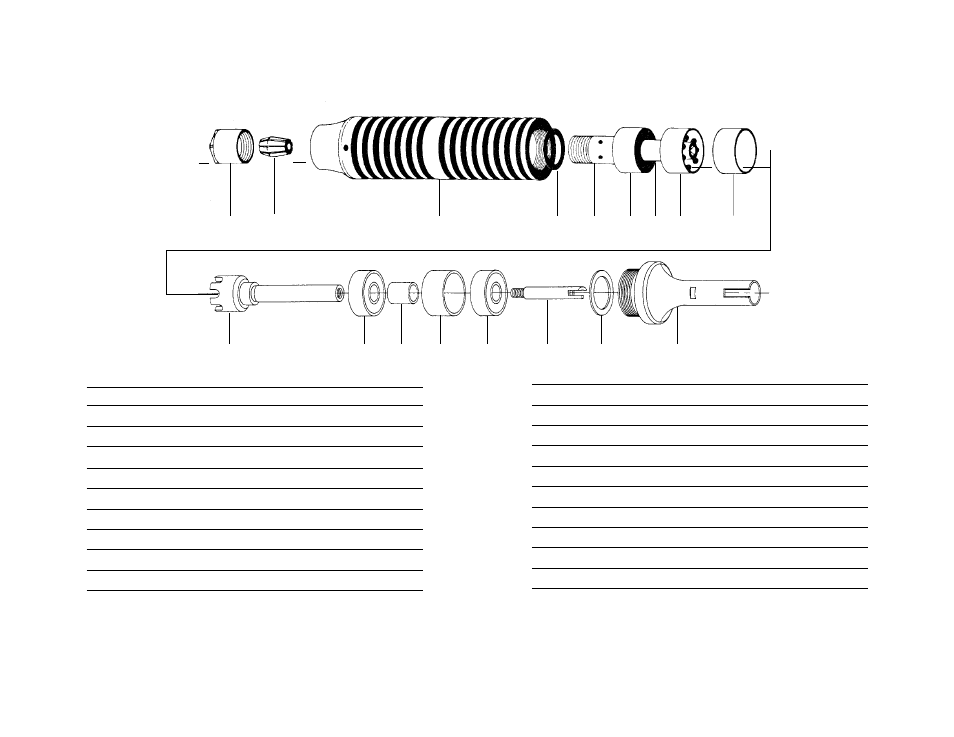

Parts List
H.35 SJ Handpiece
Printed in U.S.A. Form 1131A 11/11
Item Part Description
HP 103117 Pin and Wrench
HP 103125 Socket Screw Key
A HP 103105 Chuck Nut
B HP 103113 Collet for 3/16 ″ Shanks
HP 103114 Collet for 1/8 ″ Shanks
HP 103115 Collet for 3/32 ″ Shanks
HP 103116 Collet for 1/16 ″ Shanks
HP 103124 Collet for 3.00 mm Shanks
HP 103126 Collet for 4.00 mm Shanks
C HP 103101 Housing
D HP 103103 Wavy Thrust Washer
A B C D E F G H I
J K L I K M N O
