3. Wiring and Piping
43

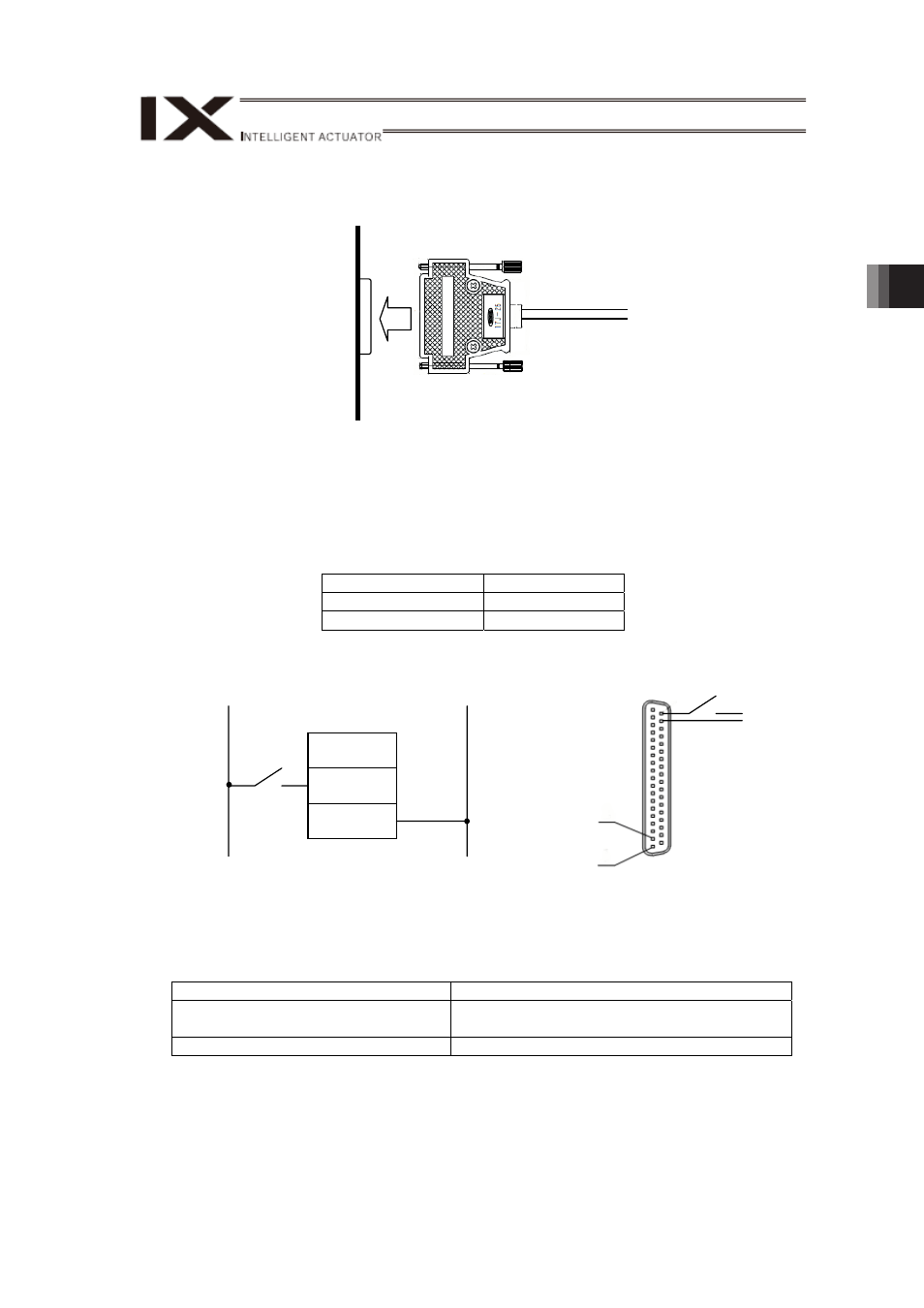

Connect the Resectable and plug as shown in the figure below.
٧ ALM Display
If 24V DC current is flown to pins 36 and 37 on the D-sub 37-pin connector on the base side,
ALM display lamp turns on.
For instance, connect it to the controller or I/O and detect the robot alarm, and it enables to
inform an occurrence of an alarm by ALM display lamp turned on.
Specifications
Rated Voltage 24V DC
Rated Current 12mA
Illumination Color Red LED
(2) User Tubing
Connect an air tube that you have prepared to the quick joint.
Specifications
Normal Service Pressure 0.8MP
Dimensions (outer diameter • inner
diameter) and Number of Tubes
I 6mmuI4mm 4 pieces
Working Medium Air
Plug
Resectable
Pin No.
36
37
24V DC
0V
Base side
D-Sub Connector Receptacle with 37-Pin
1
37
0V
24V DC
36
2
