9. Installation
36

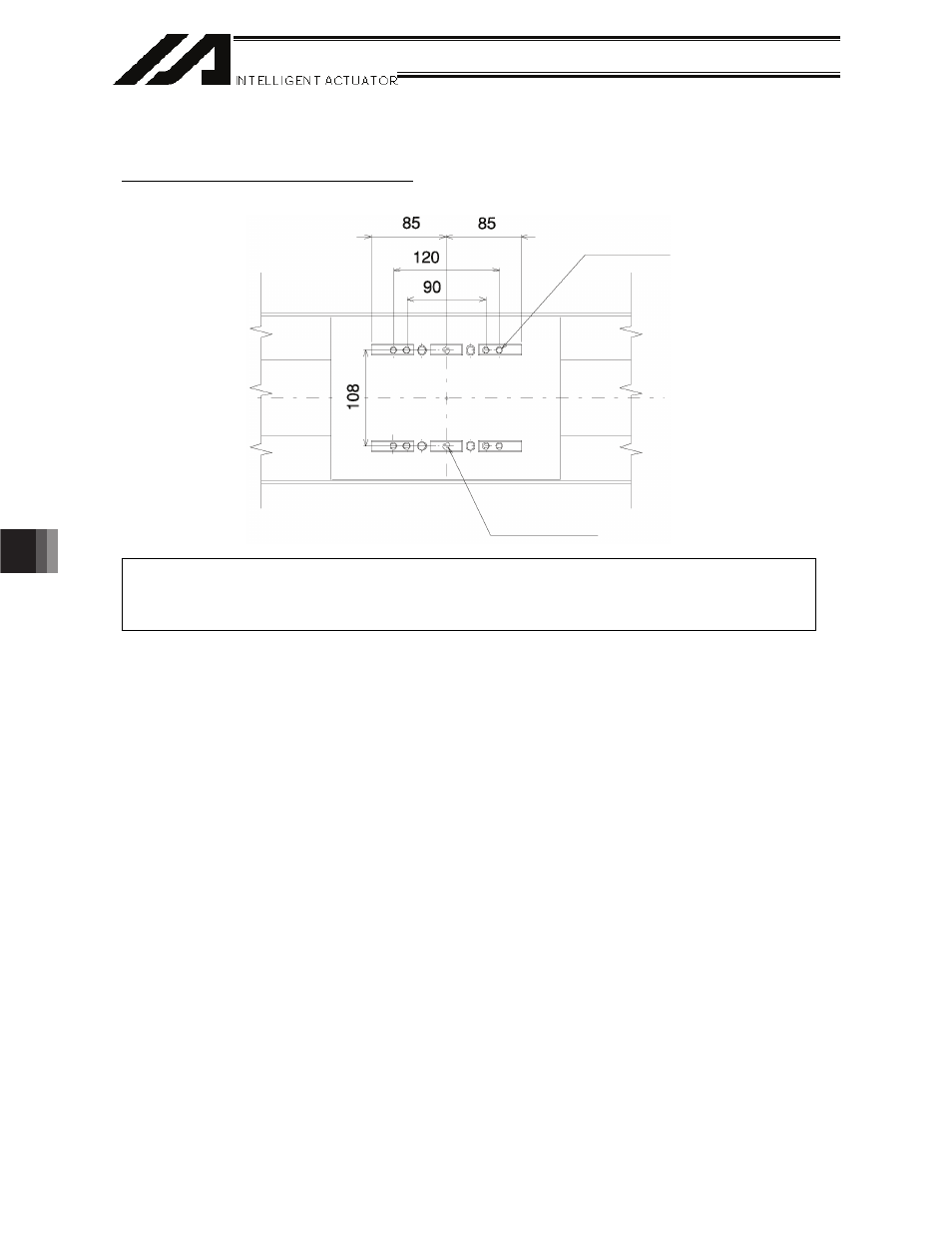

8-M8, depth 20
2-8H7, depth 10
9.3.3 N19SS, N19SM
x Two reamed holes are provided in the slider. Use these holes if the load must be installed/removed
repeatedly. To fine-tune the squareness, etc., use one of these reamed holes in the slider.
x Keep the screw-in depth to 20 mm or less. If the screw is inserted exceeding this depth, it will damage
the actuator, such as causing scratches on the side cover.
* Caution: When installing the load, do not let viscous substances such as adhesives and paints
attach to the stainless sheet or apply force only to a specific part of the actuator to
dent the affected part. They can lead to slider malfunction or sheet damage.
