12

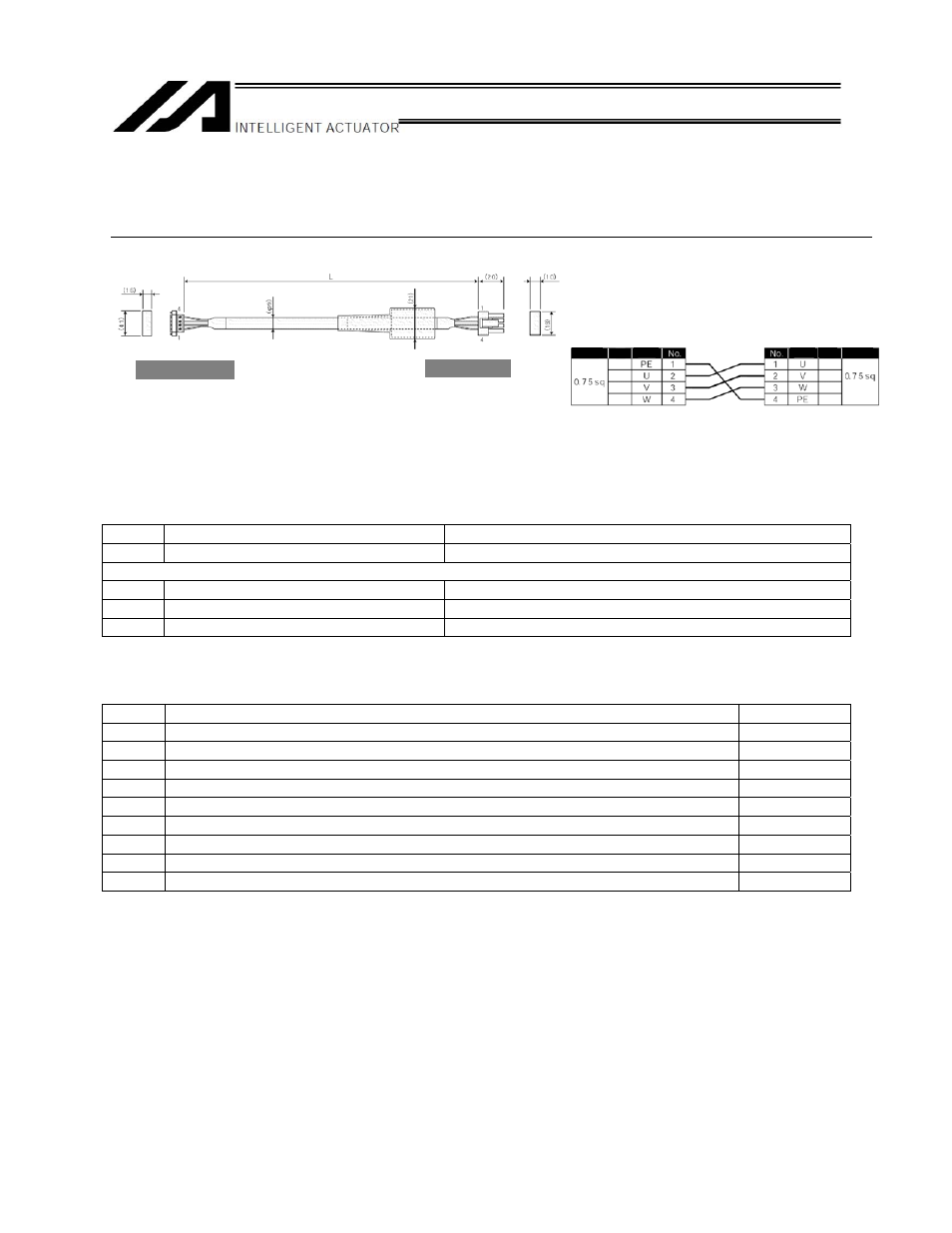

5.3 Motor cable
Model
CB-X-MA 
6. Product Check
Check the condition of the unpacked product as well as the included items.
No. Item Model
1 Actuator Refer to "How to Read Model Nameplate."
Accessories
2 Brake box RCB-110-RA13-0
3 Brake box-controller connection cable CB-RCS2-PLA010
4 Operation manual
6.1 Operation Manuals Relating to This Product
No. Item Model
1 XSEL-P/Q Controller Operation Manual ME0148
2 XSEL-Controller P/Q/PX/QX RC Gateway Function Operation Manual ME0188
3 PC Software IA-101-X-MW/IA-101-X-USBMW Operation Manual ME0154
4 Teaching Pendant SEL-T/TD Operation Manual ME0183
5 Teaching Pendant IA-T-X/XD Operation Manual ME0160
6 DeviceNet Operation Manual ME0124
7 CC-Link Operation Manual ME0123
8 ProfiBus-DP Operation Manual ME0153
9 Ethernet Operation Manual ME0140
* Enter the applicable cable length (L) in

.
A desired length up to 30 m can be specified.
Example) 080 = 8 m
(Front view)
Controller end Actuator end
(Front view)
Green
Red
White
Black
Wire size Color Signal Wire size Color Signal
Red
White
Black
Green
(crimped)
