Section 7: PC2250 Utility Software
6/12 48 51214 Rev. 7

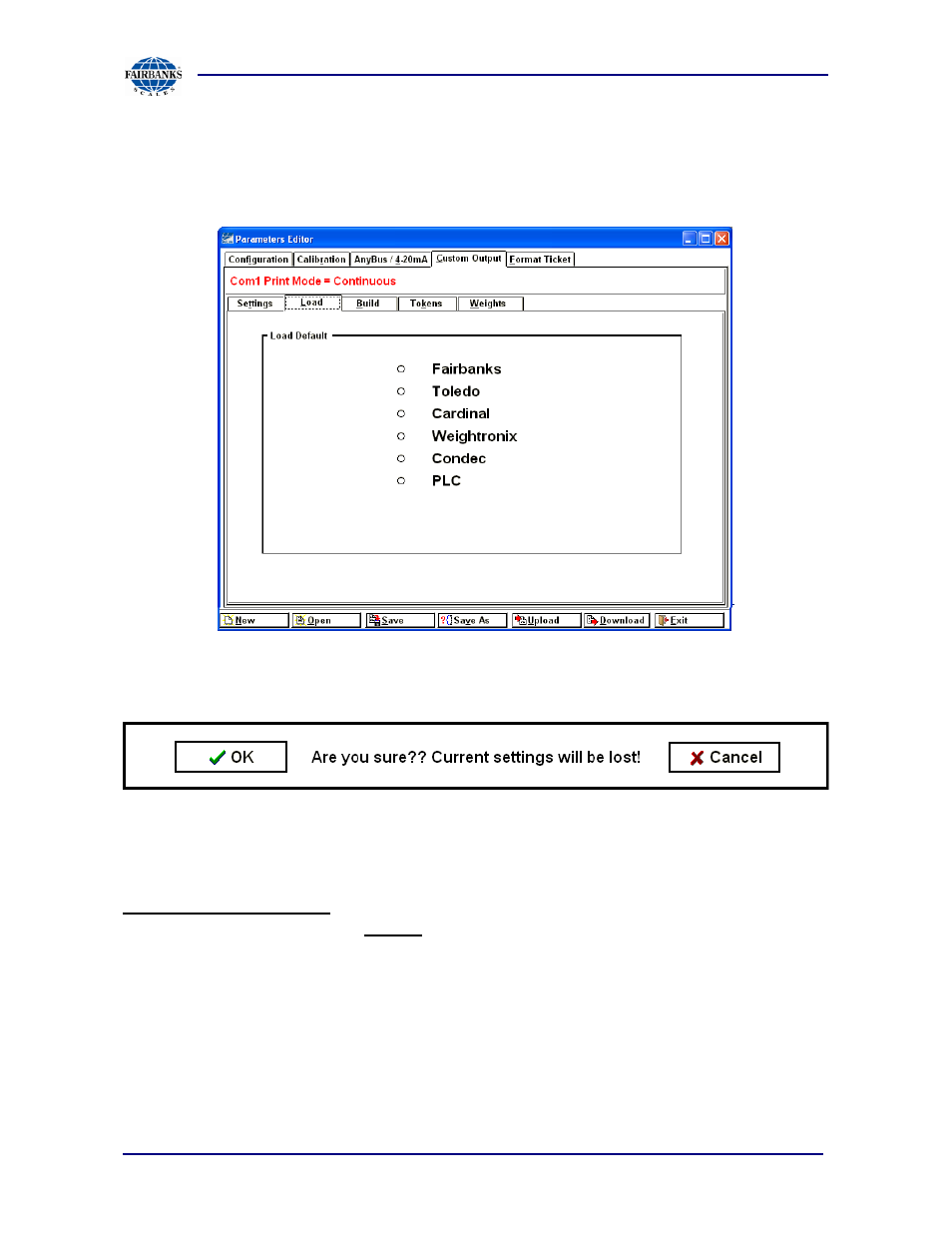

Custom Output: Load
A variety of pre-packaged output strings is available, click the radio button to select.
Upon selection, confirm or cancel. Refer to Appendix for data output structures.
NOTE for Rev 1.0 to 1.9: When custom outputs are formatted for Port 1, the FB2250
Port 1 output must be set to “print F”.
IMPORTANT NOTE: Whenever custom outputs are programmed for Port 2,
upon completion the power MUST be cycled to the FB2250 Instrument in order
for them to take effect.
