16 Chapter 1
Signal Generator Overview
Front Panel Display
Front Panel Display
Figure 0- 2 shows the various regions of the PSG display. This section describes each region.

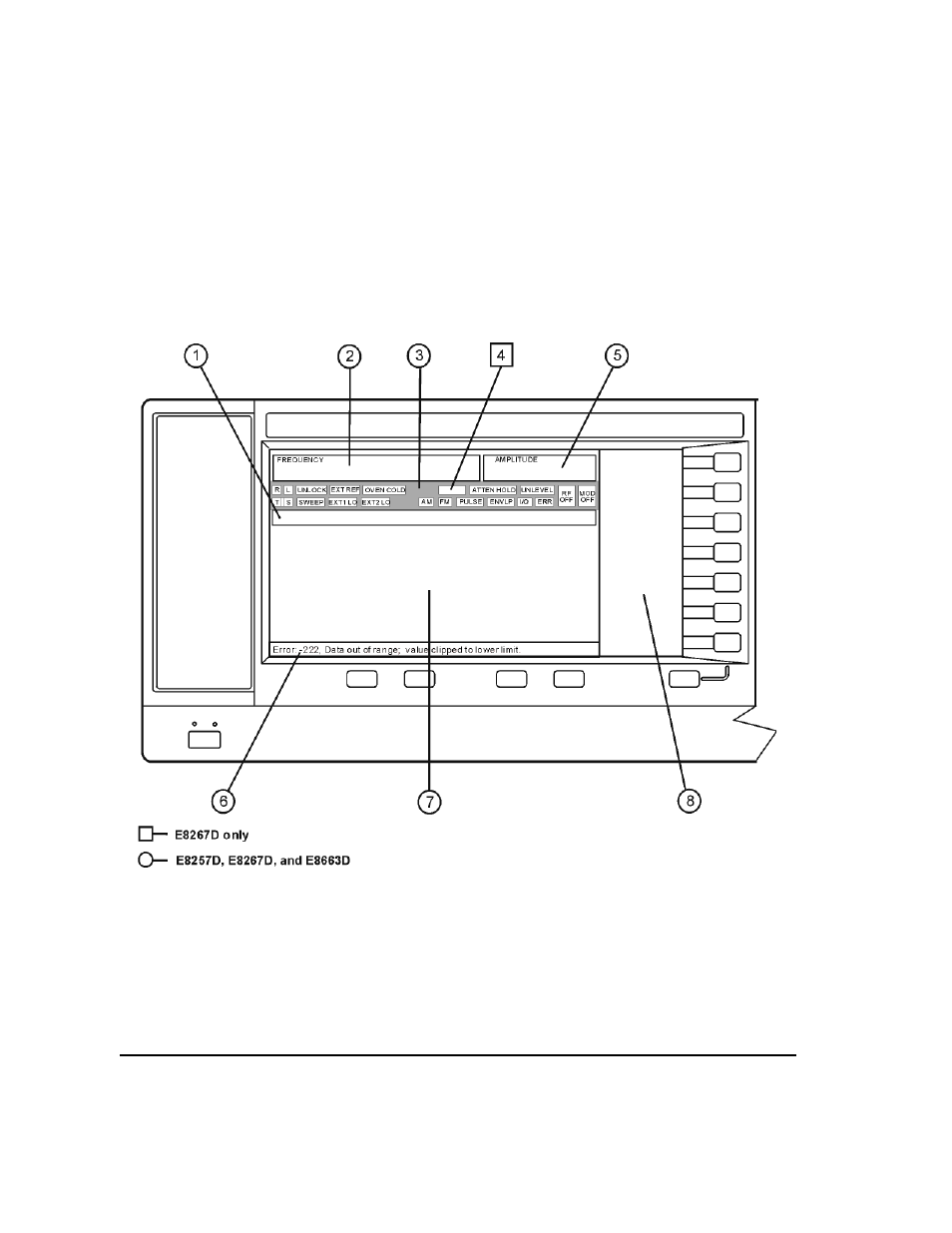

Figure 1-2 Front Panel Display Diagram
1. Active Entry Area 5. Amplitude Area
2. Frequency Area 6. Error Message Area
3. Annunciators 7. Text Area
4. Digital Modulation Annunciators 8. Softkey Label Area
