232
Chapter 10
Two–Tone Waveform Generator
Creating, Viewing, and Modifying Two–Tone Waveforms

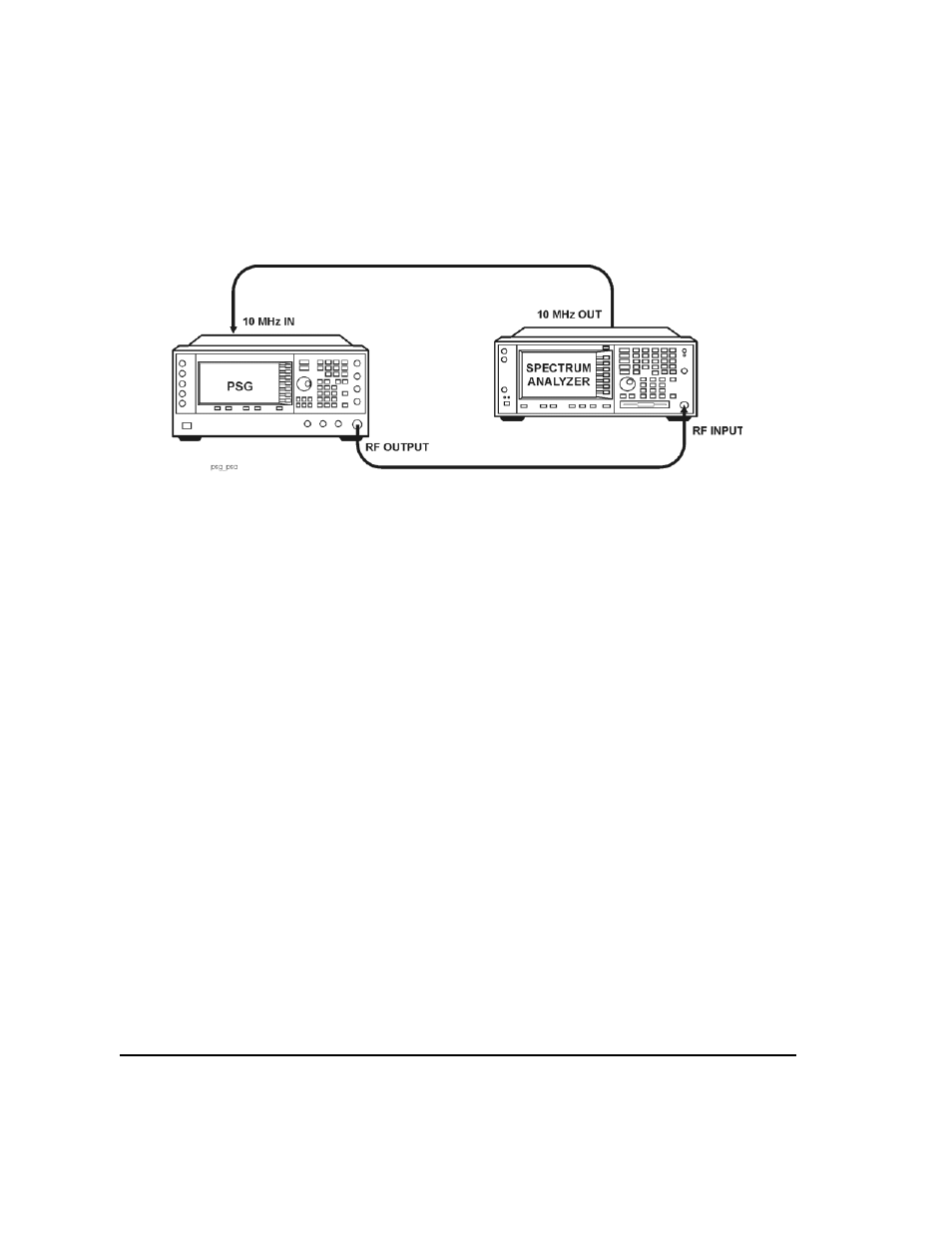

Figure 10-1
Spectrum Analyzer Setup
To Create a Two–Tone Waveform
This procedure describes how to create and a basic, center–aligned, two–tone waveform.
1.
Preset the signal generator.
2.
Set the signal generator RF output frequency to 20 GHz.
3.
Set the signal generator RF output amplitude to 0 dBm.
4.
Press
Mode
>
Two Tone
>
Freq Separation
>
10
>
MHz
.
5.
Press
Two Tone Off On
to On
.
6.
Turn on the RF output.
The two–tone signal is now available at the signal generator RF OUTPUT connector.
shows what the signal generator display should look like after all steps have been
completed. Notice that the T–TONE, I/Q, RF ON, and MOD ON annunciators are displayed and the
parameter settings for the signal are shown in the status area of the signal generator display.
