224 Chapter 9
Multitone Waveform Generator
Creating, Viewing, and Optimizing Multitone Waveforms

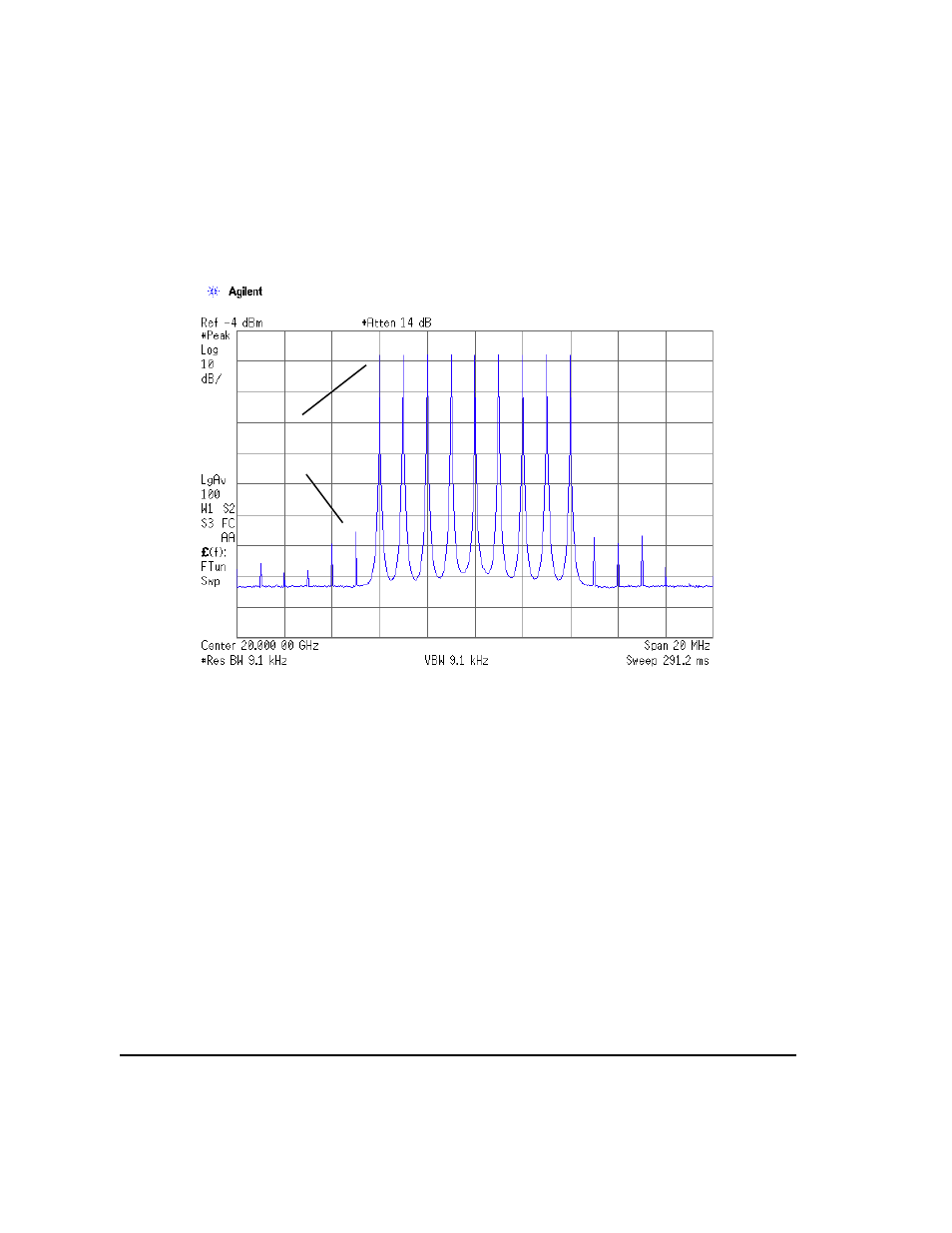

Figure 9-3
To Edit the Multitone Setup Table
This procedure builds upon the previous procedure.
1. Press Initialize Table > Number of Tones > 10 > Enter .
2. Press Done .
3. Highlight the value (On) in the State column for the tone in row 2.
4. Press Toggle State .
5. Highlight the value (0 dB) in the Power column for the tone in row 4.
6. Press Edit Item > –10 > dB .
7. Highlight the value (0) in the Phase column for the tone in row 4.
8. Press Edit Item > 123 > deg .
Intermodulation
Distortion
Multitone
Channels
