Chapter 8 209
GPS Modulation (Option 409)
Real Time MSGPS

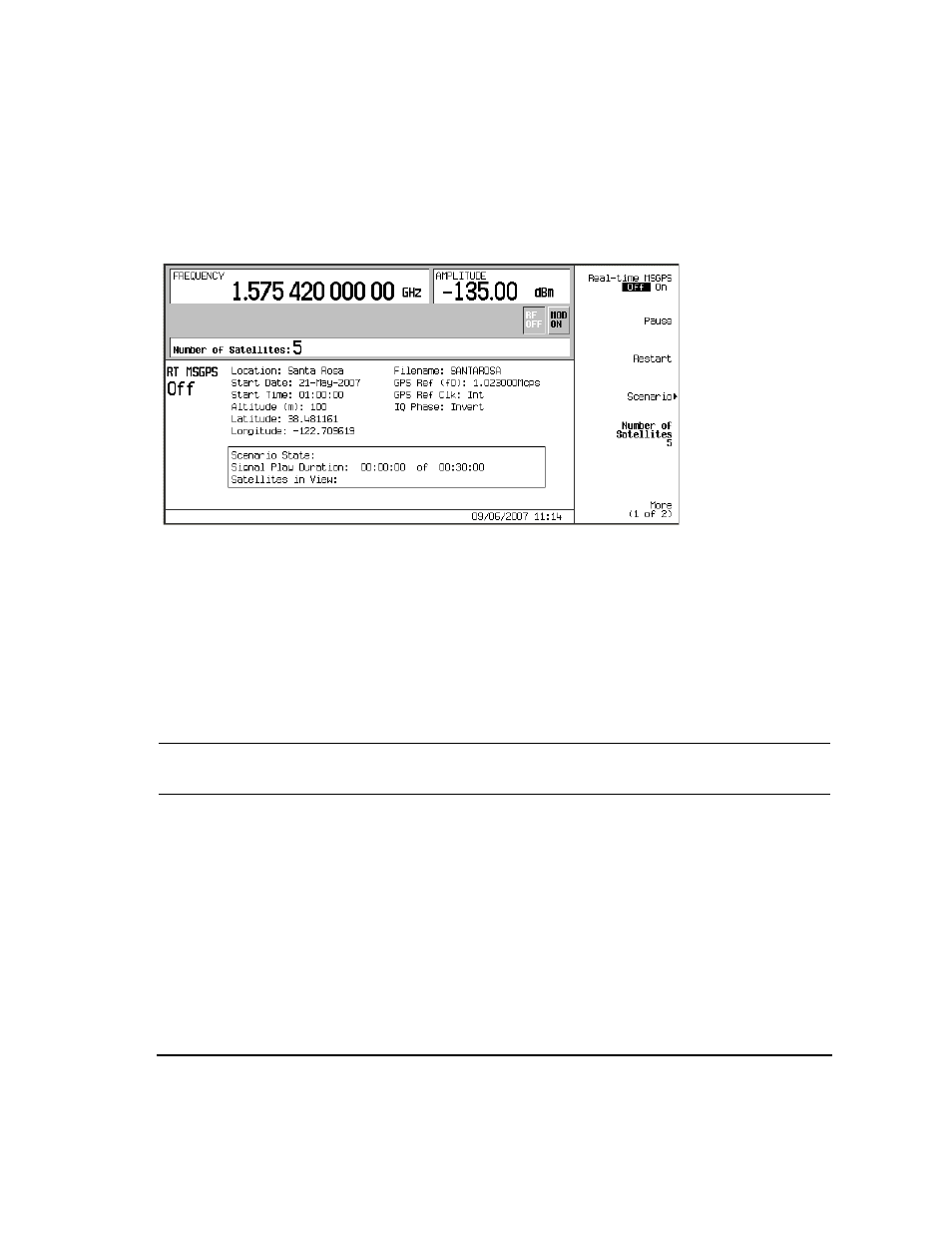

Figure 8-2 Real Time MSGPS Scenario
Configuring the External Reference Clock
1. Connect the external reference clock source to the rear panel connector BASEBAND GEN REF IN.
2. Set the chip rate of the external clock to the desired value.
3. Press
Mode
>
More (1 of 2)
>
GPS
>
Real Time MSGPS
>
More (1 of 2)
>
GPS Ref Clk Ext Int
to Ext.
4. Press
GPS Ref (f0)
.
5. Use the numeric keypad to set the GPS reference clock to the same chip rate as the external clock.
NOTE
The chip rate of the external source must match the chip rate of the reference clock set using
the
GPS Ref (f0)
softkey.
