136
Chapter 4
Optimizing Performance
Creating and Applying User Flatness Correction

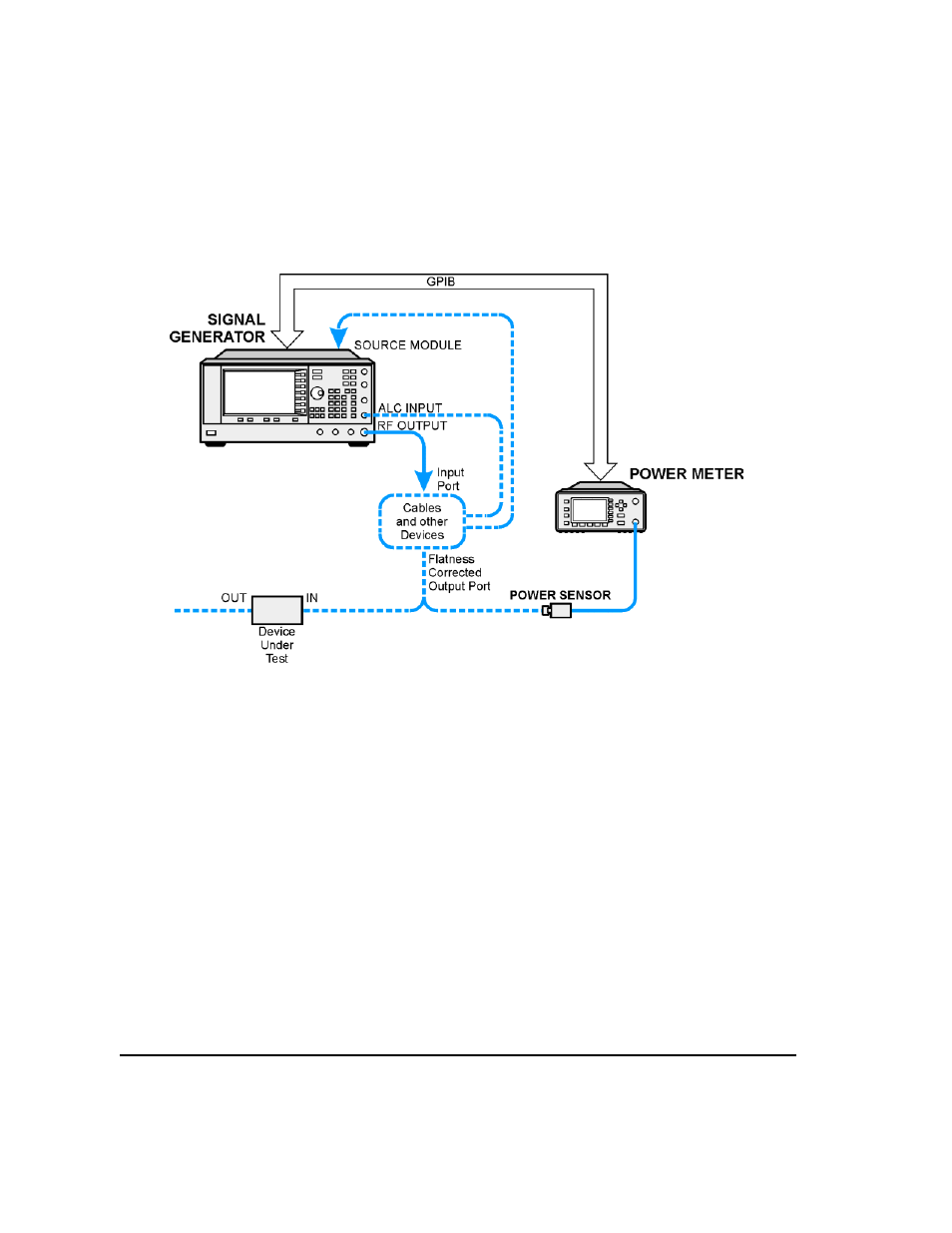

Figure 4-4
User Flatness Correction Equipment Setup
Configure the Signal Generator
1.
Press
Preset
.
2.
Configure the signal generator to interface with the power meter.
a.
Press
Amplitude
>
More (1 of 2)
>
User Flatness
>
More (1 of 2)
>
Power Meter
>
E4416A
,
E4417A
,
E4418B
, or
E4419B
.
b.
Press
Meter Address
> enter the power meter’s GPIB address >
Enter
.
c.
For E4417A and E4419B models, press
Meter Channel A B
to select the power meter’s active
channel.
d. Press
Meter Timeout
to adjust the length of time before the instrument generates a timeout error
if unsuccessfully attempting to communicate with the power meter.
3.
Press
More (2 of 2)
>
Configure Cal Array
>
More (1 of 2)
>
Preset List
>
Confirm Preset
.
This opens the User Flatness table editor and presets the cal array frequency/correction list.
4.
Press
Configure Step Array
.
This opens a menu for entering the user flatness step array data.
5.
Press
Freq Start
>
1
>
GHz
.
6.
Press
Freq Stop
>
10
>
GHz
.
