132
Chapter 4
Optimizing Performance
Using External Leveling
Technologies diode detectors. Using this chart, you can determine the leveled power at the diode
detector input by measuring the external detector output voltage. You must then add the coupling
factor to determine the leveled output power. The range of power adjustment is approximately –20 to
+25 dBm.

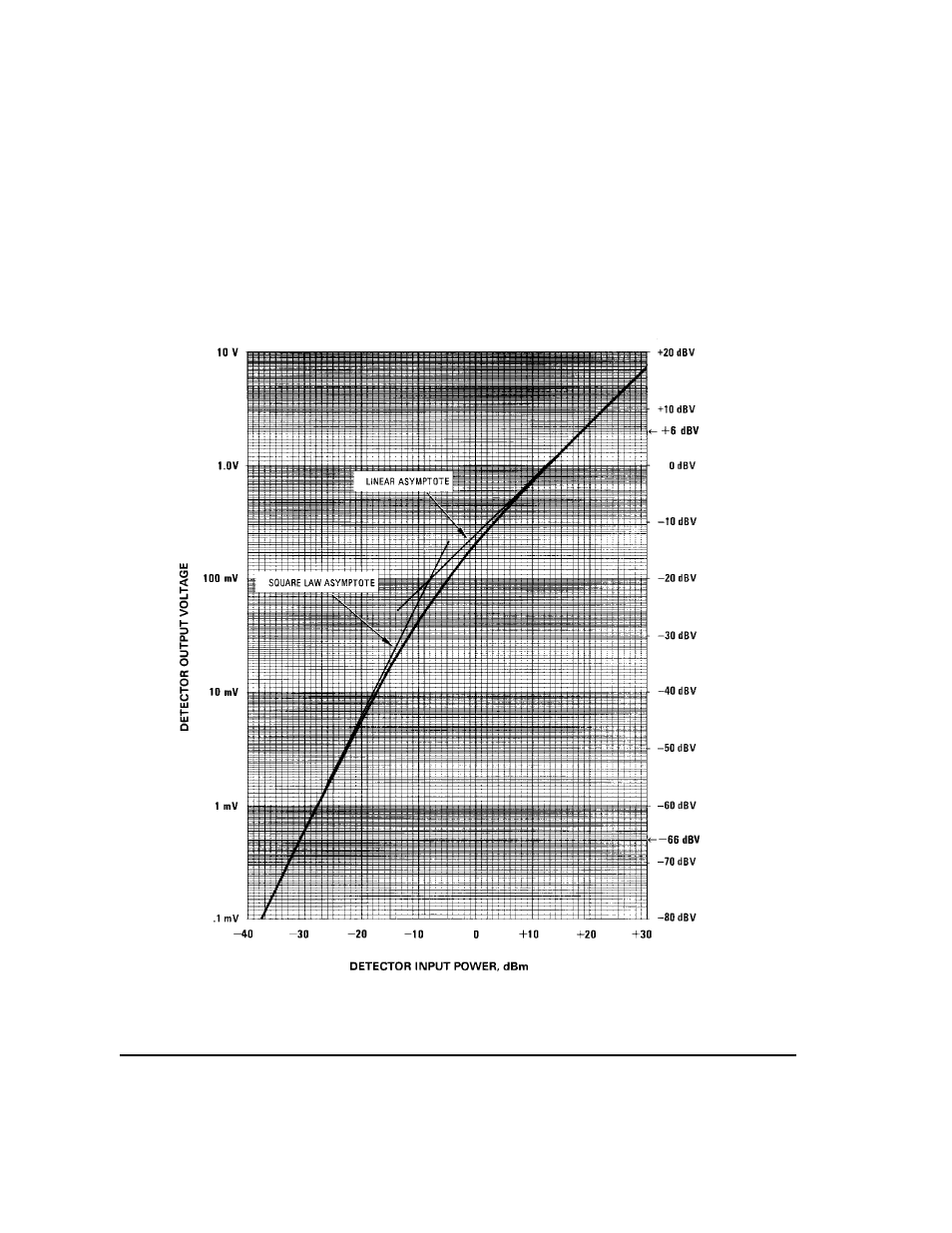

Figure 4-3
Typical Diode Detector Response at 25° C
