Page 133
Chapter 3
119
Basic Digital Operation
Using Waveform Clipping

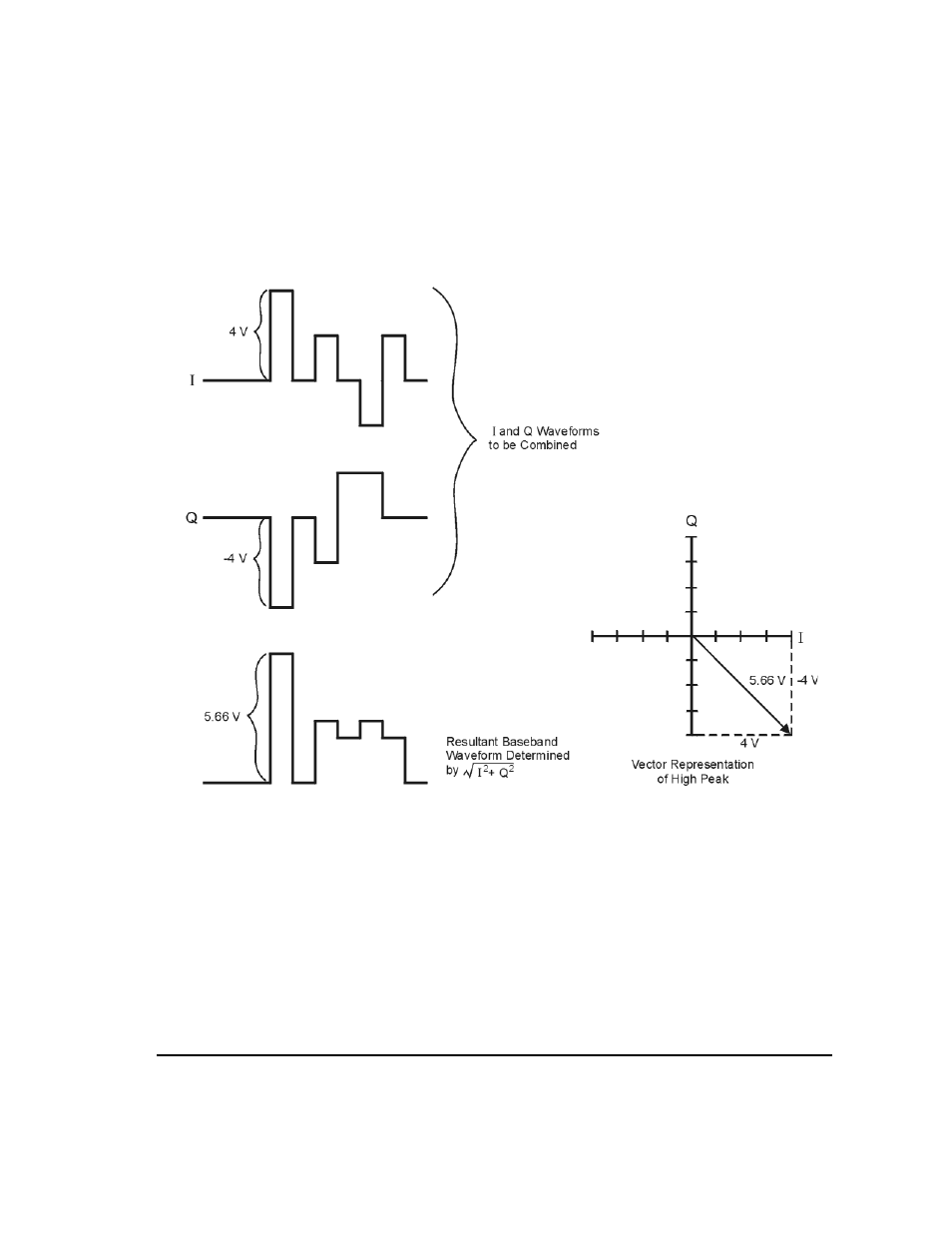

Figure 3-11
Combining the I and Q Waveforms
How Peaks Cause Spectral Regrowth
Because of the relative infrequency of high power peaks, a waveform will have a high
peak–to–average power ratio (see
). Because a transmitter’s power amplifier gain is set to
provide a specific average power, high peaks can cause the power amplifier to move toward
saturation. This causes intermodulation distortion, which generates spectral regrowth.
