2.1.2 MASTER / SLAVE OPERATORS
1.
Connect the high voltage power lines to the MASTER operator as described in 2.1.1
on the previous page. The master operator is the operator that has the circuit board
installed in it. The slave operator does not have a circuit board.
2.
The interface wiring between the two operators requires four (4) 16 AWG wires for
motor power and grounding, and three (3) 18 AWG wires for low voltage control.
Suggested wire colors for the high voltage lines are BLUE, RED and WHITE (all 16
AWG), for the low voltage control lines YELLOW, BROWN and ORANGE (all 18
AWG). The ground wire should be GREEN (16 AWG). In the slave operator, place a
jumper wire from terminal 19 to terminal 20. Note: DoorKing's master/slave wire
cable (P/N 2600-75X) contains all of the above wires.
3.
Connect BLUE and RED 16 AWG wires to the slave motor power terminal strip
(located at the top center of the 4502 circuit board in the master operator). Connect
the other ends of these wires to terminals 4 and 5 in the slave operator. It does not
matter which wire connects to which terminal.
4.
Connect the WHITE 16 AWG wire from terminal 2 in the master operator to terminal
2 in the slave operator.
5.
Connect the GREEN 16 AWG wire to the ground lug in the master operator and to
the ground lug in the slave operator.
6.
Connect the YELLOW 18 AWG wire from terminal 8 in the master operator to
terminal 8 in the slave operator.
7.
Connect the BROWN 18 AWG wire from terminal 10 in the master operator to
terminal 9 in the slave operator.
8.
Connect the ORANGE 18 AWG wire from terminal 19 in the master operator to
terminal 19 in the slave operator.

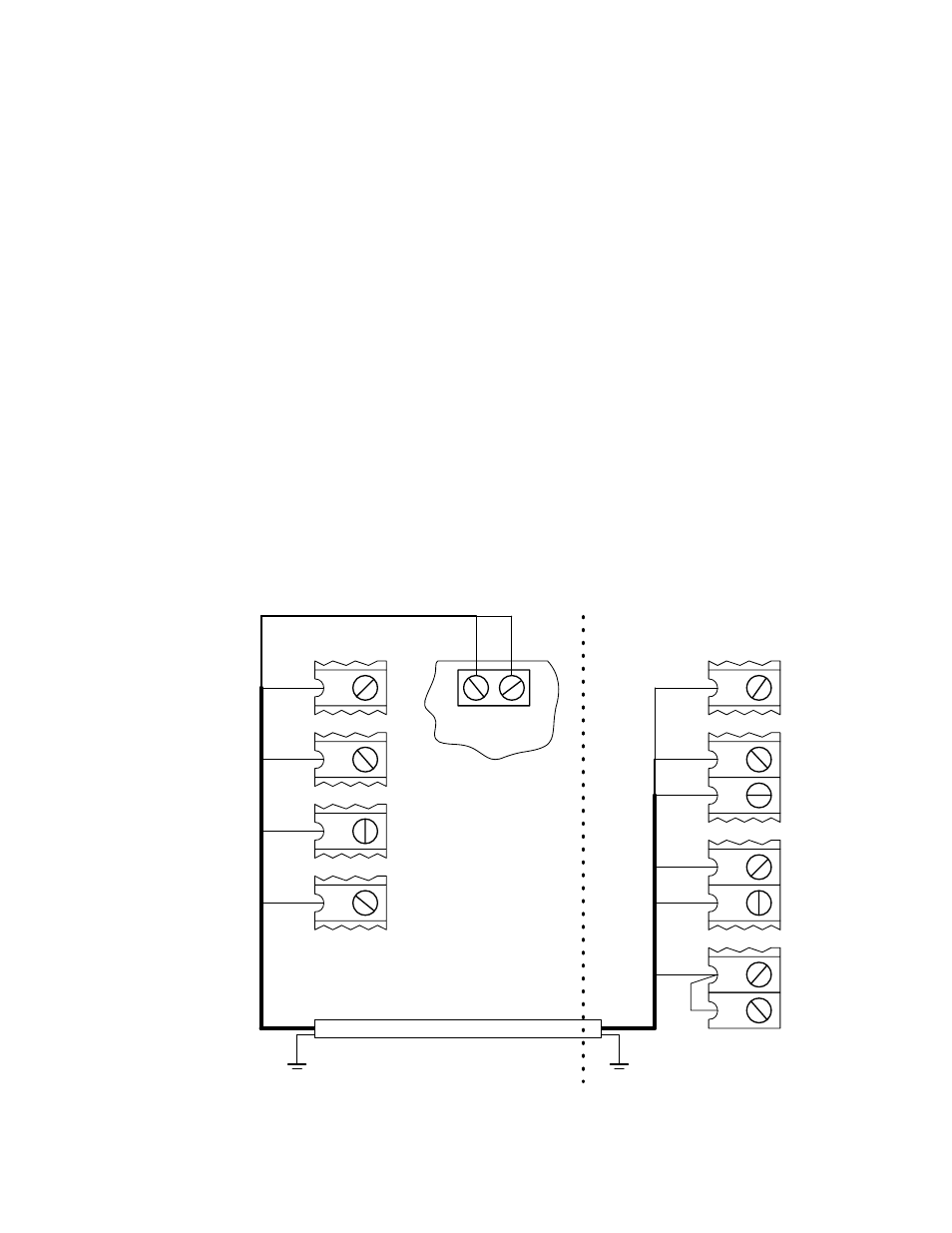

Figure 24
