Page 11
1.6.1 DETERMINE THE LOCATION OF THE OPERATOR
1. Determine where the gate-bracket will be attached to the gate. If the gate will be
opened greater than 90°, the gate bracket should be mounted no farther than 30
inches from the center of the hinge point.
2. Once the gate bracket has been attached to the gate, close the gate fully and mark a
point on the ground directly under the center of the mounting bracket. Label this
point A1 (Figure 19).
3. Swing the gate to the desired open position. This can be less than 90°, 90°, or
greater than 90° (max 120°). With the gate in the desired position, mark a second
point on the ground directly under the center of the gate bracket. Label this point A2
(Figure 20).

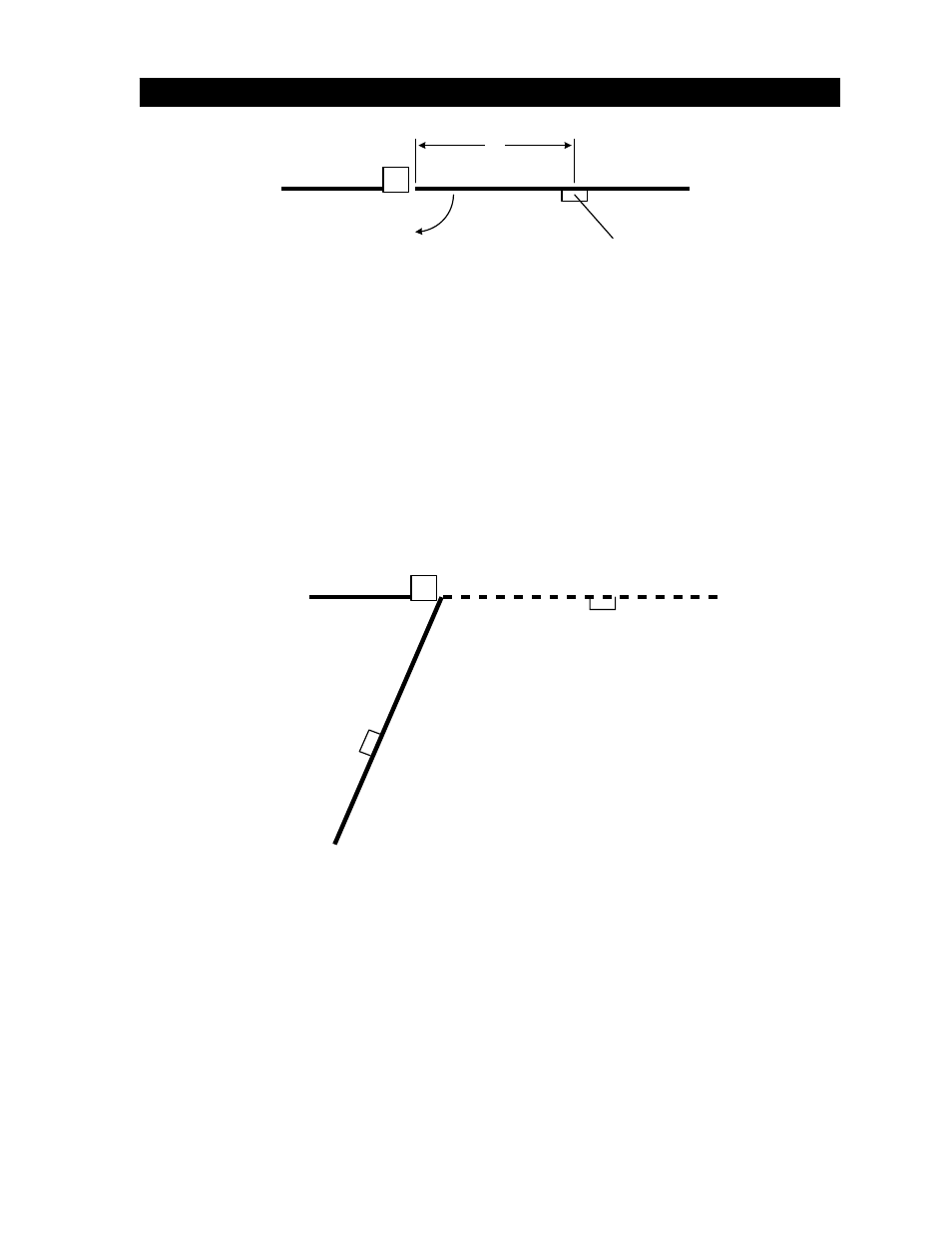

1.6 SETUP FOR GATES OPENING OTHER THAN 90°
FENCE GATE
A1
GATE BRACKET
X
FENCE
A1
A2
Figure 19
Figure 20
