1. Remove the operator from the shipping carton.
2. Remove the cover from the operator.
3. It is advisable to remove the conduit knockouts (as required) prior to mounting the
operator onto the operator base plate.
1.3.1 POST MOUNTED OPERATORS
1. Bolt the operator to the mounting plate using four (4) 3/8-16 x 3/4 bolts supplied.
These bolts secure the operator to the mounting plate at the locations that have nut
plates (Figure 9).
2. Use the remaining hardware, three (2) 3/8-16 x 1 1/4 bolts, three (2) 3/8 washers,
and three (2) 3/8-16 nuts to secure the operator to the mounting plate at the three
locations without nut plates.
3. Route conduits into the operator at this time.
1.3 MOUNTING THE OPERATOR

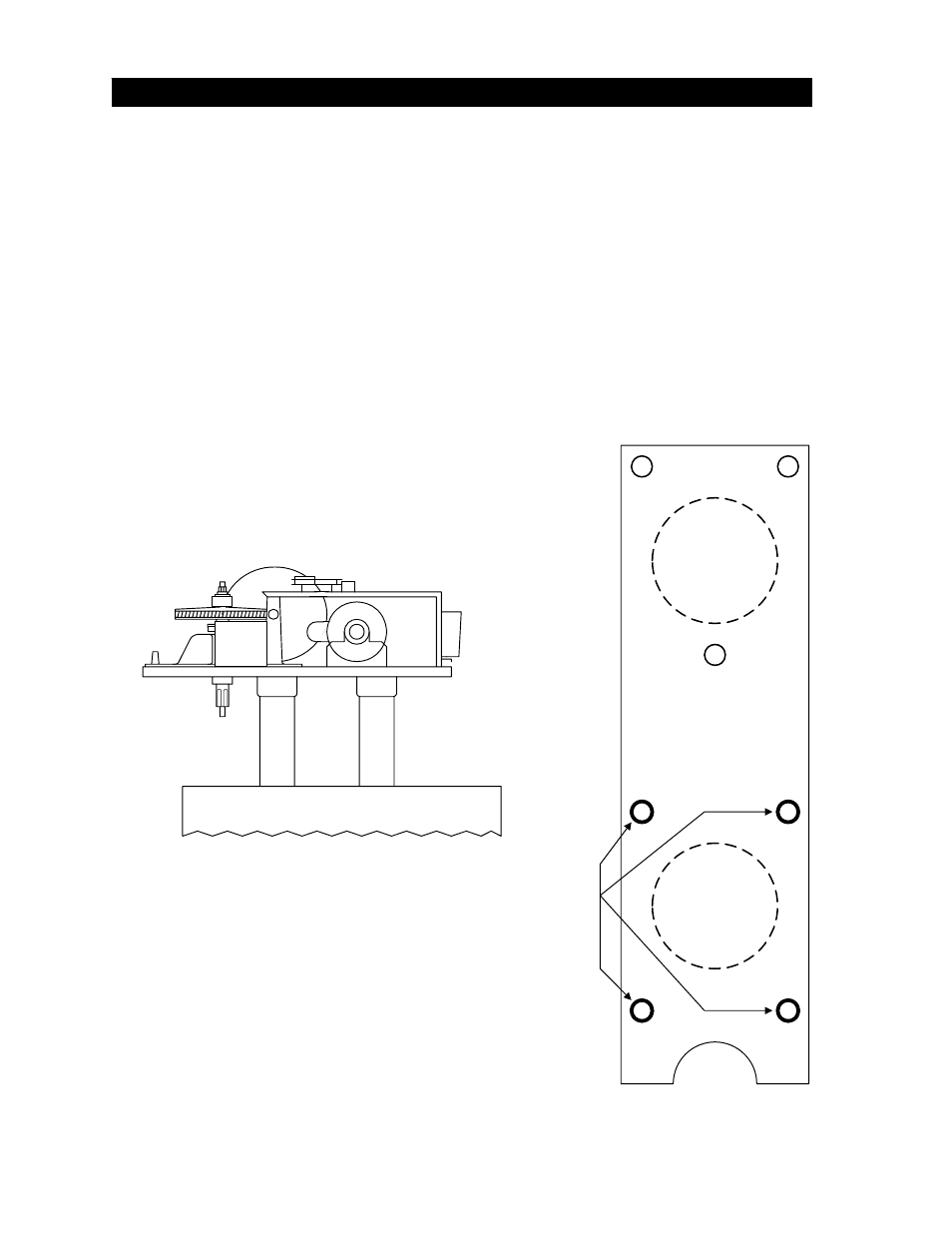

Nut Plate
Figure 8
Figure 9
