Local Switching
The Local Switching option (see
) allows subscriber to subscriber traffic when it is
enabled and both subscribers are on the same VLAN. The data is forwarded to the correct port
as determined by the MAC Learning Table. This option is applied on a per VC basis.

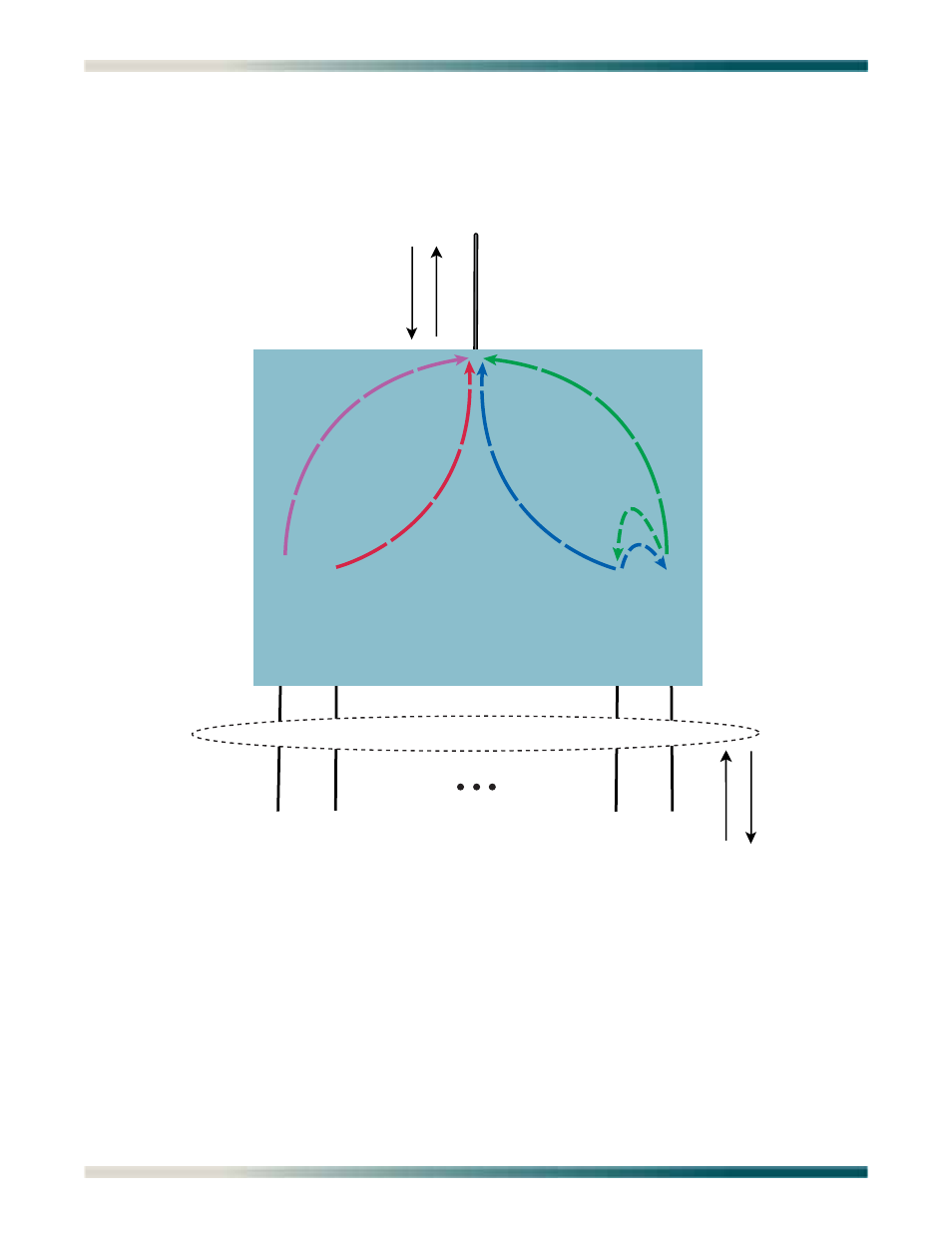

Figure 5-12. Local Switching Concept Diagram
Total Access 1240
Ethernet
Vlan 101 LS off
Ingr
ess
E
g
ress
Ingr
ess
E
g
ress
SHDSL ports 1-24
Po
rt
1
Po
rt
2
P
o
rt
23
P
o
rt
24
Vlan 101 LS off
Vlan 124 LS on
Vlan 124 LS on
