61179605L5-5B
5-1
Section 5
User Interface
INTRODUCTION
This section provides detailed information on the following:
•
•
•
•
“Logging on to the Total Access 1240”
•
•
•
•
SYSTEM MANAGEMENT
Total Access 1240 system management and provisioning is facilitated by a series of intuitive
menus that are accessible on a computer screen. The Total Access 1240 provides two methods
for management access:
•
•
Craft Interface
Connection to the Total Access 1240 system menus can be made through the DB-9 connector,
labeled
CRAFT
(see
,
on the front of the Total Access 1240. A DB-9 straight cable is
required.

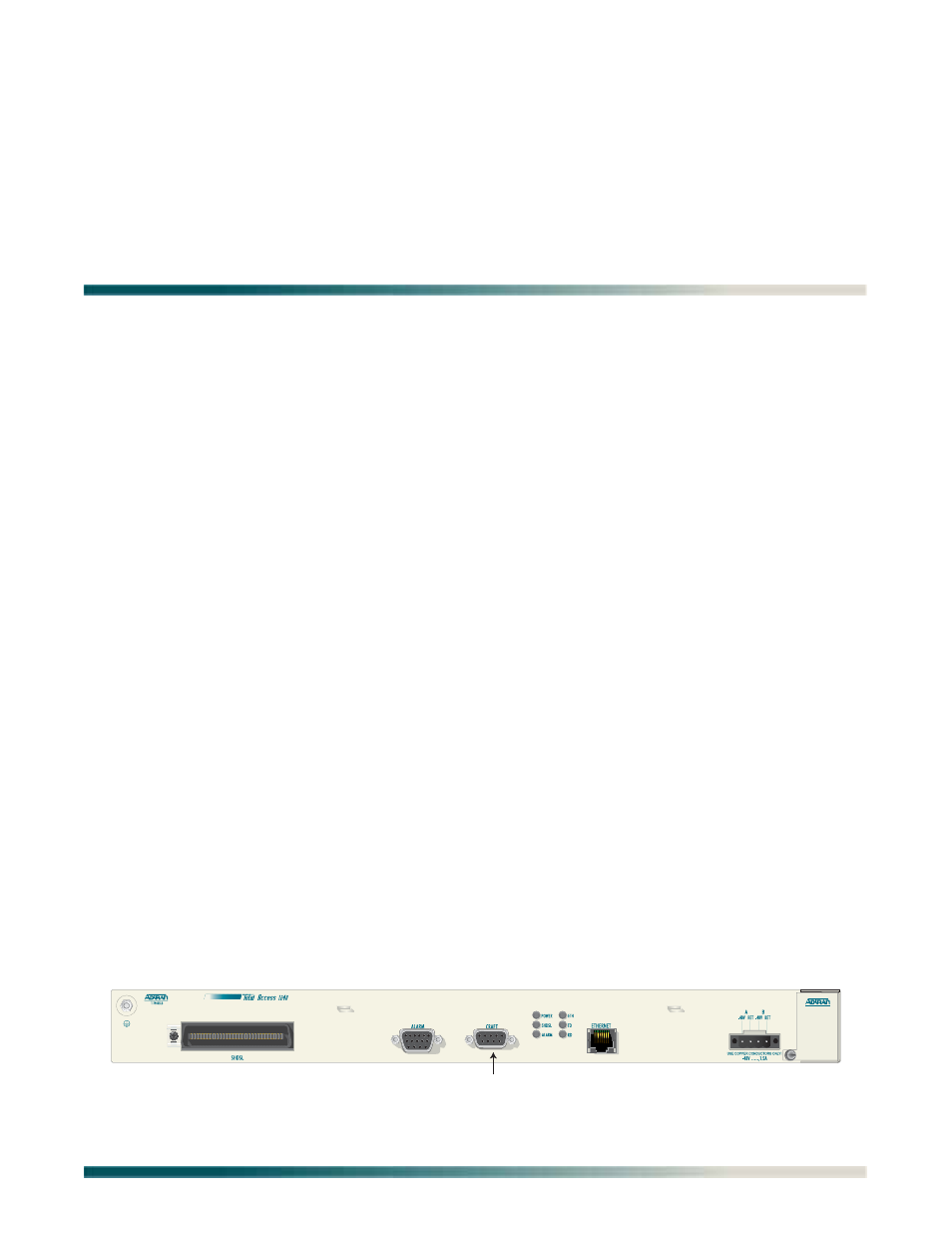

Figure 5-1. Craft Port Location
Craft Port
