GF Signet 7310 Switching Power Supplies - Manual (Page 2)

www.gfsignet.com

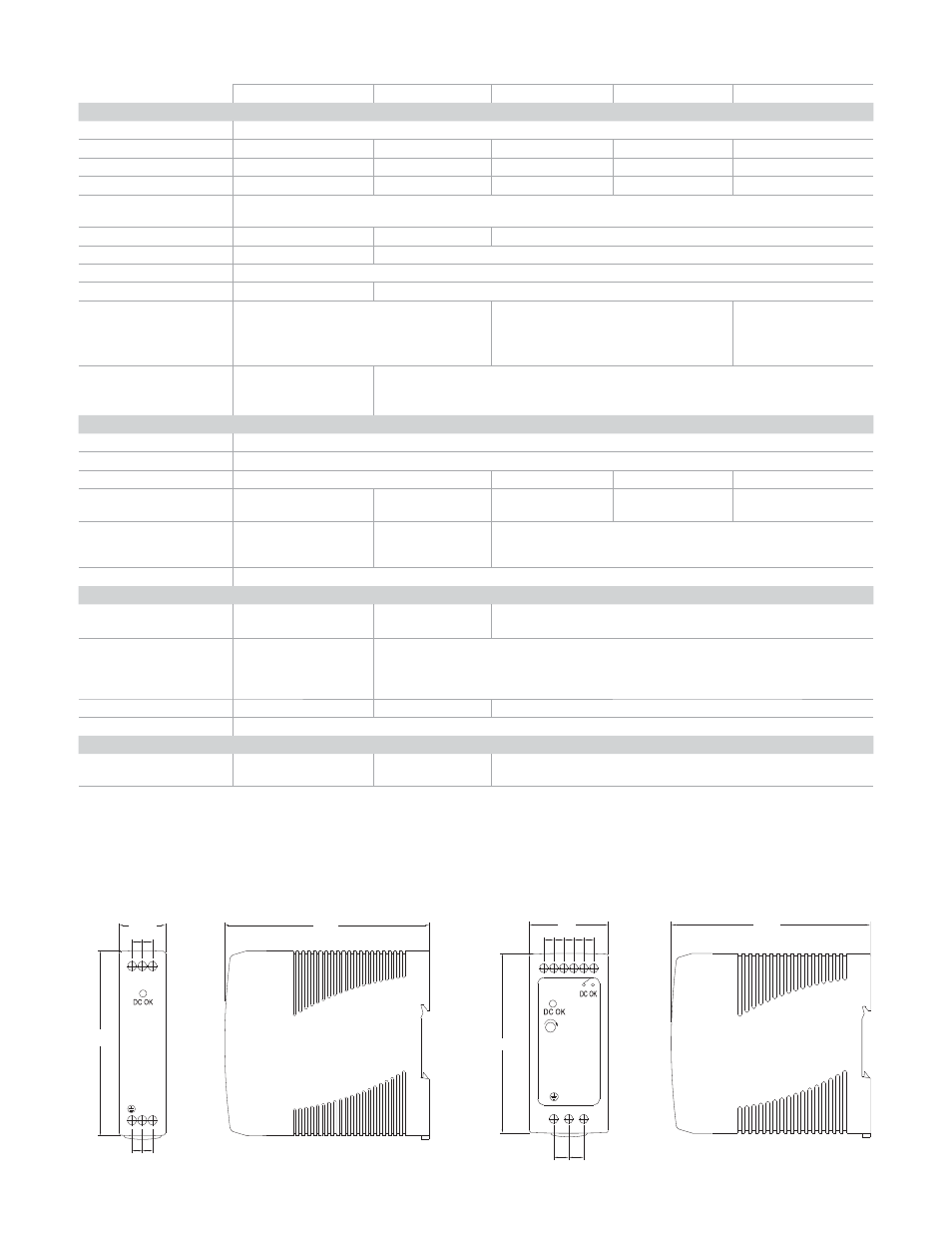

Dimensions
7310-1024
7310-2024
7310-4024
7310-6024
Specifications
7310-1024 7310-2024 7310-4024 7310-6024 7310-7024
Output
DC Voltage
24V
Rated Current 0.42A 1.0A 1.7A 2.5A 4.0A
Current Range 0 ~ 0.42A 0 ~ 1A 0 ~ 1.7A 0 ~ 2.5A 0 ~ 4A
Rated Power 10W 24W 40.8W 60W 96W
Ripple & Noise (max.)
Note.2
150mVp-p
Voltage Adj. Range N/A 21.6 ~ 26.4V 24 ~ 30V
Voltage Tolerance Note.3 ±2.0% ±1.0%
Line Regulation ±1.0%
Load Regulation ±2.0% ±1.0%
Setup, Rise Time Note.5
500ms, 30ms/230VAC,
1000ms, 30ms/115VAC at full load
500ms, 30ms/230VAC
500ms, 30ms/115VAC at full load
3000ms, 50ms/
230VAC 3000ms,
50ms/115VAC
at full load
Hold Up Time (Typ.) 120ms/230VAC,
25ms/115VAC at
full load
50ms/230VAC
20ms/115VAC at full load
Input
Voltage Range
85 ~ 264VAC, 120 ~ 370VDC
Frequency Range 47 ~ 63Hz
Efficiency (Typ.) 84% 88% 88% 86%
AC Current (Typ.) 0.33A/115VAC
0.21A/230VAC
0.55A/115VAC
0.35A/230VAC
1.1A/115VAC
0.7A/230VAC
1.8A/115VAC
1A/230VAC
1.3A/115VAC
0.8A/230VAC
Inrush Current (Typ.) Cold Start 35A/115VAC
70A/230VAC
Cold Start
20A/115VAC
40A/230VAC
Cold Start 30A/115VAC
60A/230VAC
Leakage Current < 1mA / 240VAC
Protection
Overload
Above 105% rated
output power
105 ~ 160% rated
output power
105 ~ 150% rated output power
Protection type Hiccup mode,
recovers automatically
after fault condition
is removed
Constant current limiting, recovers
automatically after fault condition is removed
Over Voltage 27.6 ~ 32.4V 27.6 ~ 32.4V 31.2 ~ 36V
Protection type Shut down o/p voltage, repower on to recover
Function
DC OK Active Signal
(max.)
18 ~ 27V / 20mA 18 ~ 27V / 20mA Relay contact rating(max.): 30V/1A resistive
Front View Side View Front View Side View
+
+V +V -V -V
N L
+V ADJ
5
7.5
100 40
90
7.5
5 5 55
+V -V DC
OK
N L
5 5
100 22.5
5 5
90
