4

Signet 515/2536 Rotor-X Flow Sensors

Specifi cations

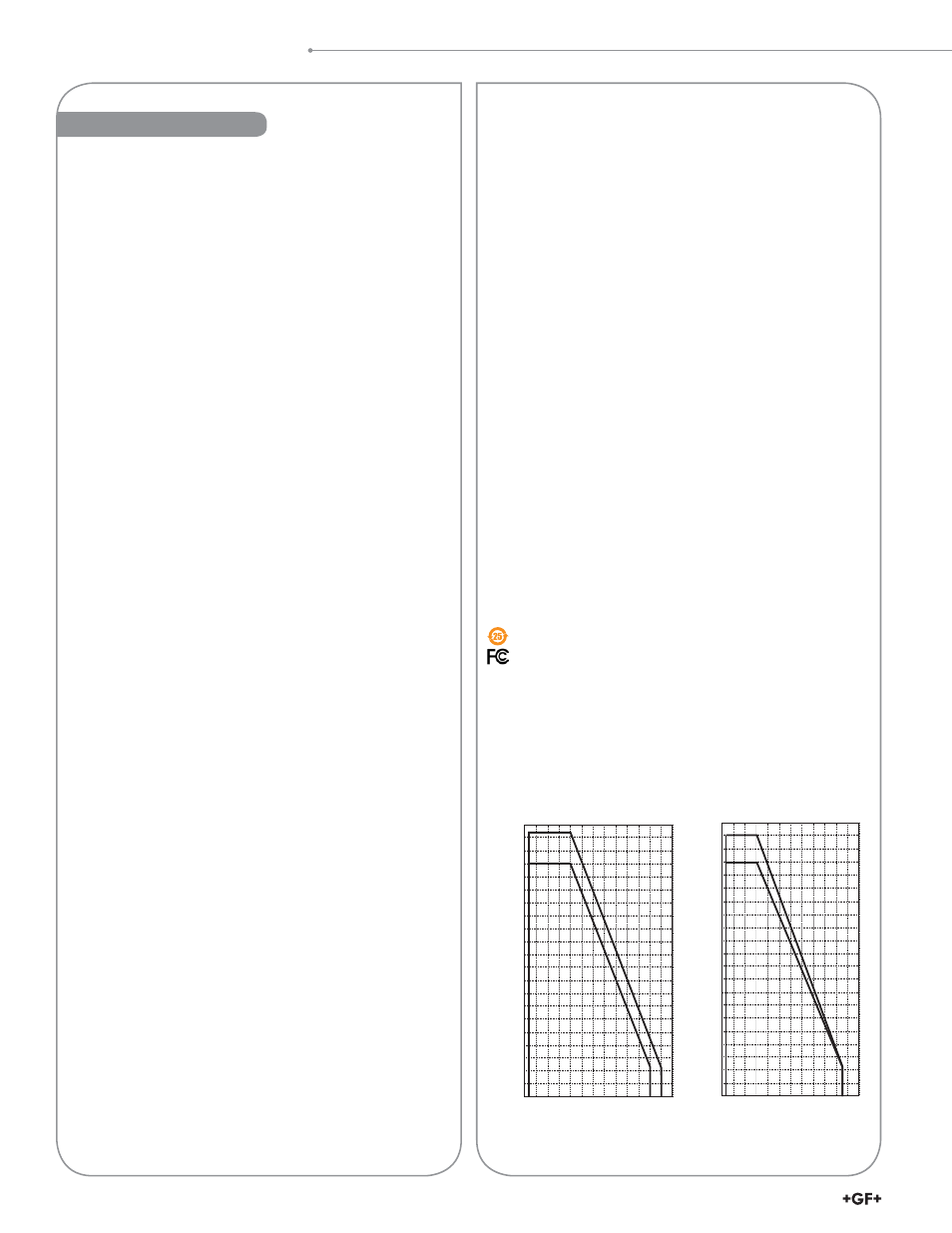

PVDF

Po

lypr

opyl

ene

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

160

170

180

190

200

210

.7

1.4

2.1

2.8

3.4

4.1

4.8

5.5

6.2

6.9

7.6

8.3

9.0

9.7

10.3

11.0

11.7

12.4

13.1

13.8

14.5

(bar)

(psi)

0

-20

0

20

40

60

80

100

°F

°C

-4

32

68

104

140

176

212

515 (8510) Sensor

PVDF

Po

lypr

opyl

ene

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

160

170

180

190

200

210

.7

1.4

2.1

2.8

3.4

4.1

4.8

5.5

6.2

6.9

7.6

8.3

9.0

9.7

10.3

11.0

11.7

12.4

13.1

13.8

14.5

(bar)

(psi)

0

-20

0

20

40

60

80

100

°F

°C

-4

32

68

104

140

176

212

2536 (8512) Sensor

Specifi cations

General

Flow Rate Range:
515 .................................... 0.3 to 6 m/s (1 to 20 ft/s)
2536 .................................. 0.1 to 6 m/s (0.3 to 20 ft/s)
Pipe Size Range ................... DN15 to DN900 (½ in. to 36 in.)

Cable Length ........................ 7.6 m (25 ft) standard

515 .................................... 60 m (200 ft) maximum

2536 .................................. 305 m (1000 ft) maximum

Cable type ............................ 2-conductor twisted pair w/

shield (22 AWG)

Minimum Reynolds Number .. 4500
Materials:
Cap Material ......................... Glass Filled Polypropylene

515: Red
2536: Blue

Wetted Materials:
Sensor Body ......................... Glass Filled Polypropylene

(black) or PVDF

O-Rings ................................ FPM (Std), EPR (EPDM) or

FFPM optional

Pin ........................................ Titanium, Hastelloy-C or PVDF;

optional Ceramic,
Tantalum, or Stainless Steel

Rotor ..................................... Black PVDF or Natural PVDF;

optional ETFE with or without
carbon fi ber reinforced PTFE
sleeve for rotor pin

Shipping Weight:
-X0 .................................... 0.454 kg (1 lb)

-X1 .................................... 0.476 kg (1.04 lbs)

-X2 .................................... 0.680 kg (1.50 lbs)

-X3 .................................... 0.794 kg (1.75 lbs)

-X4 .................................... 0.850 kg (1.87 lbs)

-X5 .................................... 1.0 kg (2.20 lbs)
3519 .................................. 1.3 kg (2.86 lbs)

Performance

Linearity ................................ ±1% of maximum range

@ 25 °C (77 °F)

Repeatability ......................... ±0.5% maximum range

@ 25 °C (77 °F)

Electrical

515 Sensor

Frequency............................. 19.7 Hz per m/s nominal

(6 Hz per ft/s)

Amplitude.............................. 3.3 V p/p per m/s nominal

(1V p/p per ft/s)

Source Impedance ............... 8 kΩ

2536 Sensor

Frequency............................. 49 Hz per m/s nominal

(15 Hz per ft/s nominal)

Supply Voltage...................... 5 to 24 VDC ±10% regulated
Supply Current...................... <1.5 mA @ 3.3 to 6 VDC

<20 mA @ 6 to 24 VDC

Output Type .......................... Open collector, sinking
Output Current ...................... 10 mA maximum

Environmental Requirements

Pressure/Temperature Ratings

Standard and Integral Sensors:
Polypropylene Body

........... 12.5 bar (180 psi) max.

@ 20 °C (68 °F)

515 .................................... 1.7 bar (25 psi) max.

@ 90 °C (194 °F)

2536 .................................. 1.7 bar (25 psi) max.

@ 85 °C (185 °F)

Operating Temperature ..... -18 °C to 66 °C (0 °F to 150 °F)

PVDF Body

.......................... 14 bar (200 psi) max.

@ 20 °C (68 °F)

515 .................................... 1.7 bar (25 psi) max.

@ 100 °C (212 °F)

2536 .................................. 1.7 bar (25 psi) max.

@ 85 °C (185 °F)

Operating Temperature ..... -18 °C to 100 °C (0 °F to 212 °F)

Wet-Tap Sensor:
Polypropylene Body

........... 7 bar @ 20 °C, 1.4 bar @ 66 °C

(100 psi @ 68 °F, 20 psi @ 150 °F)

Max Removal Rating......... 1.7 bar @ 22 °C (25 psi @ 72 °F)
Operating Temperature ..... -18 °C to 66 °C (0 °F to 150 °F)

Standards and Approvals

• CE (2536 Only)
• Manufactured under ISO 9001 for Quality,

ISO 14001 for Environmental Management and
OHSAS 18001 for Occupational Health and Safety.

• RoHS

Compliant

China RoHS (Go to www.gfsignet.com for details)

Declaration of Conformity according to FCC Part 15
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
