8644/phoenix - 29
S
YSTEM
D
ESCRIPTION

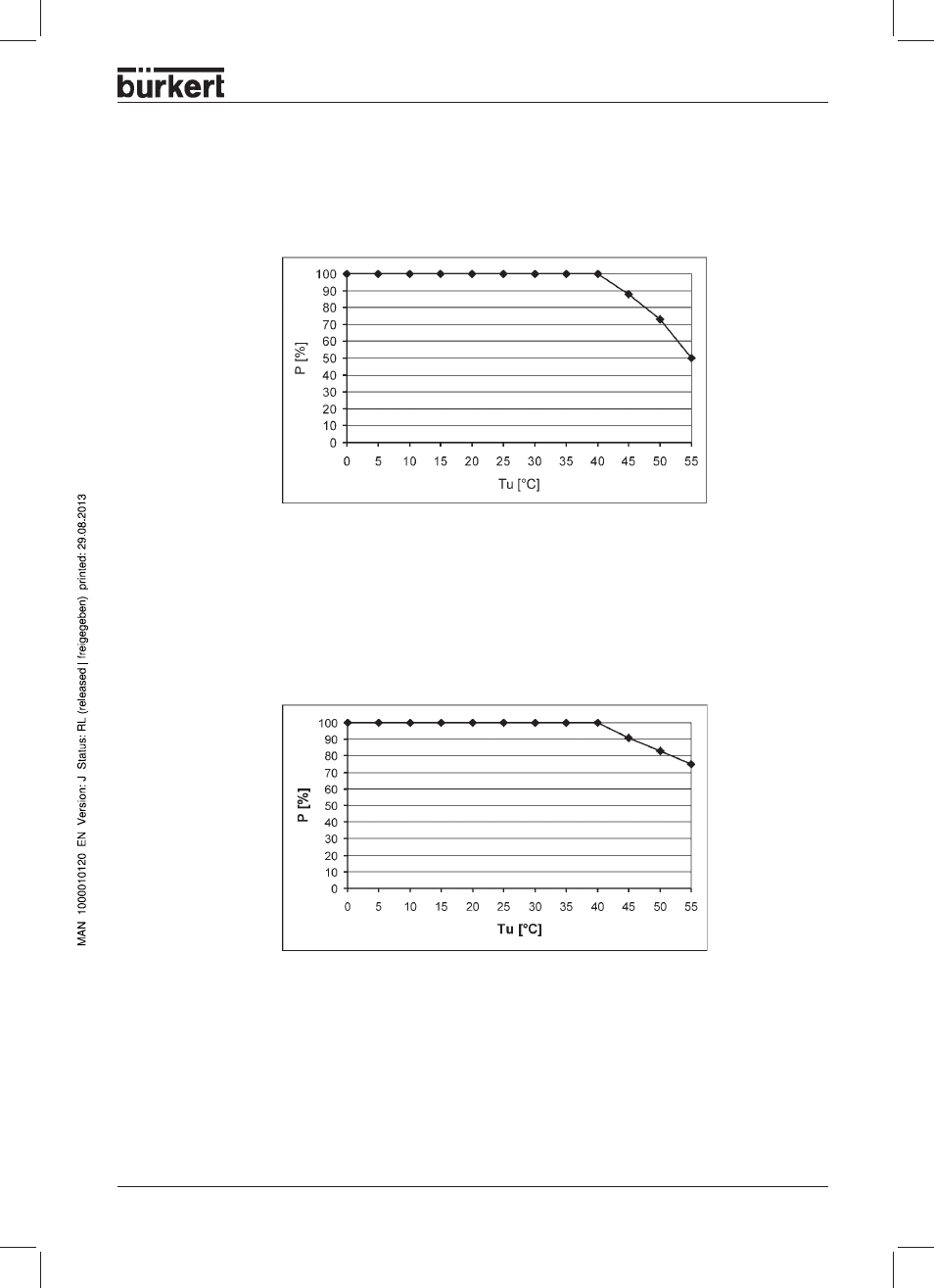

Derating of the logic power supply and the power supply of the analog terminals
•
At a current loading of the peripheral supply at the bus terminal of max. 8 A
•
At a current loading of the peripheral supply at the bus terminal of max. 4 A
P [%]
Loading capacity of the logic and analog power supplies in %
Tu [°C]
Ambient temperature in °C
P [%]
Loading capacity of the logic and analog power supplies in %
Tu [°C]
Ambient temperature in °C
