RS485 Configuration

The RS485 configuration window permits the selection of
communications baud rate and mode of the particular MFX
instrument in the network. Figure 4.9 shows the RS485
configuration screen.

x All MFX instruments on a single network must operate at the

same Baud rate—9600 baud is typical.

x Select the Mode of the MFX—either Master or Slave. Each

network may have one Master and as many as 126 Slaves.

PART 4 - SOFTWARE UTILITIES

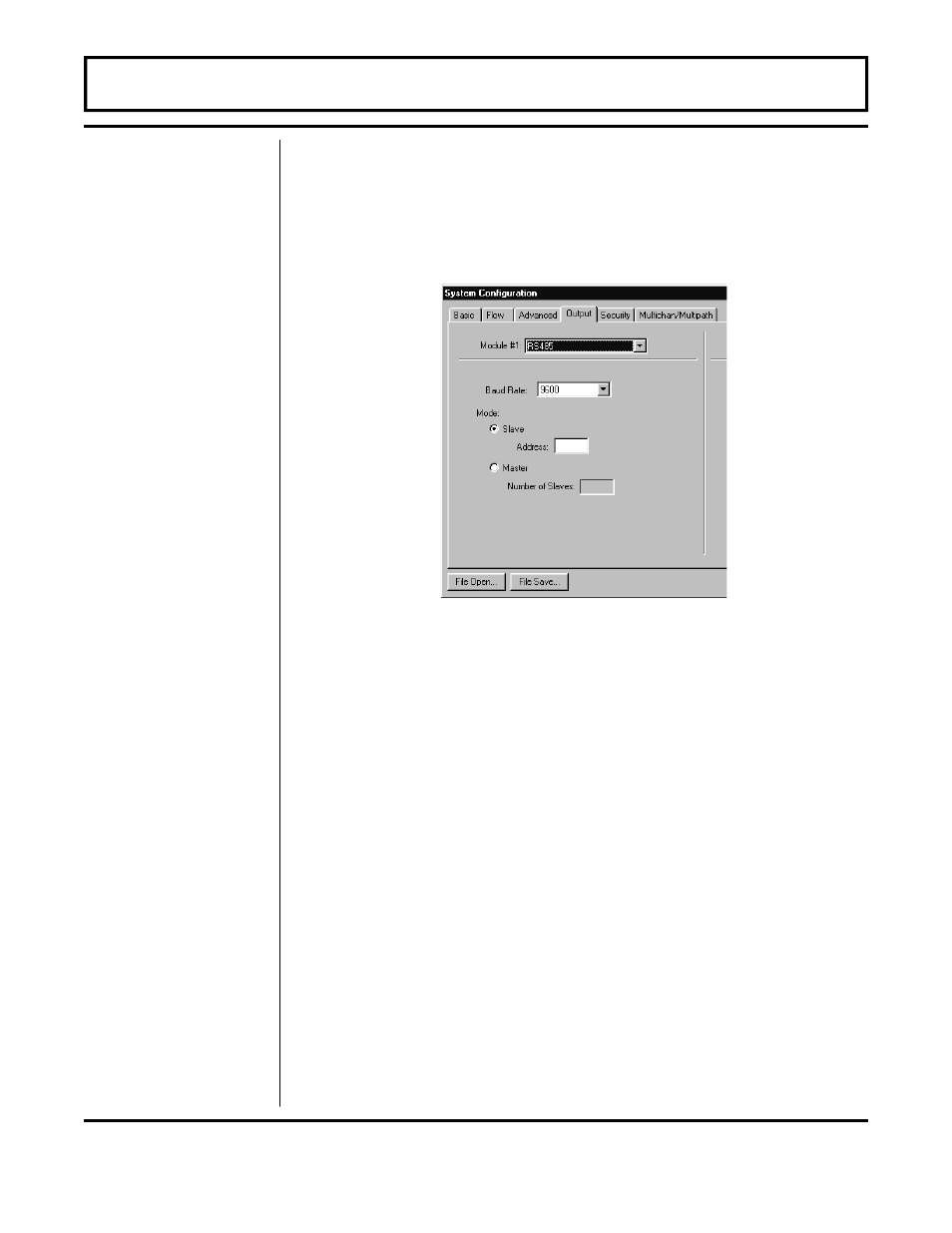

Figure 4.9

RS485 Configuration
