Rev. 01/11
-4.8- MFX
Relay Module Configuration
If the Dual Relay output has been installed into the MFX flow meter,
the screen shown in Figure 4.5 will appear in ULTRALINK™ at
the OUTPUT tab. Each relay can be configured separately for one
of four operations: Batch/Totalizer, Flow Rate, Signal Strength or Error.
x Batch/Total mode configures the relay to output a 50 mSec
pulse (contact changeover) each time the display totalizer
increments divided by the Multiplier. The Multiplier value must
be a whole, positive, numerical value.
For example, if the Totalizer Exponent is set to E0 (
1) and the
Relay Multiplier is set to 1, then the relay will pulse each time the
totalizer increments one count, or each single, whole
measurement unit totalized.
If the Totalizer Exponent is set to E2 (
100) and the Relay
Multiplier is set to 1, the relay will pulse each time the display
totalizer increments or once per 100 measurement units
totalized.
If the Totalizer Exponent is set to E0 (
1) and the Relay
Multiplier is set to 2, the relay will pulse once for every two
counts that the totalizer increments.
PART 4 - SOFTWARE UTILITIES

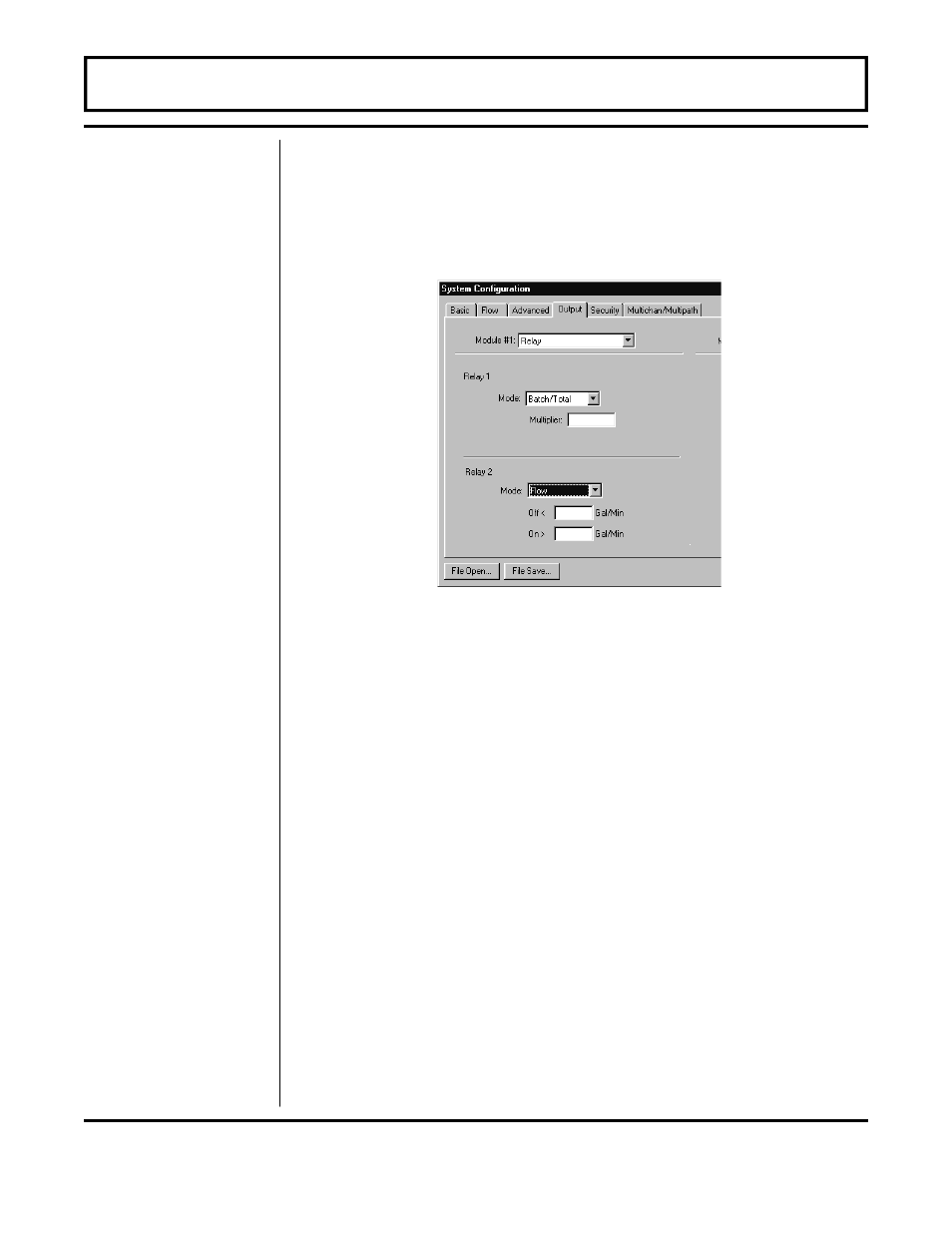

Figure 4.5
Dual Relay Configuration
