Rev. 01/11 -1.20- MFX
RS232C The RS232C Module will interface with the serial communication
ports of PCs, PLCs and SCADA systems that are used to monitor
flow rate information in piping systems. A proprietary digital
communications protocol is used for this communication. An
explanation of the command structure is detailed in the Appendix of
this manual. Flow rate, total, signal strength and temperature (if so
equipped) can be monitored over the digital communications module.
The RS232C Module may also be used to form a hardwire
connection to a PC that is running the ULTRALINK™ software
utility. Baud rates up to 19.2k are supported. Figure 1.14 illustrates
typical connections.
PART 1 - ISO-MOD

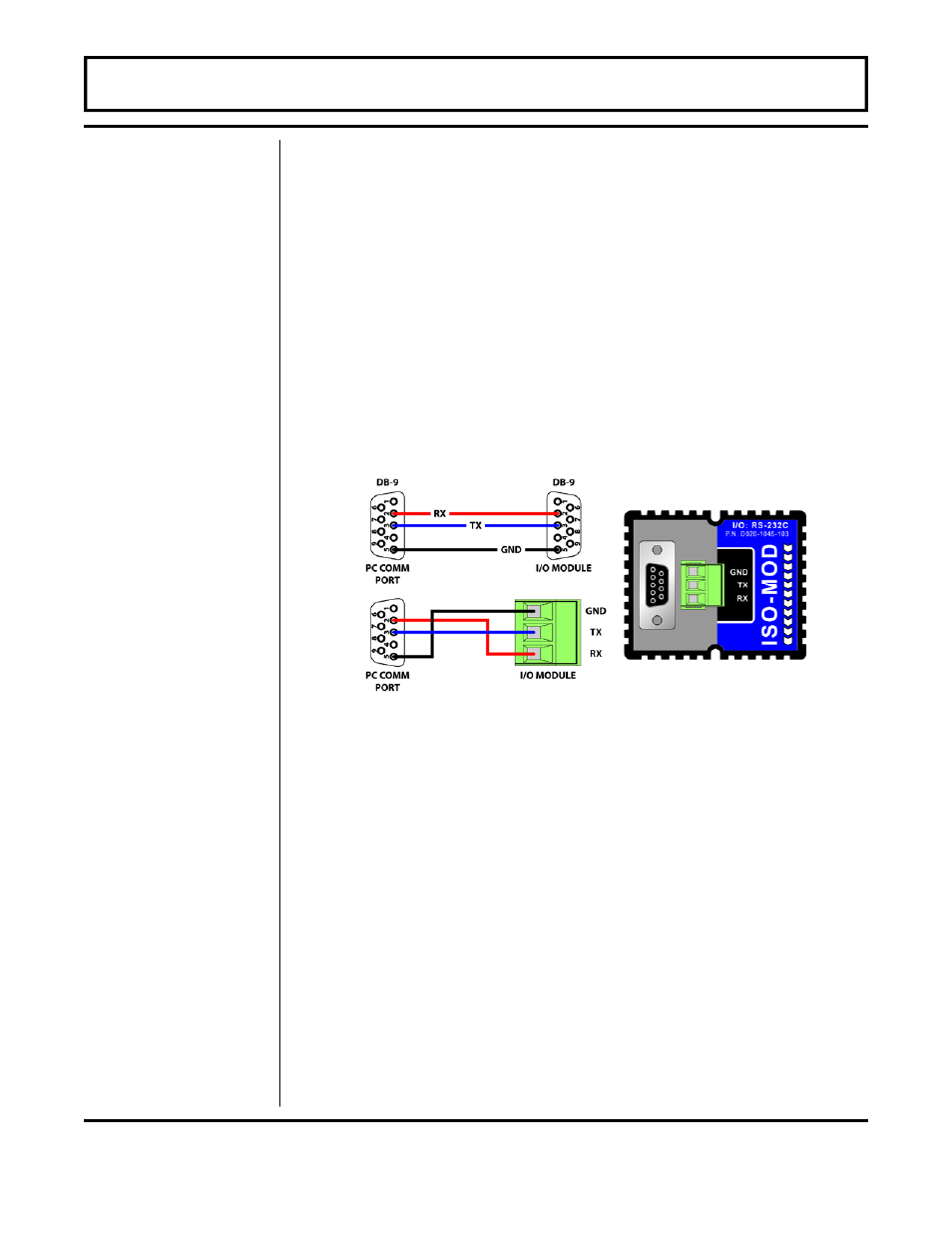

Figure 1.14
RS232 Connections
