S-Class
23
3.4.2
Test Pattern Ticket
The Test Pattern Ticket is a resident format that can be used to determine
general print quality and the condition of the printhead; see the examples
below.
With stock loaded, turn the printer ‘On’.
Press the PAUSE button to put the printer in the off-line mode.
Simultaneously press the F1 and F2 Buttons.

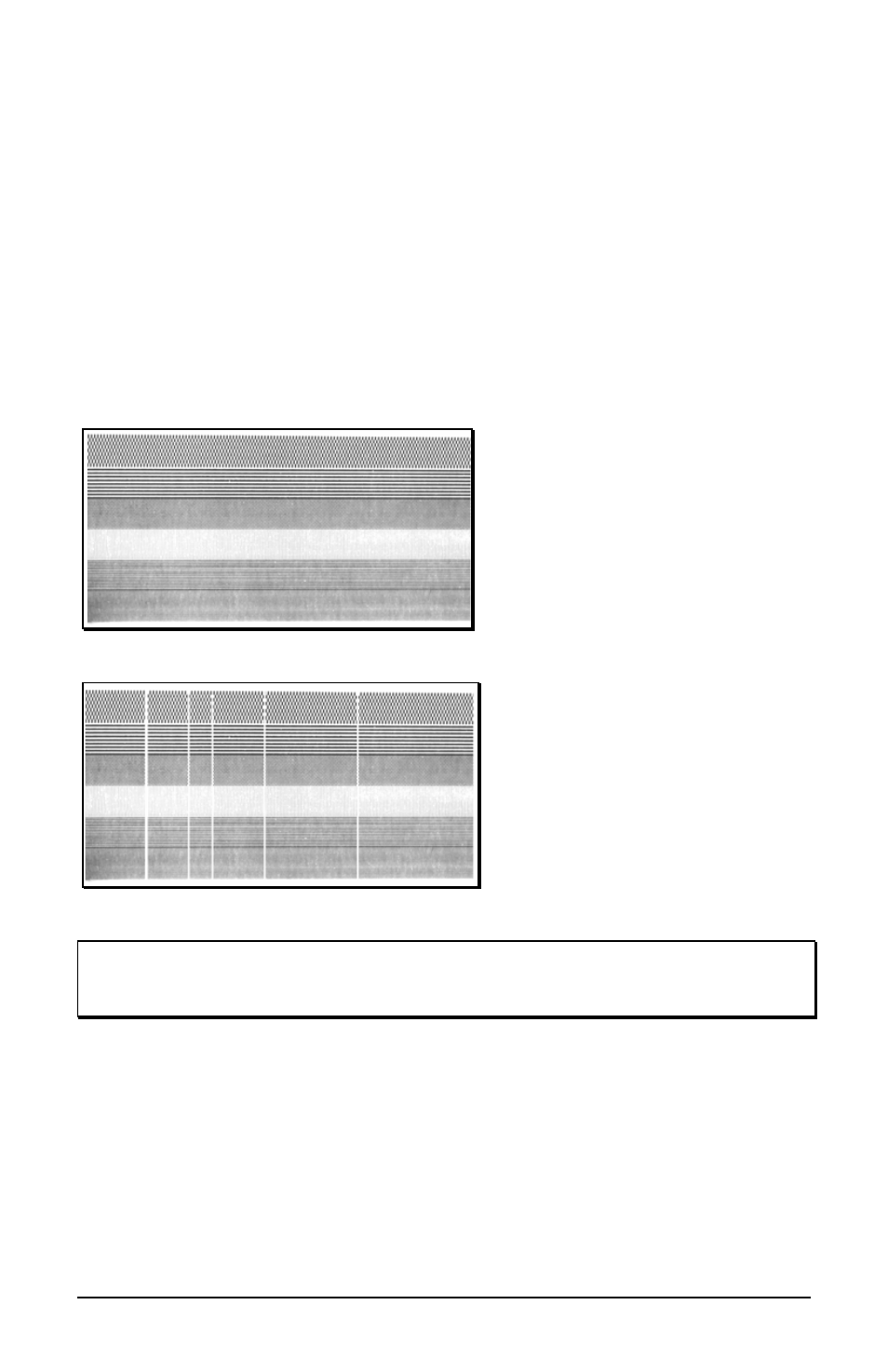

A “Good” Test Pattern Ticket:
Consistent patterns across the
width of the ticket indicate that
the printhead is operating
normally.
A “Faulty” Test Pattern Ticket:
Streaks (vertical lines of missing
print) indicate a dirty or faulty
printhead. See Section 4.4.1 for
cleaning instructions.
Note: The Test Pattern Ticket is generated at the current Darkness and
Speed settings. Adjust these accordingly or use a ticket format
generated from the host for final print quality assessments.
