8 S-Class

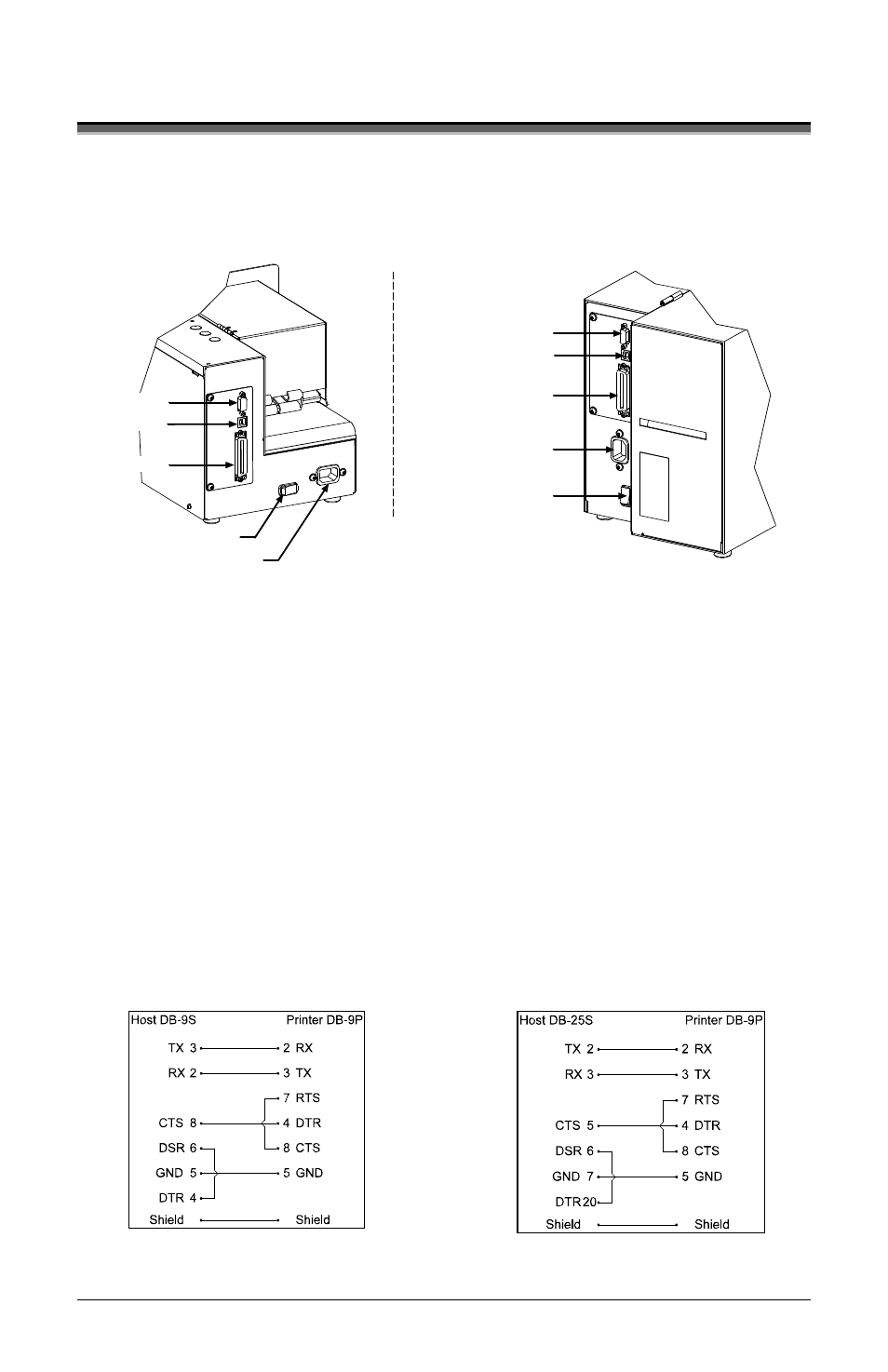

3.1 Interfacing
The printer can be connected to the host via the parallel, USB, or serial, The
printer will automatically connect to the first port that delivers valid data. Once
established, the printer’s power must be cycled ‘Off’ and ‘On’ to change an
interface connection.
AC Power Connector
Serial Port
Parallel Port
Power On/Off Switch
USB Port
AC Power Connector
Power On/Off Switch
Serial Port
Parallel Port
USB Port

The Parallel Connection needs a Centronics IEEE 1284 cable with a 36-
pin male connector for unidirectional (forward channel) communications,
or an IEEE 1284 Compliant cable for bi-directional communications
(forward and reverse channels). Also, for bi-directional communications
your host must have supporting software. See Section 5 for more
information.

The USB Connection needs a USB cable and is supported in Windows 95
and greater operating systems. Depending upon the operating system of
your host computer, installation requirements may differ slightly.

The Serial Connection needs a serial interface cable with specific pin-
outs for proper communications (part numbers and pin-outs are given,
below; contact your reseller to order). The interface supports RS-232C
communications via a DB-9 connector. Serial port settings are menu-
selectable and must match your host’s serial port settings; see Section 4.
Part # 32-2300-01 Part # 32-2301-01
