Saving Parameter by activated Scanner
((only necessary when firmware of Allen Bradley scanner is lower 4.001)

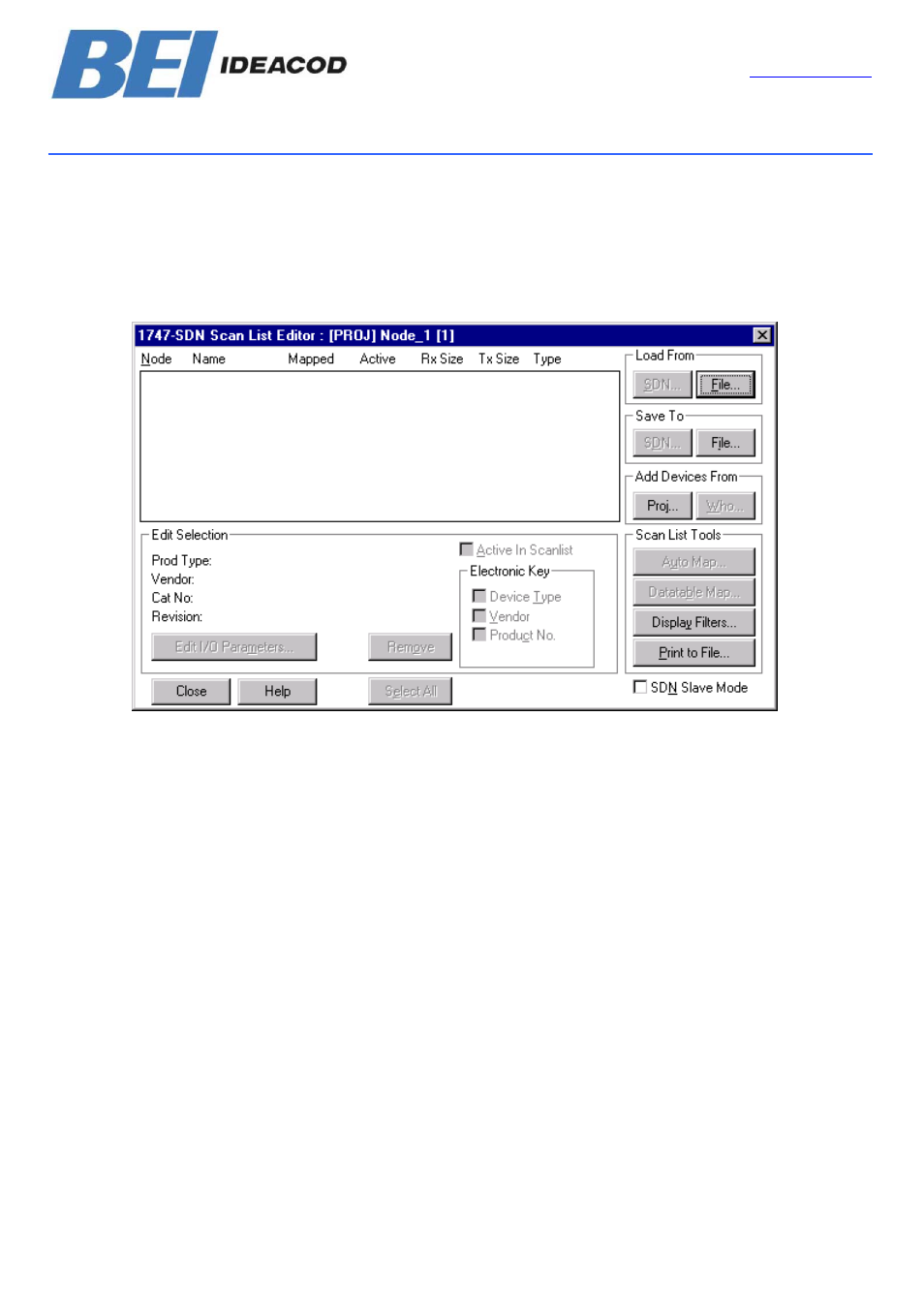

Picture 7 Scanner Mask
following described steps are not necessary
when the firmware of the AB scanner is 4.001
or higher. A update of the scanner is very
easy to execute. Please contact AB for further
information. When the parameter should be
transmitted from the DeviceNet Manager to
the encoder via the button SAVE to DEVICE,
the entry Active In Scanlist must be
deactivated. The mapped process values
could be placed further. After configuration
of parameters the encoder could be set
active in the scanlist again. If there are only
encoders mentioned in the scanlist you could
alternately select all devices with SELECT ALL
and set then the state Active in Scanlist.
Another way is to select each encoder with
the mouse pointer.
If you don’t follow the description, the error
message - ‘Target device did not respond to
connection based request.’ - is possible from
DeviceNet manager and also in the scanner
display.
Page 22 UME-OCD-D2 Version 05/04
