60
To cancel, select Cancel.
Sync Output
Note: Sync output is not available for noise and DC waveforms.
The rear panel has a Sync Out BNC terminal available to provide a synchronization output
signal. This output can be enabled and can be setup to provide a sync signal that correlates
with channel 1 or channel 2.

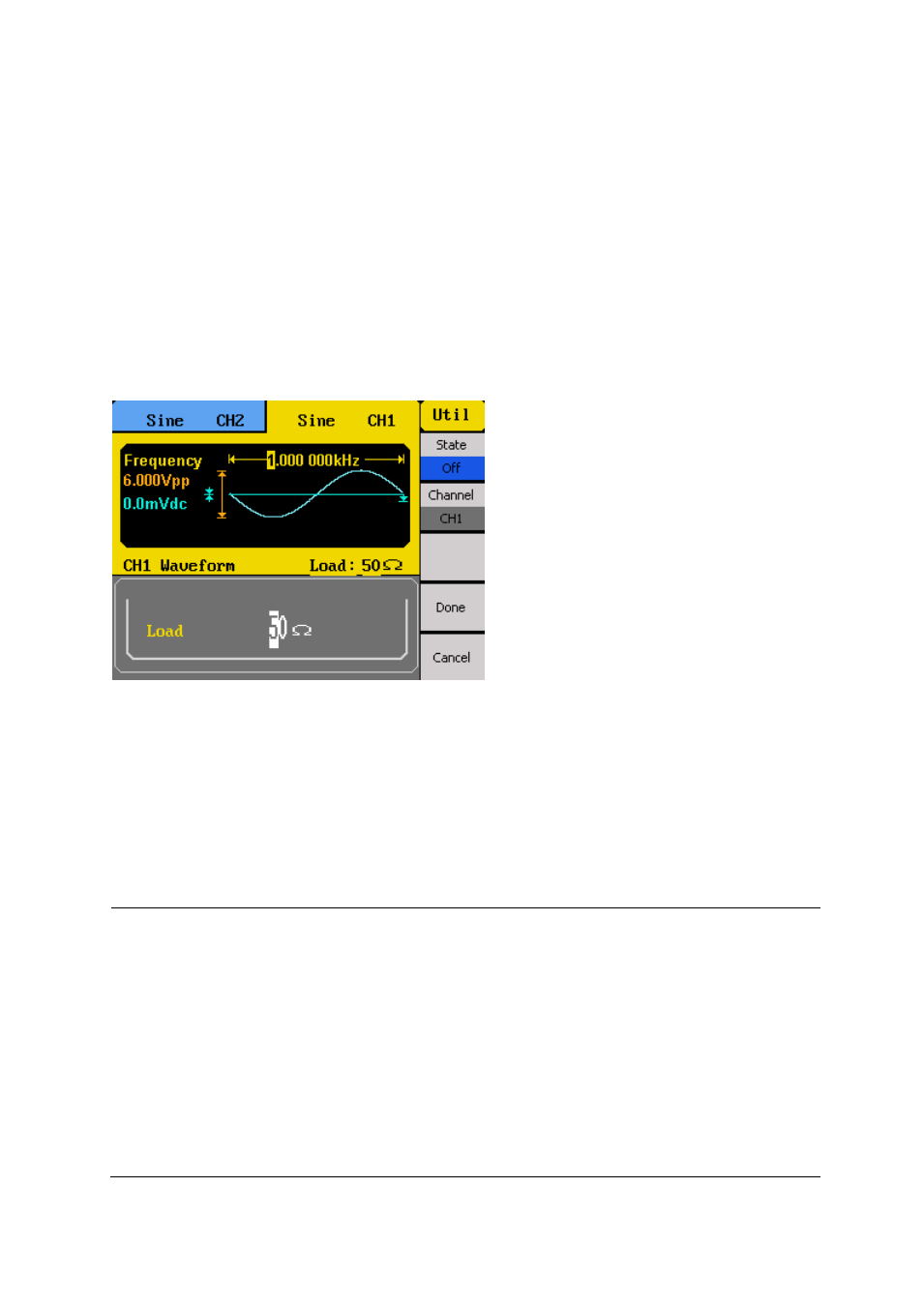

To set up, press the Sync option from the utility menu.
Under Channel, use the corresponding menu function key to select CH1 or CH2. This will
select the channel the output signal will be synchronized with.
To enable the sync output, select On for the State option.
To disable the sync output, select Off for the State option.
When finished, select Done. To cancel, select Cancel.
Note:
• When waveform is Inverted, the corresponding sync signal does not invert.
• For non-modulated waveform, the sync output reference is the carrier.
• For internal modulating AM, FM, and PM, the sync output reference is the
modulated signal (not the carrier).
• For ASK and FSK, the sync output reference is the keying frequency.
• When sweep is enabled, the sync output becomes TTL level high at the start of
the sweep, and the sync frequency will be the same as the specified sweet time.
• When burst is enabled, the sync output will be TTL level high at the start of the
burst.
• For external gated burst, the sync output follows the external gated signal.
