23
Configure Frequency
Note: This section does not apply for noise waveform.
Follow the steps below to configure the frequency or period of the output. The adjustable
frequency range is different for each model and for each type of waveforms. See the
specification section for the adjustable ranges.
1. After selecting the waveform shape, there will be a Freq/Period menu option. Press
the corresponding menu function key to toggle between selecting frequency or the
period to adjust.
2. The cursor position will now highlight the first digit of the frequency parameter
display.

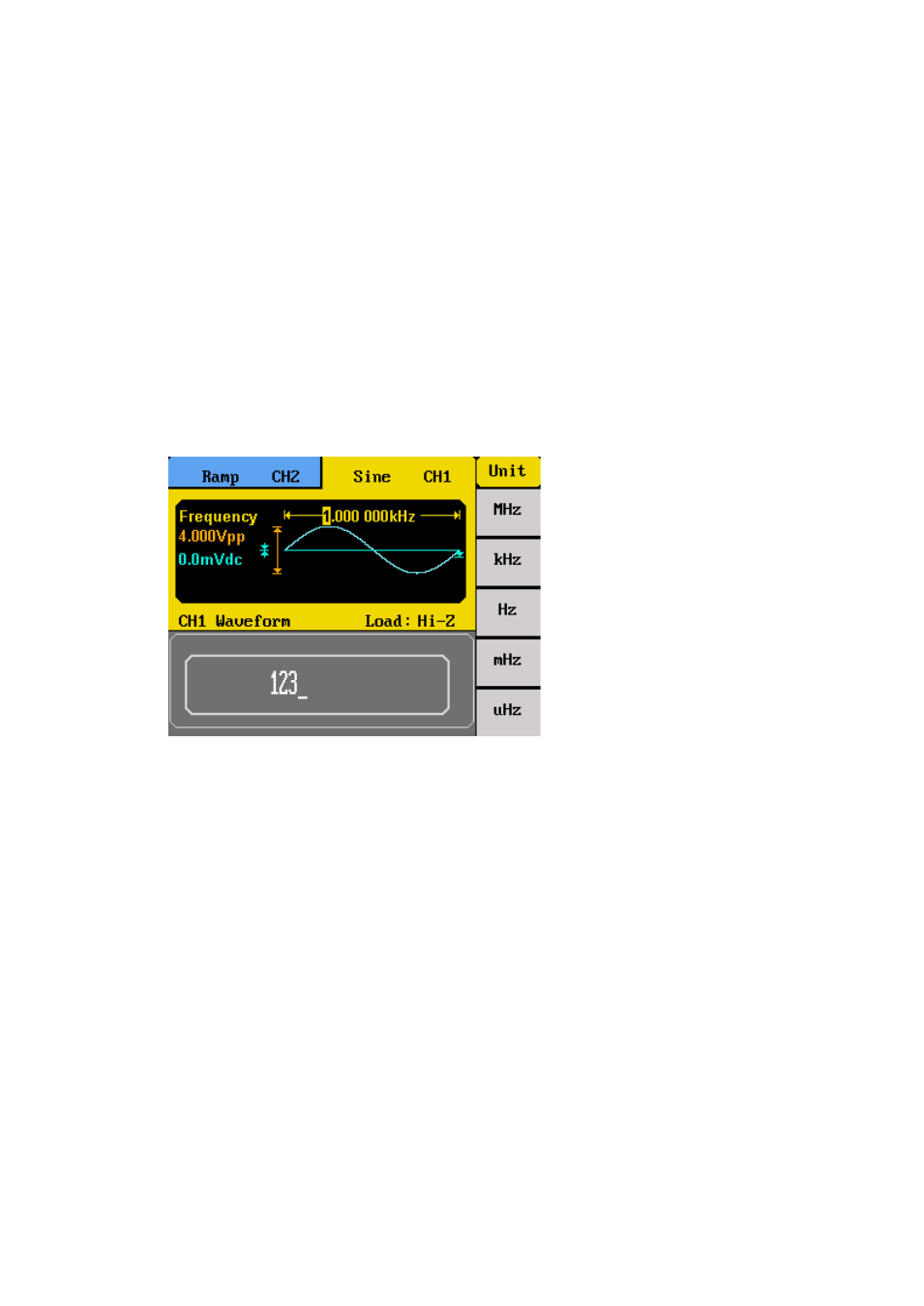

3. Use the rotary knob or the numeric keypad to change the frequency. If numeric
keypad is used, the below screen will display:
After entering the numeric value, use the menu function keys to select the unit to
apply for the frequency setting. Available units are: MHz, kHz, Hz, mHz, uHz.
Configure Amplitude
Note: This section does not apply for noise waveform.
Follow the steps below to configure the amplitude of the output. The adjustable amplitude
range for Channel 1 is 2 mVpp – 10 Vpp into 50 Ω, or 4 mVpp – 20 Vpp into HighZ. For
Channel 2, it is 2 mVpp – 3 Vpp into 50 Ω, or 4 mVpp – 6 Vpp into HighZ.
1. From the menu, select Ampl.
2. The cursor position will now highlight the first digit of the amplitude parameter
display.
3. Use the rotary knob or the numeric keypad to change the amplitude. If numeric
keypad is used, the below screen will display:
