The B&K Precision model 4005DDS is a versatile 5 MHz DDS (direct digital
synthesis) function generator with a 4-digit display. The instrument generates
sinusoidal, triangular, and square waveforms over the 1 Hz to 5 MHz range.
The output voltage can be varied from 0 to 10 Vp-p into 50 ohms or to 20
Vp-p into open circuit. A continuously variable DC offset allows the output to
be injected directly into circuits at the correct bias level. These features make
the 4005DDS great for education and other applications that need basic
waveform generation.

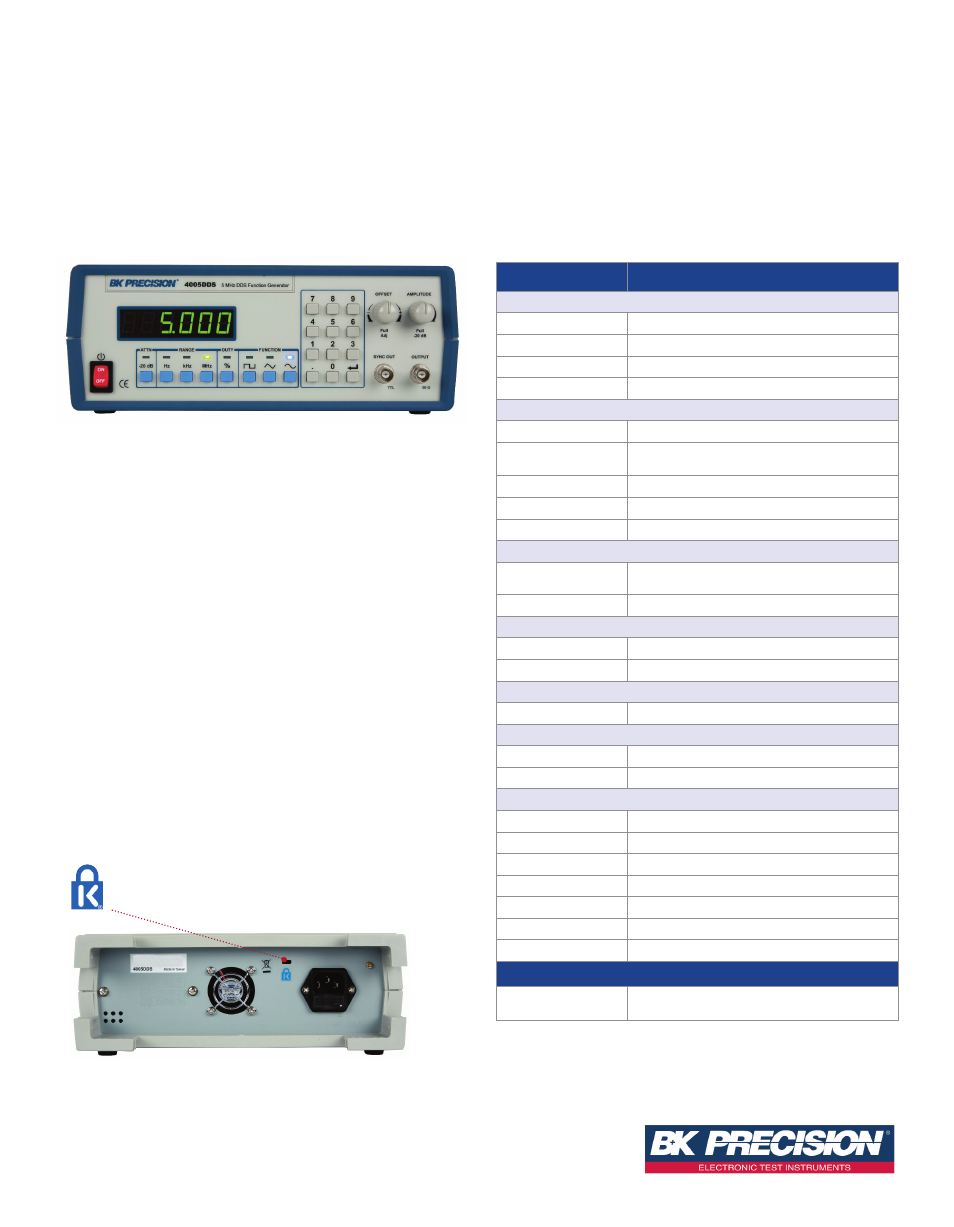

Kensington security slot helps secure your function
generator and prevents theft.
Features and Benefits
■ Frequency is selectable from 1 Hz to 5 MHz
■ Sine, square, or triangle waveform output
■ Direct digital synthesis (DDS) architecture
■ Bright, easy-to-read LED display
■ Number pad for quick input of frequency
■ Front panel push button and pull knob can attenuate output
by up to 40 dB
5 MHz DDS Function Generator
Model 4005DDS
Data Sheet
w w w.bk prec ision.c om Technical data subject to change
© B&K Precision Corp. 2014
v042114
Model 4005DDS
Frequency Characteristics
Waveforms Sine, Square, Triangle
Range 1 Hz to 5 MHz
Resolution 4 digits or 1 Hz
Accuracy 0.02% (200 ppm)*
Output Characteristics
Impedance 50 Ω± 2%
Amplitude Range
Variable control from 20 mVpp to 20 Vpp (open circuit);
10 mVpp to 10 Vpp (into 50 Ω)
Attenuation -20 dB ± 2%, -40 dB ± 2%
DC Offset Variable ±10 V (open circuit); ±5 V (into 50 Ω)
Duty Cycle Adjustable 20% - 80% to 3 MHz for square
Sine Wave
Harmonic Distortion
-50 dBc, DC to 20 kHz
-30 dBc, 20 kHz to 5 MHz
Flatness ± 0.3 dB to 1 MHz, ± 1 dB to 5 MHz
Square Wave
Symmetry ± 2% to 100 kHz, ± 5% to 5 MHz
Rise Time ≤ 35 ns
Triangle Wave
Linearity ≥ 98% to 100 kHz, ≥ 95% to 5 MHz
SYNC Output
Level ≥ 3 V
Rise Time ≤ 25 ns
General
AC Input 115/230 VAC, 50/60 Hz
Operating Temperature 32 °F to 104 °F (0 °C to 40 °C)
Humidity 10% - 80% R.H.
Storage Temperature -4 °F to 158 °F (-20 °C to 70 °C)
Storage Humidity 0% - 90% R.H.
Dimensions (W x H x D) 11” x 4” x 11.7” (279.4 x 101.6 x 297.2 mm)
Weight 5.05 lbs (2.3 kg)
One-Year Warranty
Included Accessories
Instruction manual, power cord, BNC to BNC cable,
BNC to alligator clips
Note: All specifications apply to the unit after a temperature stabilization time of 15 minutes.
Specifications and information are subject to change without notice.
*Applies to frequencies ≥ 1 kHz.
