28

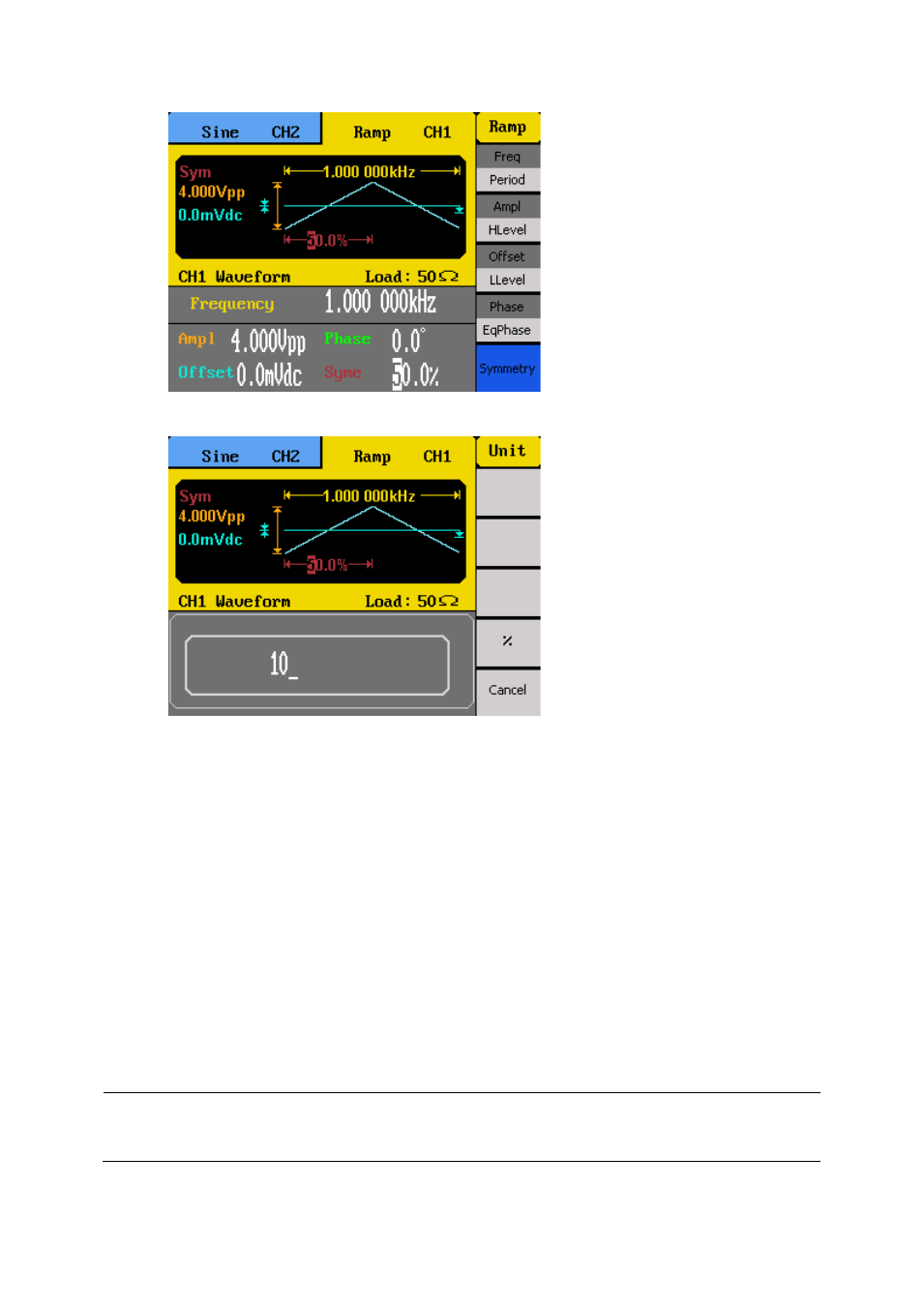

4. Use the rotary knob or the numeric keypad to change the symmetry. If numeric
keypad is used, the below screen will display:
After entering the numeric value, use the menu function keys to select the percent
(%) unit to apply for the symmetry setting.
Configure Pulse Waveform
Note: This section applies to pulse waveform only.
Pulse Width and Pulse Duty Cycle
The pulse width and duty cycle parameters are related and both control the length of the
high level of the pulse. Users have the option to specify the pulse width in units of seconds
or specify duty cycle as a percentage.
Note: The instrument allows for adjusting pulse width at a minimum of 1 ns, however its
actual minimum resolution is 8 ns. Therefore, the pulse width change can be
observed in increments of 8 ns.
