1. Connect the USB flash drive to the front panel USB port, and a message will appear

on the display after a second “A USB drive has been detected.”

2. Press the Store/Recall button and select Folder under Browser and select USB

Device (0:).

3. From the menu, change FileType to Data. Then, change Browser to File.

4. Use the up and down arrow keys to move the selection cursor and select the .csv file

from the USB flash drive that contains the arbitrary waveform data saved from

EasyWave software.

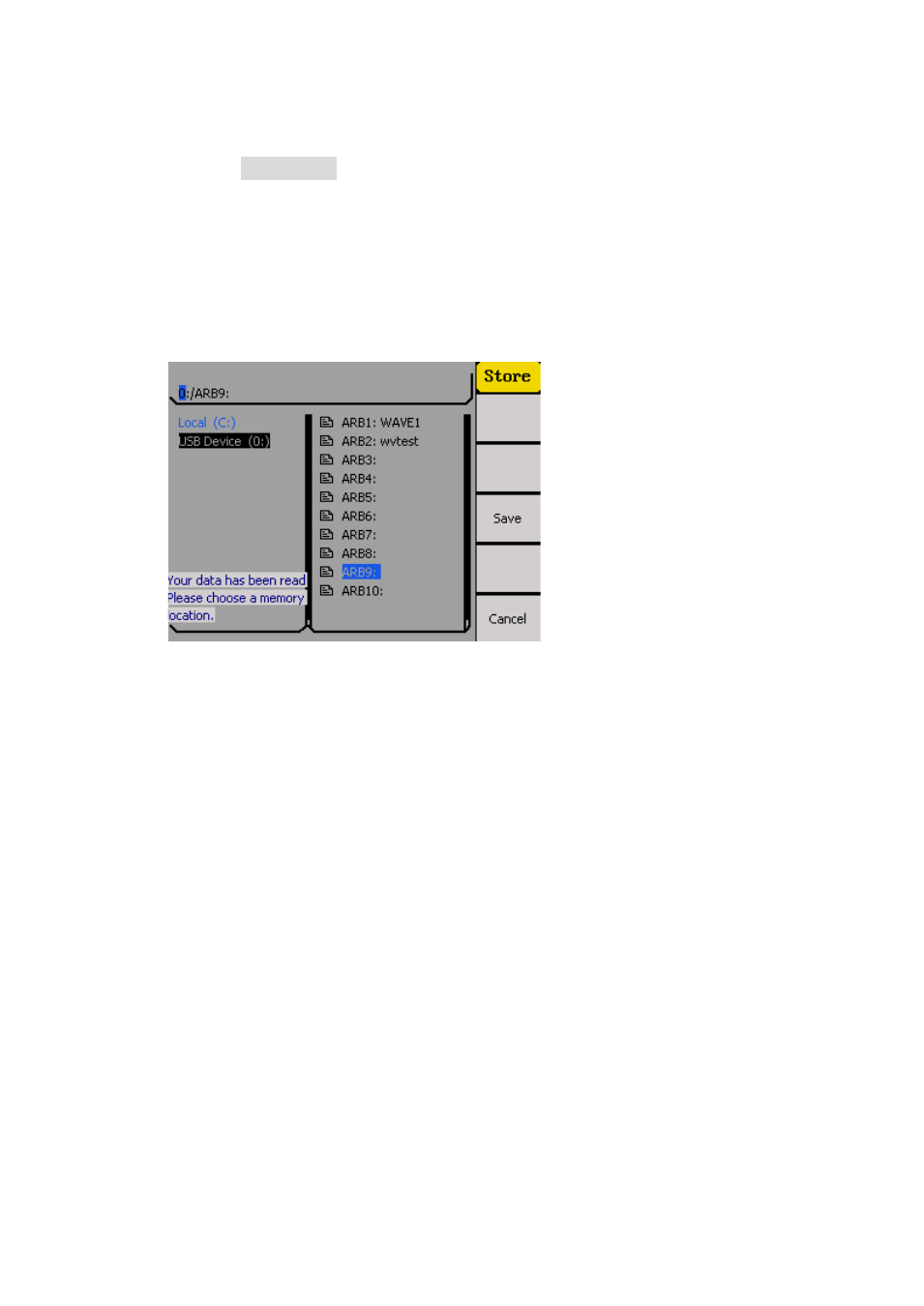

5. Select the Recall option from the menu and wait for a few seconds for the

instrument to load the data file. Once finished, a message will appear “Your data

has been read. Please choose a memory location.”

6. Use the up and down arrow keys again to move the selection cursor and select any

of the arbitrary waveform memory locations listed (ARB1 – ARB10).

Note: The instrument can only load arbitrary waveforms that are stored into the

internal memory, so waveforms that are saved onto an external USB flash drive

must be loaded back the internal memory.

7. Select Save from the menu to transfer the loaded arbitrary waveform data from the

external USB flash drive into the selected internal arbitrary waveform memory

location.

8. The instrument will then automatically go into the arb menu with the selected

waveform loaded and shown on display.

Note: If you browse through the internal arbitrary waveform memory locations,

you will see the filename that was loaded from the USB flash drive now indicated

next to the selected memory location.
