3. On the AK40G adapter, a RED LED light indicates power to the adapter. A YELLOW

LED light indicates communication is in process.

Note: Once connected, do not unplug the adapter on either end, before powering down the

instrument and the computer first.

Configure GPIB address

1. Press Utility to enter the utility menu, and press Interface to select the interface.

2. Press GPIB and use the rotary knob to set the GPIB address of the generator. The

address range is 1 to 30.

3. Be sure that GPIB is highlighted in blue to indicate GPIB as the selected interface for

remote communication. Then, select Done.

Note: EasyWave software does not support GPIB interface. It must be used with USB

interface only.

Note: All supported remote commands are described in the programming manual. To

obtain a copy, please contact B&K Precision.

Output Configurations

Select Output Setups from the utility menu to configure output parameters.

AK40G

GPIB

USB

Generator

Communication

indicator LED

Power indicator LED

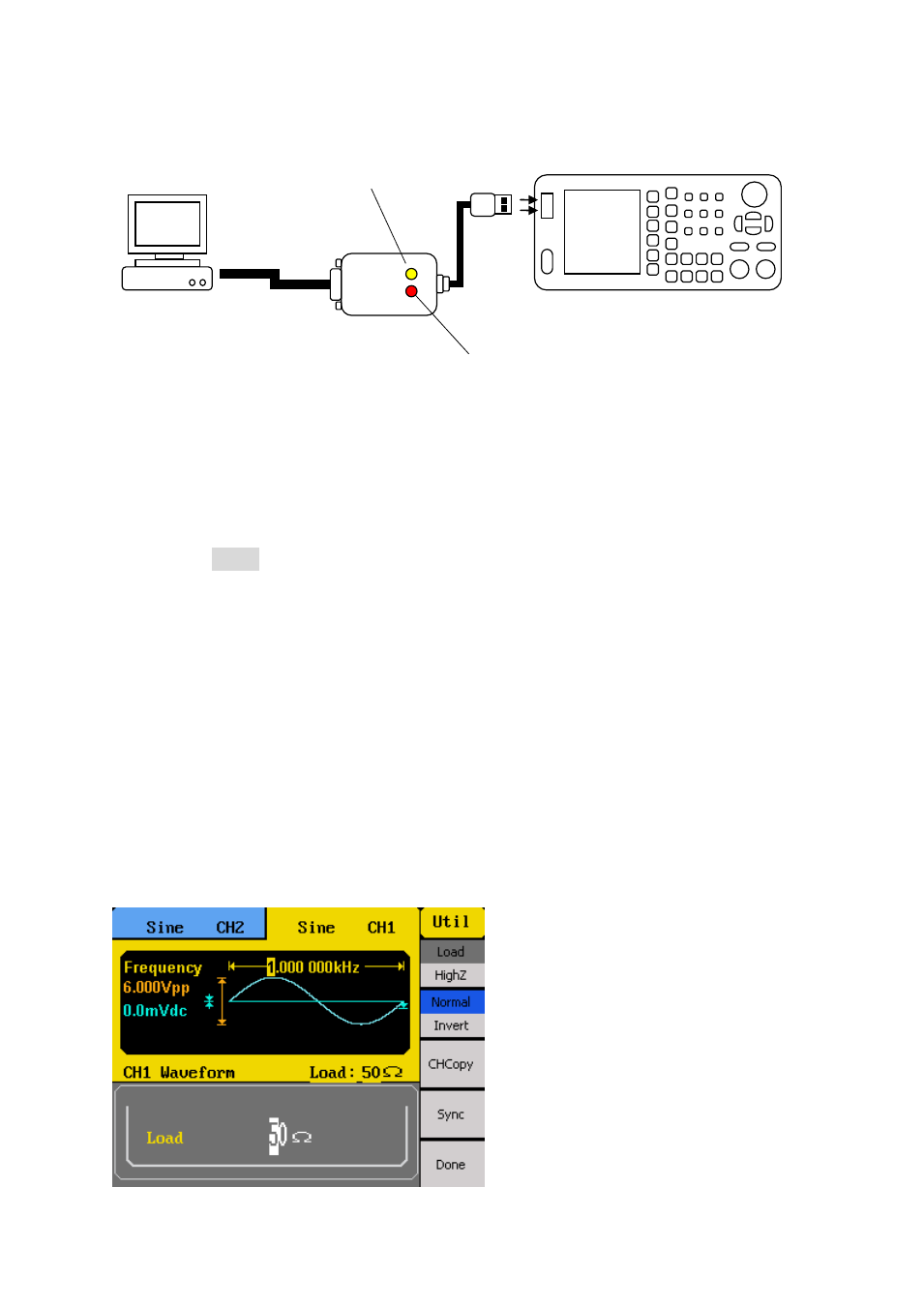

Figure 1 - Connecting AK40G GPIB adapter
