32
UpRamp Upward ramp DnRamp Downward ramp

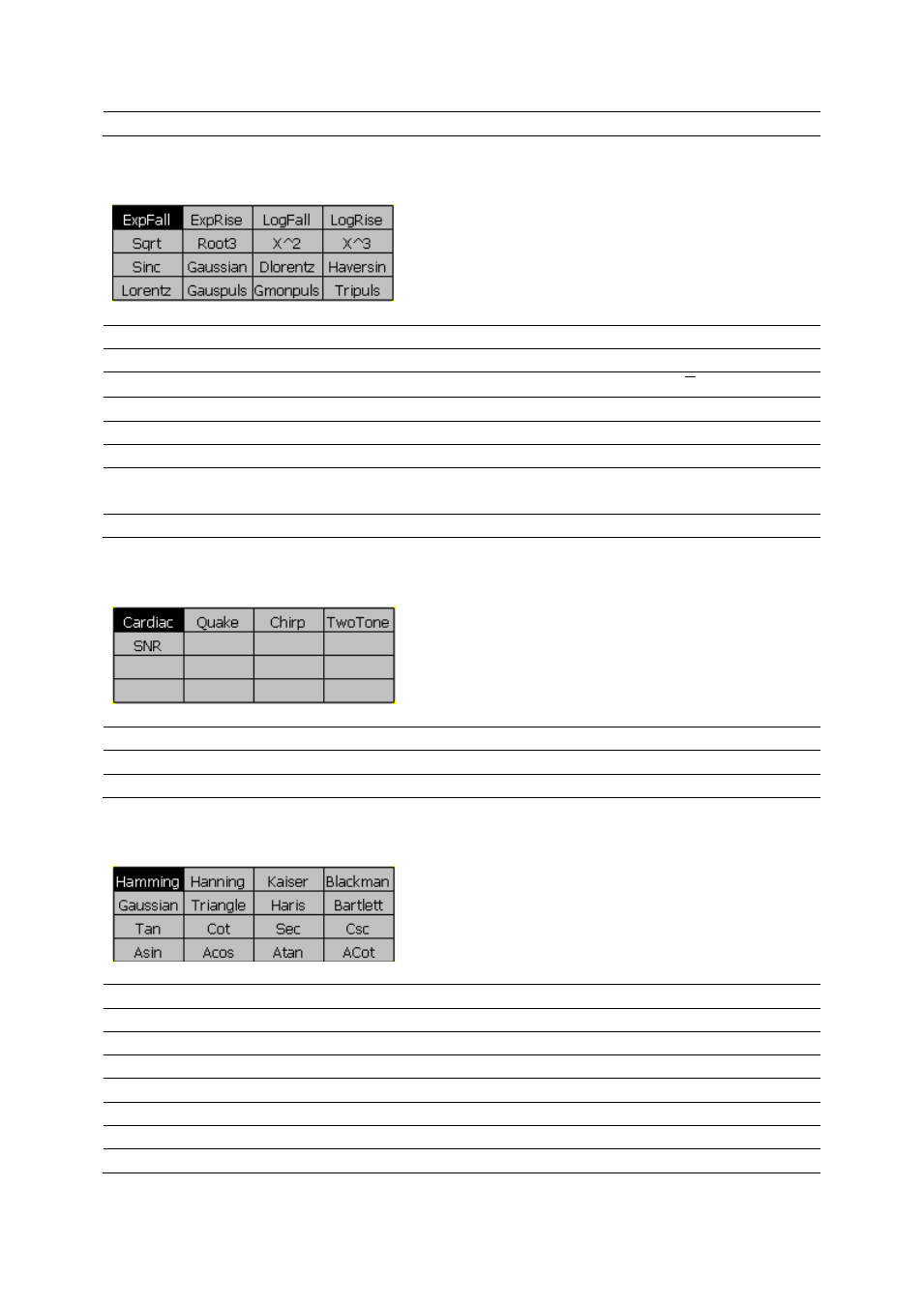

Math Waveforms
Math waveforms consist of:
ExpFall Exponential fall ExpRise Exponential rise
LogFall Logarithmic fall LogRise Logarithmic rise
Sqrt Square root function Root3 Root three (√𝑥 3 ) function
X^2 X 2 function X^3 X 3 function
Sinc Sinc function Gaussian Gaussian function
Dlorentz D-lorentz function Haversine Haversine function
Lorentz Lorentz function Gauspuls Gaussian modulated
sinusoidal pulse
Gmonpuls Gaussian mono pulse Tripuls Triangle pulse
Special (project) Waveforms
Special (project) waveforms consist of:
Cardiac Cardiac signal Quake Earthquake
Chirp Frequency sweep cosine TwoTone Two tone signal
SNR Sine with white noise
Window and Trigonometric Waveforms
Window and trigonometric waveforms consist of:
Hamming Hamming window Hanning Hanning window
Kaiser Kaiser window Blackman Blackman window
Gaussian Gaussian window Triangle Triangle window
Haris Haris window Bartlett Bartlett window
Tan Tangent function Cot Cotangent function
Sec Secant function Csc Cosecant function
Asin Inverse sine function Acos Inverse cosine function
Atan Inverse tangent function ACot Inverse cotangent function
