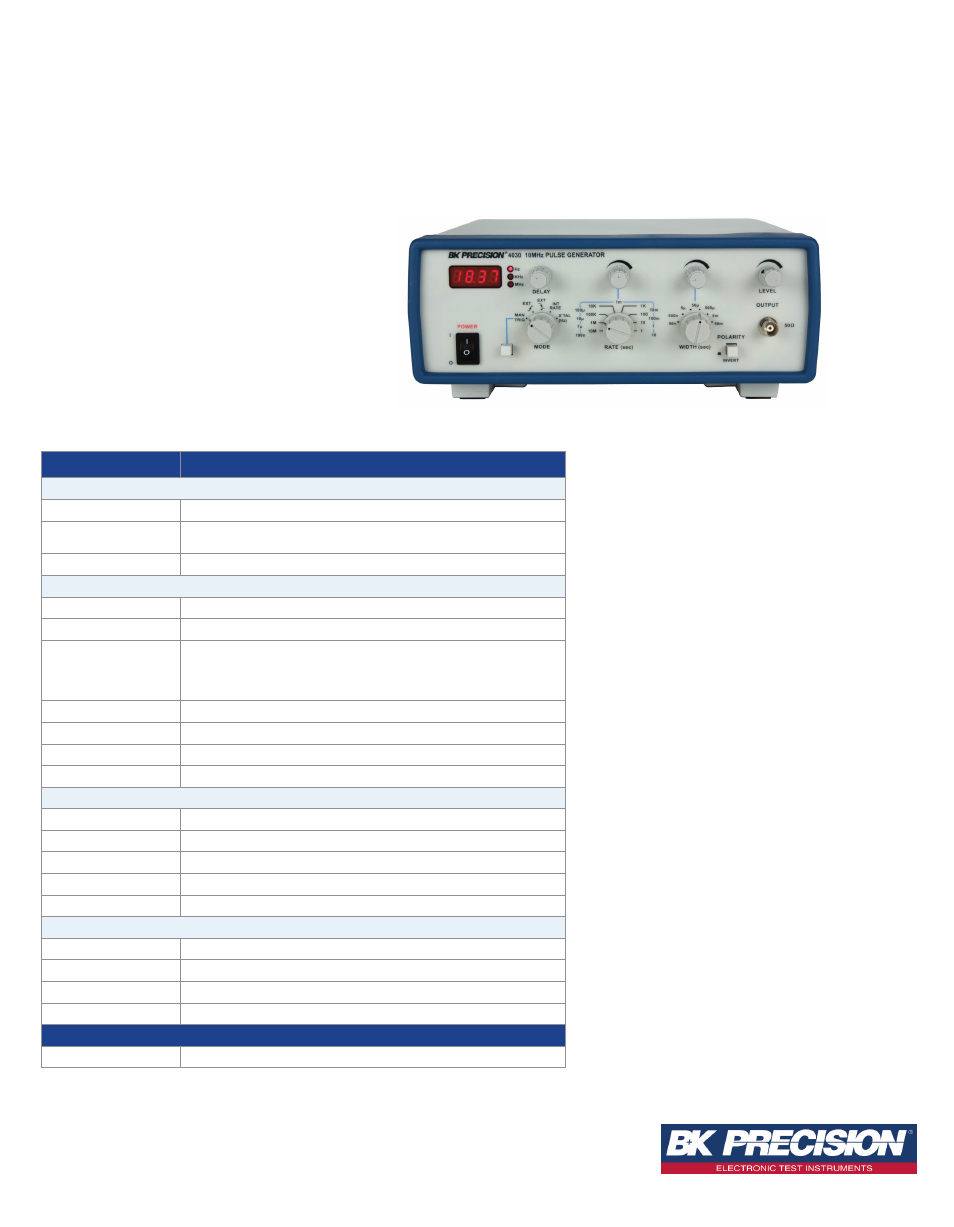

10 MHz Pulse Generator with 4-Digit LED Display
Model 4030
Data sheet
Technical data subject to change
© B&K Precision Corp. 2014
v050114
The B&K Precision Model 4030 is a versatile signal
source which combines four functions into one
unit – waveform generation, pulse generation
(through variable symmetry), frequency sweep
operation, and triggered operation. The 4030 offers
low rise and fall time pulsed signals up to 10MHz to
meet many test and measurement applications.
Features and Benefits
■ Adjustable frequency range from 0.1 Hz to
10 MHz
■ Four digit LED frequency display
■ Invertible polarity
■ Single pulsed output via manual trigger
Applications
With this versatility, it has a vast number of applica-
tions in both analog and digital electronics in the
engineering, manufacturing, servicing, educational,
and hobbyist fields.
Specifications
Model 4030
Frequency Range
Internal 0.1 Hz to 10 MHz in 8 decade ranges & variable
Crystal Tal Spot frequencies
1 Hz, 10 Hz, 100 Hz, 1 KHz, 10 KHz, 100 KHz,
1 MHz, 10 MHz
Rate 100 ns – 0.1s
Triggering
Internal 0.1 Hz to 10 MHz
External 10 Hz to 10 MHz
Manual
1 pulse per sec (*for 10 MHz rate only)
*Manual trigger available for 10 MHz (100 ns) rate only. Not available
with any other rate settings.
Ext. Trig-Input +1 V to +10 V p-p sine & square waveform
Width 50 ns - 50 ms (6 decade ranges & variable)
Delay 0-2 uS variable w.r.t. trigger
Output Polarity Normal/Inverting
Output
Main Out 1 V - 10 V (open circuit)
Pulse Out 0.5 V - 5 V at 50 Ω
Impedance 50 Ω
Rise & Fall Time 10 ns approximately
Output Terminal BNC Connector
General
AC Input 115/230 V AC +10%, 50/60 Hz
Consumption 10 VA
Dimensions (WxHxD) 10.3’ x 4.4’ x 12.4’ (26.2 x 11.2 x 31.5 cm)
Weight 5.5 Lbs (2.5 kg)
One-Year Warranty
Included Accessories Power cord, instruction manual, and BNC to alligator clip cable
