Autel MaxiDAS DS708 User Manual
Page 66
60
2. Click on the disc icon in the upper right corner to display the data logging
menu during a diagnostic process when necessary.

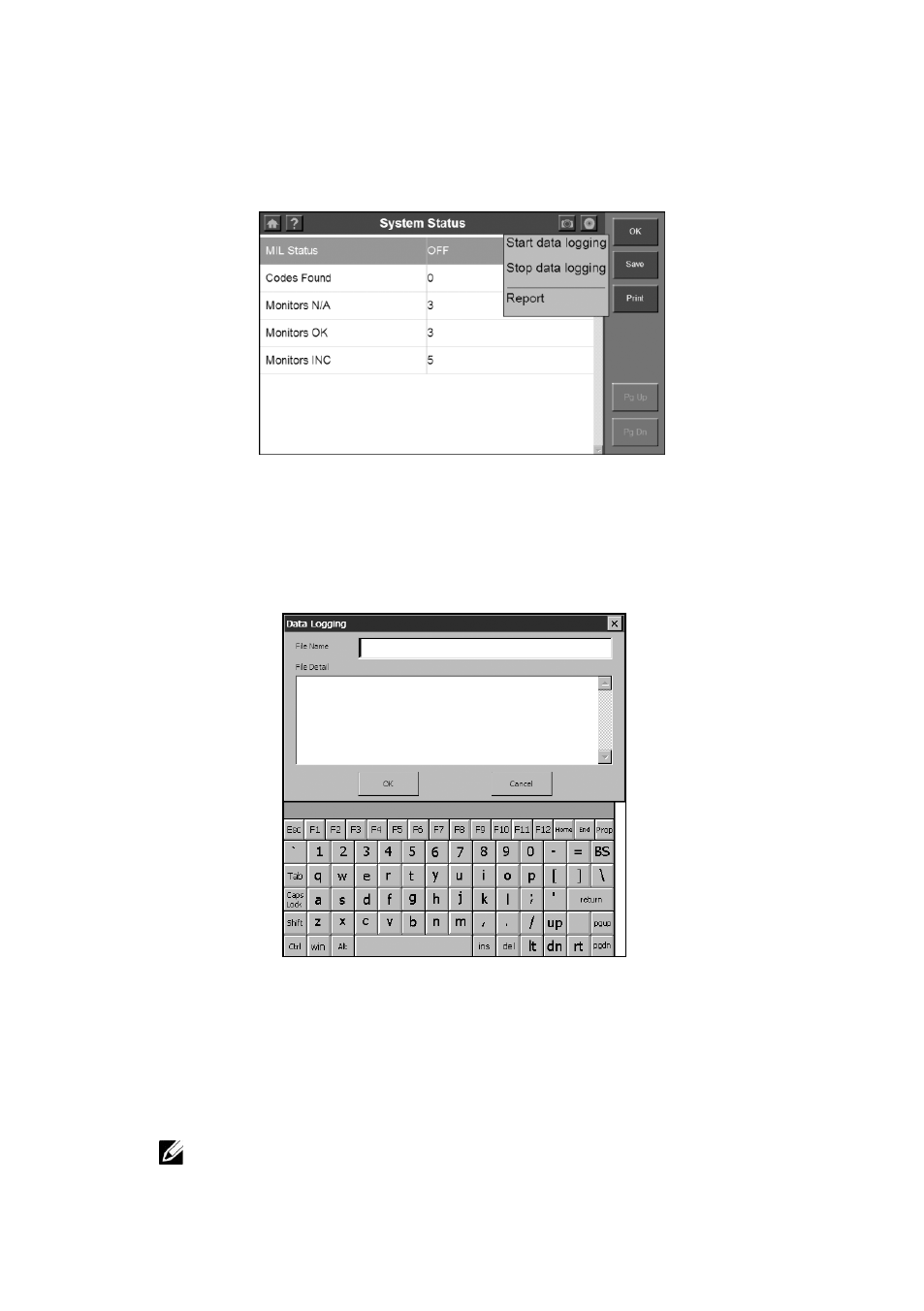

Figure 4.3: Data Logging Menu
3. Click on “Start data logging”, a dialog box will display.
Figure 4.4: Data Logging Dialog Box
4. Use the soft keyboard to put in File Name and File detail, and click on
OK. The scan tool will start to record the communication process with
the vehicle being tested.
NOTE: For better solution of your problems, please put detailed
descriptions of the problems encountered in the File Detail box.
