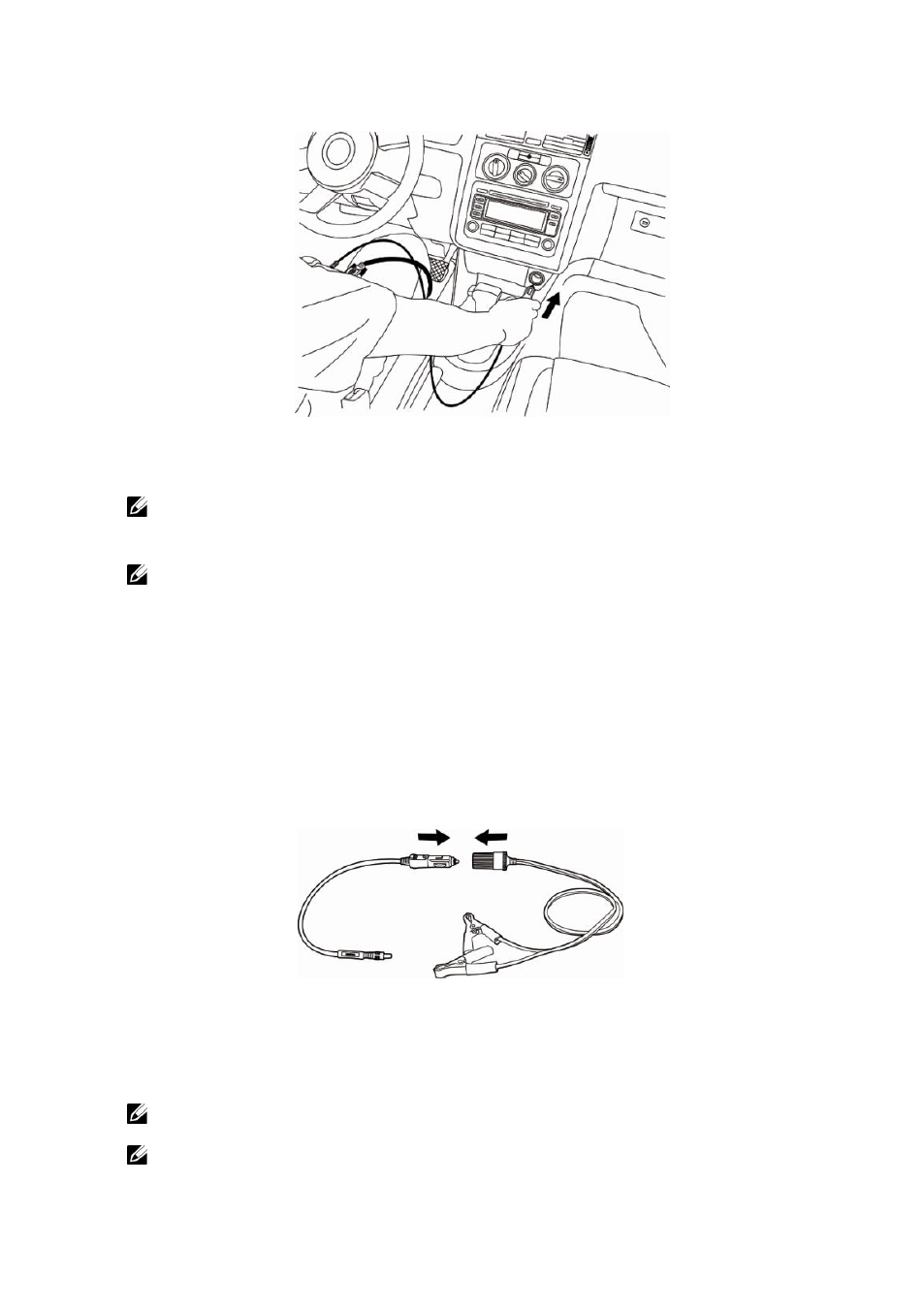

Figure 3.8: Plug into the Vehicle’s Cigarette Lighter Receptacle

NOTE: The vehicle’s DLC is not always located under the dash as shown

above.

NOTE: Some adapters may have more than one adapter or may have test

leads instead of an adapter. Whatever the case, make the required
connections to the vehicle’s DLC.

If the cigarette lighter connection does not provide power either, connection
to the vehicle’s battery is necessary. Follow these steps:

1. Connect the cigarette lighter to the clipper cable.

Figure 3.9: Connection between Cigarette Lighter and Clipper Cable

2. Connect the clipper cable to the vehicle’s battery.

NOTE: The vehicle’s battery is usually located beside the engine.

NOTE: Please connect the red clipper to the anode and the black clipper

to the cathode.
