Autel MaxiDAS DS708 User Manual
Page 48

42

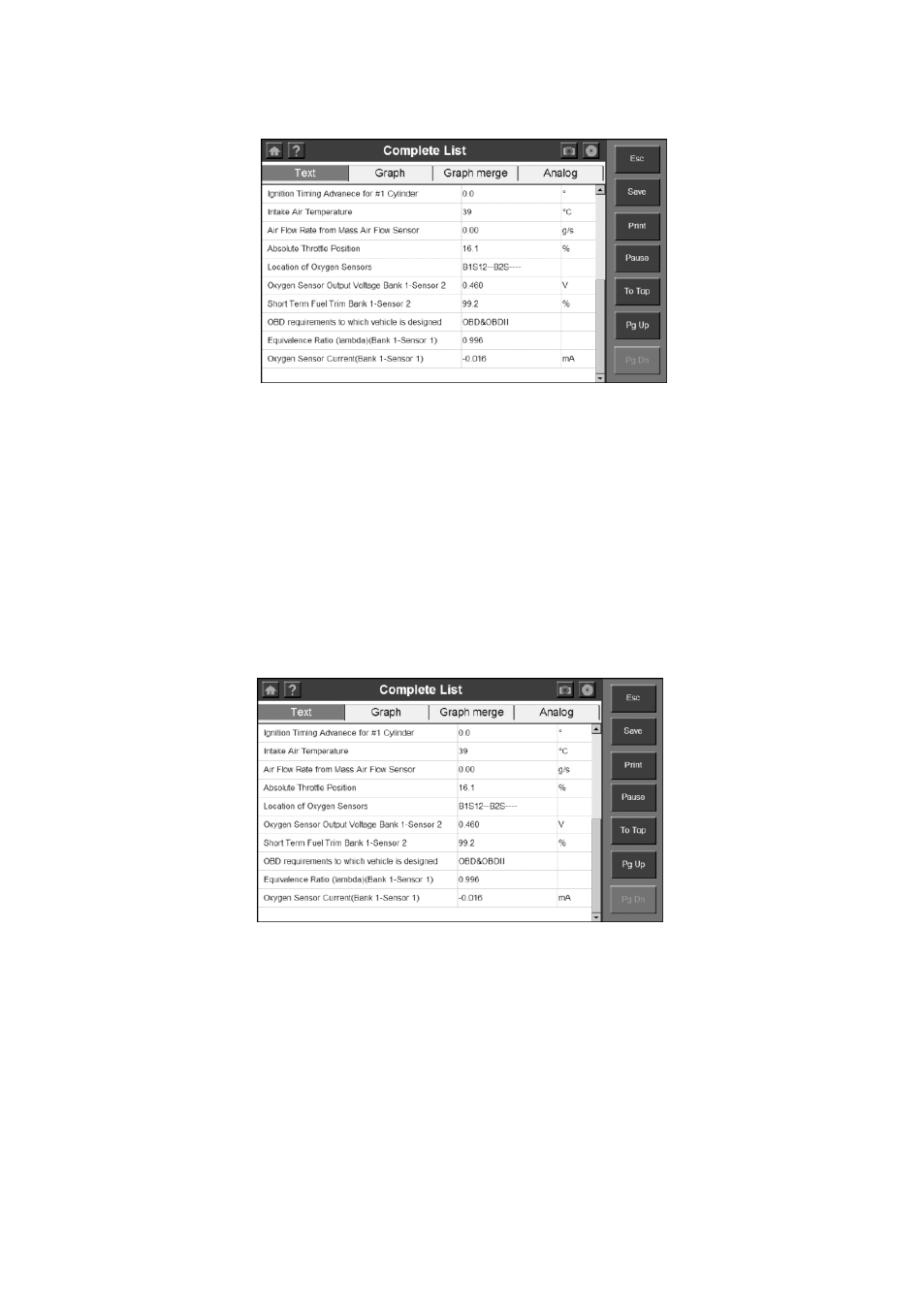

Figure 3.30: Live Data Screen
To change the display, click on the Digital/ Graph / Graph Merge/ Analog
function buttons.
a. About Digital Display
When the data is displayed as Digital, its reading is a word or a number as
shown below.
Figure 3.31: Live Data Screen-Digital Display
You can change the display of the lines as follows:
If the reading is a word (usually a switch reading), such as On, Off, OK,
etc., the display can only be in word format.
If the reading is a number (usually a sensor reading), such as 1.1 V, 23.3
Amps, etc., then you can change the data display to either a graph or an
analog gauge.
