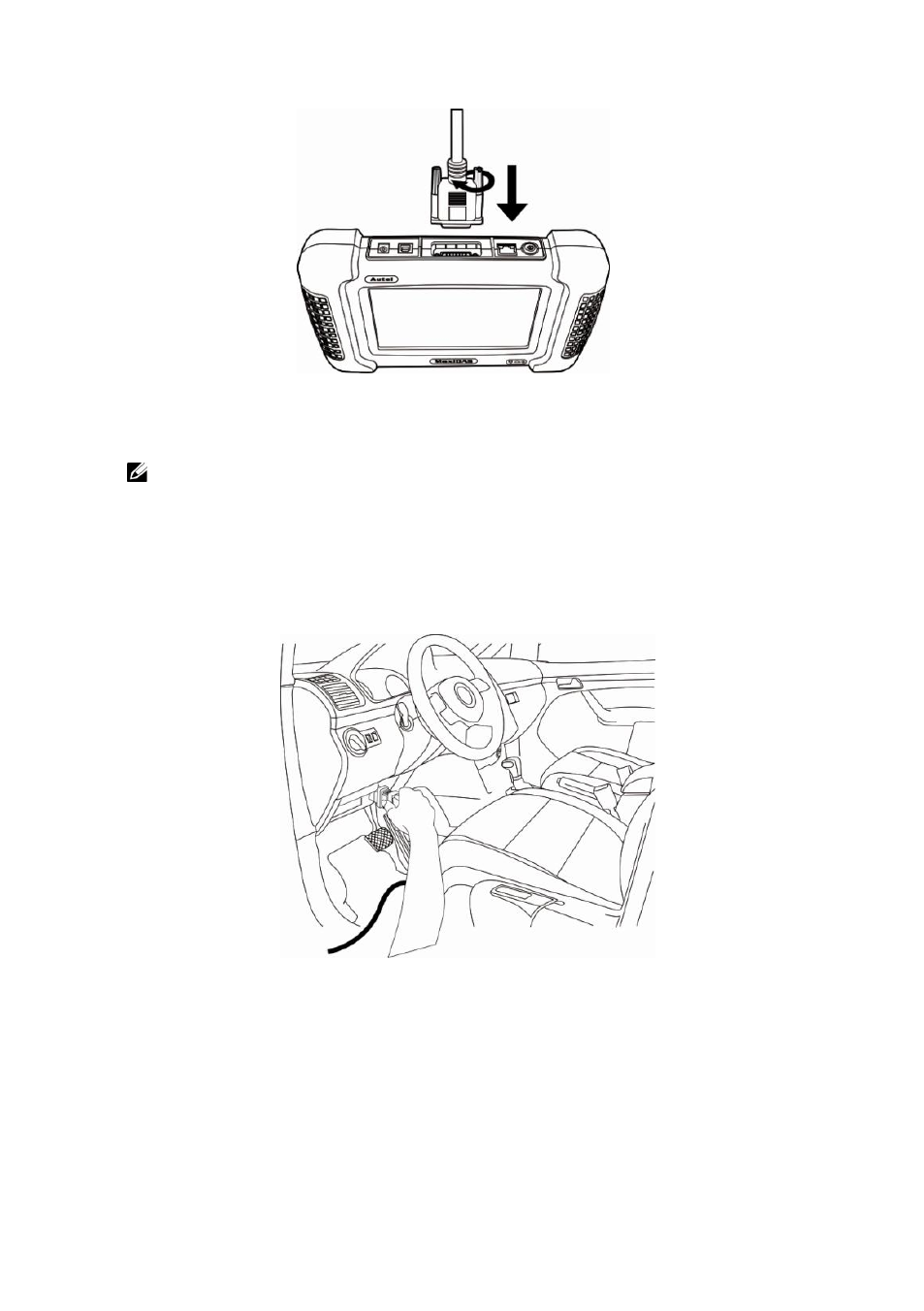

Figure 3.2: Main Cable Connection to the Scan Tool
NOTE: Extension cable can be used between the scan tool and the
15-pin main cable.
 Connect the cable’s OBD II adapter into the vehicle’s DLC, located
under the vehicle dash.
Figure 3.3: OBD II Cable Connection to Vehicle DLC
b. Non-OBD II Vehicle Cable Connection
There can be three possible conditions for Non-OBD II Vehicle Cable
Connection: 1) DLC connection supplies both communication and power; 2)
DLC connection supplies communication, and power is to be supplied via
cigarette lighter connection; 3) DLC connection supplies communication,
