27

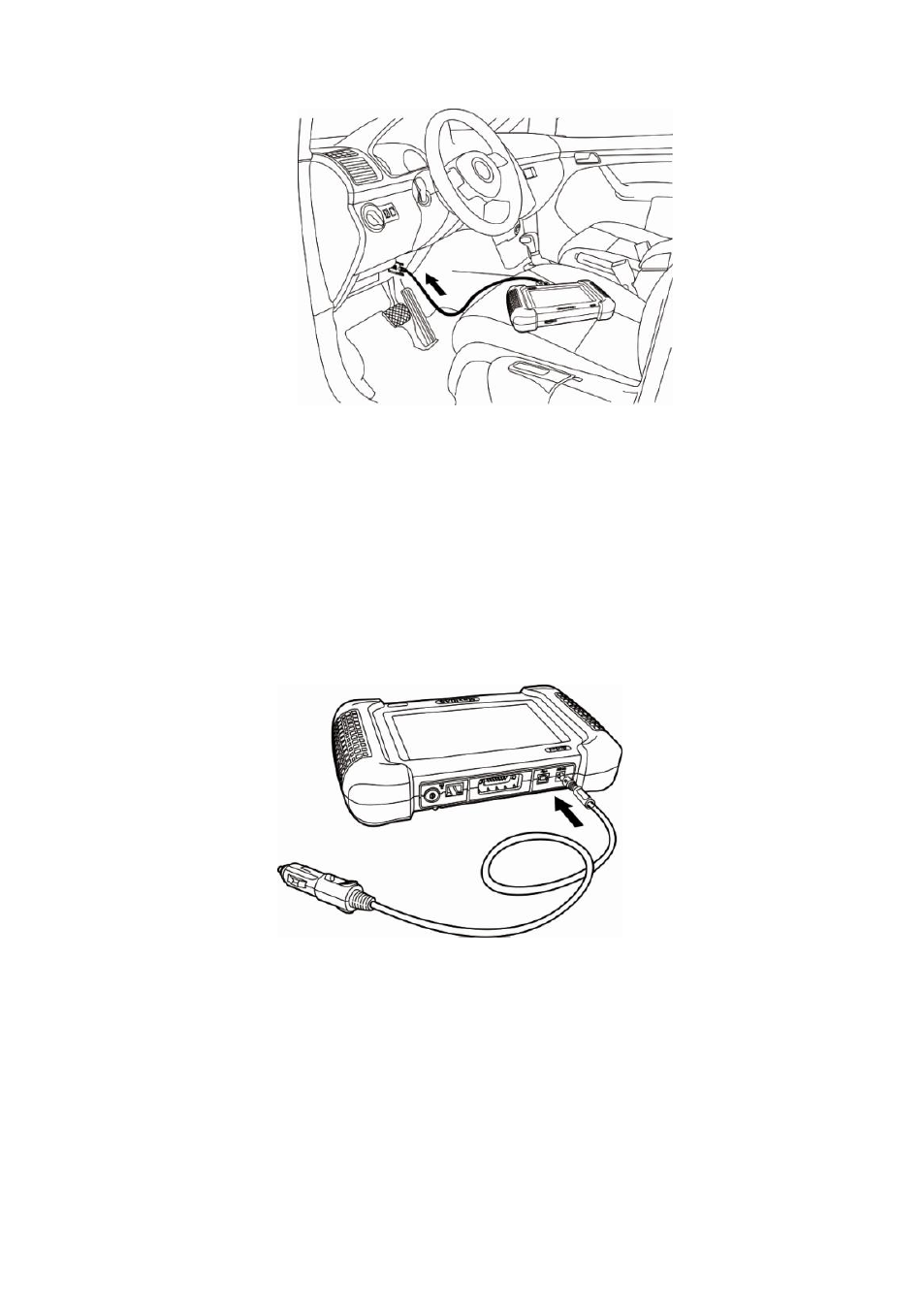

Figure 3.6: Main Cable Connection to Vehicle DLC
If the DLC connection does not supply power to the scan tool, connection to
the cigarette lighter receptacle will be needed. Please follow these steps:
1.
Connect the cigarette lighter with the scan tool.
Figure 3.7: Cigarette Lighter Connection to the Scan Tool
2.
Connect the cable’s power plug into the vehicle’s cigarette lighter
receptacle.
