43

b. About Graph Display

If the data reading is a number (usually a sensor reading), such as 14.4 V, 1.1
V, or 23 Amps, you can use the Graph/ Graph Merge function buttons to
display the data in graph format. For example, see Figures 3.32 and 3.33.

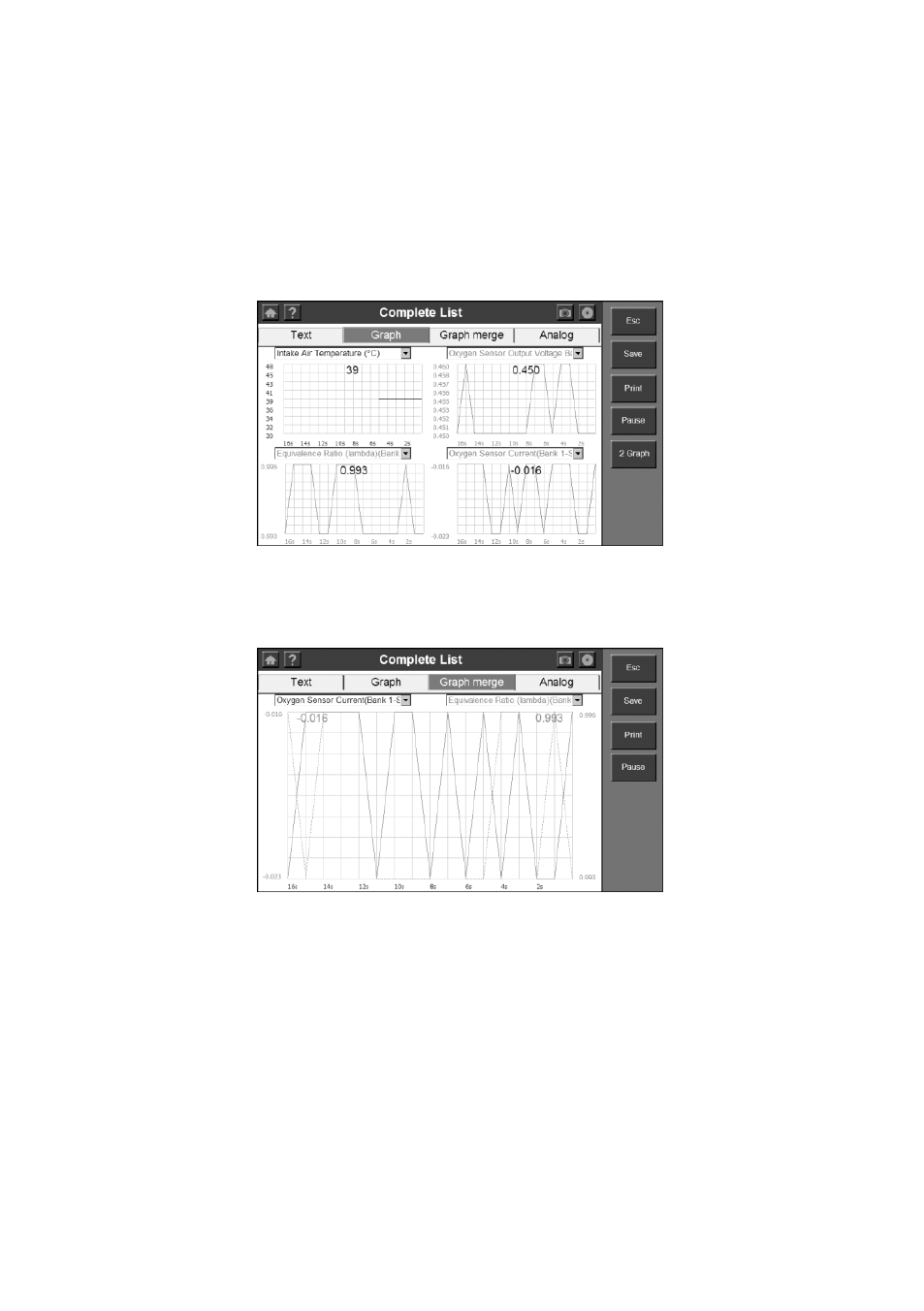

Figure 3.32: Live Data Screen-Graph Display

Figure 3.33: Live Data Screen-Graph Merge Display

c. About Analog Display

If the data reading can be displayed as a graph (see Figures 3.32 and 3.33),
you can use the Analog function button to display the data as an analog
gauge. Up to two gauges can be displayed on one screen.
