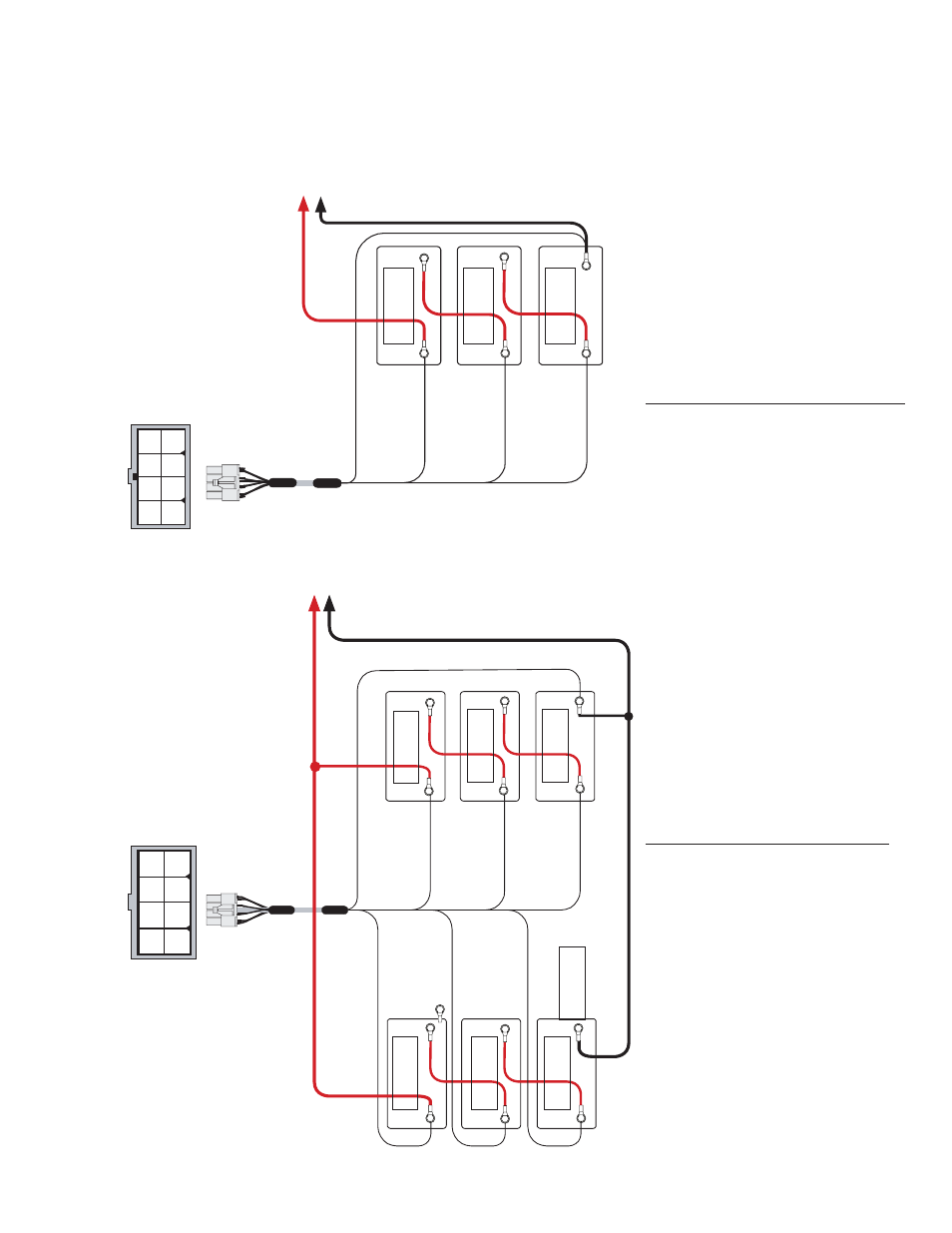

Fig. 2-19, 36V System, Single String
Sense Wire Kits:
Alpha P/N: 874-842-21 (6')
Alpha P/N: 874-842-27 (9')
Back of Plug
1
2
3
4
5
6
7
8
Vbatt 3A
[C] 36V
Pin 4
3A
POS
NEG
2A
POS
NEG
1A
POS
NEG
A/B [C/D] NEG
Pin 1
Vbatt 2A
[C] 24V
Pin 3
Vbatt 1A
[C] 12V
Pin 2
To Power Supply
Black Red
Fig. 2-20, 36V System, Dual String
Sense Wire Kits:
Alpha P/N: 874-842-28 (9')
POS POS POS
3B
NEG
2B
NEG
1B
NEG
1
2
3
4
5
6
7
8
Back of Plug
3A
POS
NEG
2A
POS
NEG
1A
POS
NEG
A/B [C/D] NEG
Pin 1
Vbatt 3A
[C] 36V
Pin 4
Vbatt 2A
[C] 24V
Pin 3
Vbatt 1A
[C] 12V
Pin 2
Vbatt 3B [D] 36V
Pin 7
Vbatt 2B [D] 24V
Pin 6
Vbatt 1B [D] 12V
Pin 5
To Power Supply
Red Black
