2.0 Installation, continued
2.3 Non-HMS Alpha Power Supplies, continued
2.3.2 Alpha XM Series Power Supply with USM Series Interface
Installation Procedure:
1. Remove the EDH4 transponder and cabling hardware from its shipping package.
2. Insert the 16-pin connector of the EDH4 Power Supply Interface Cable into the transponder’s
PWR SUPPLY interface port.
3. Install the EDH4 into the power supply cabinet using the adhesive fasteners on the bottom of
the transponder. Refer to Figure 2-6 for a possible mounting location in the enclosure.
4. Insert the power supply interface cable into the status monitoring connector of the power
supply (see Fig. 2-7). Note that the 13th pin does not have a mating pin. See the power
supply manufacturer’s operating manual for information on the power supply.
Required Materials
RF Cable Customer supplied
Battery Sense Wire Harness for: 36V single string, 6', Alpha p/n 874-842-21
36V single string, 9', Alpha p/n 874-842-27
36V dual string, 9', Alpha p/n 874-842-28
48V single string, 9', Alpha p/n 874-841-25
48V dual string, 9', Alpha p/n 874-841-24
XM Series Power Supply Interface Cable Alpha p/n 875-335-21 (for USM interface)
XM Series 2 Power Supply Interface Cable Alpha p/n 875-335-20 (for USM2/2.5 interface)
Battery Heater Mat Control Cable (optional) Alpha p/n 875-627-20
Ethernet Cable (optional) Alpha p/n 875-734-19
External Temperature Probe (optional) Alpha p/n 745-178-21
Vin Sense (optional) Alpha p/n 875-493-21
Surge Protector w/Ground Block Alpha p/n 162-028-10
In Line Lightning Arrestor w/pass through (130V) L-G,
L-N, N-G Alpha p/n 162-046-10 (not compatible with 240V
circuits/receptacles)

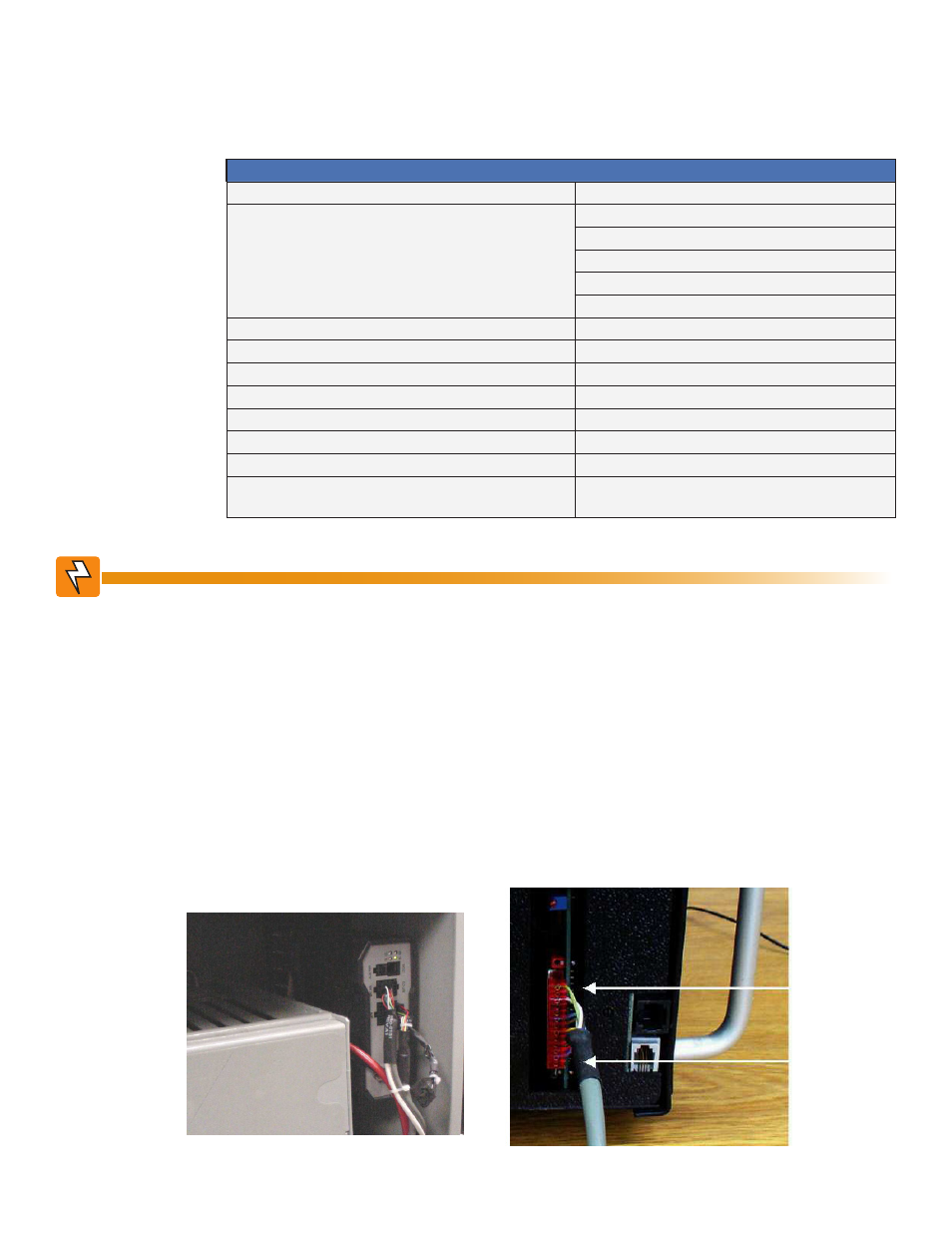

Fig. 2-8, Installing the EDH4
Fig. 2-9, Alpha XM with USM
Before beginning this installation, verify power is removed from the power supply. Installation
should be performed only by qualified service personnel.
WARNING!
Pin 1
Pin 13
(Floats)
