2.0 Installation, continued
2.2 Alpha XM Series 2 Power Supply and USM Series Interface, continued
5. Secure the top of the USM2.5 card to the Inverter Module with the PEM fastener. The lower portion is
covered by an optional blanking plate. Use 2 #6 screws to secure the blanking plate.
6. Before reinstalling the Inverter Module, set the DIP switch, SW1 to the proper configuration settings
for the status monitoring interface, as per Table 2-1. Always verify USM2.5 configuration especially
after upgrading or modifying the XM Series 2 Power Supply.
7. Reinstall the Inverter Module:
• Align the metal shield in the upper and lower card-guides.
• Using ONLY the Inverter Module’s handle (do not apply pressure to the front panel) firmly drive
the module back into the connectors. The connectors are designed to be made with reasonable
force.
• The thumbscrews are not intended to aid in making these connections, but to secure the Inverter
Module to the chassis.
• Reattach the ribbon cable to the inverter module.
8. If the Inverter Module is correctly seated, the front panel Smart Display will start-up, and the “Inverter
Disconnected Alarm” will NOT be active.
9. Retighten the thumbscrews. ONLY tighten by hand. Do not use tools to tighten the thumbscrews.
10. Reconnect all the cables (TMPR, XPDR, and SYS COM) as needed to the Communications Module.
11. Verify that the battery breaker is OFF.
12. Reconnect the battery input and the temp probe cables.
13. Switch the battery breaker ON.
14. Verify the status of the LED indicators on the front panel of the EDH4. Refer to
Section 3.1,
Checking the LEDs for LED indicator details.
15. Refer to Section 3.0, Configuration and Operation for transponder configuration details. The EDH4
will need to be configured with the model of the connected power supply via the transponder Web
page locally or remotely.
XM2 - USM2 XM2 – USM 2.5
SW 1–1, 2, 6, 8 = ON SW 1-1, 2, 6 = ON
SW 2-1, 3, 4 = ON
JP1 = C & 1
JP2 = 1 & 2

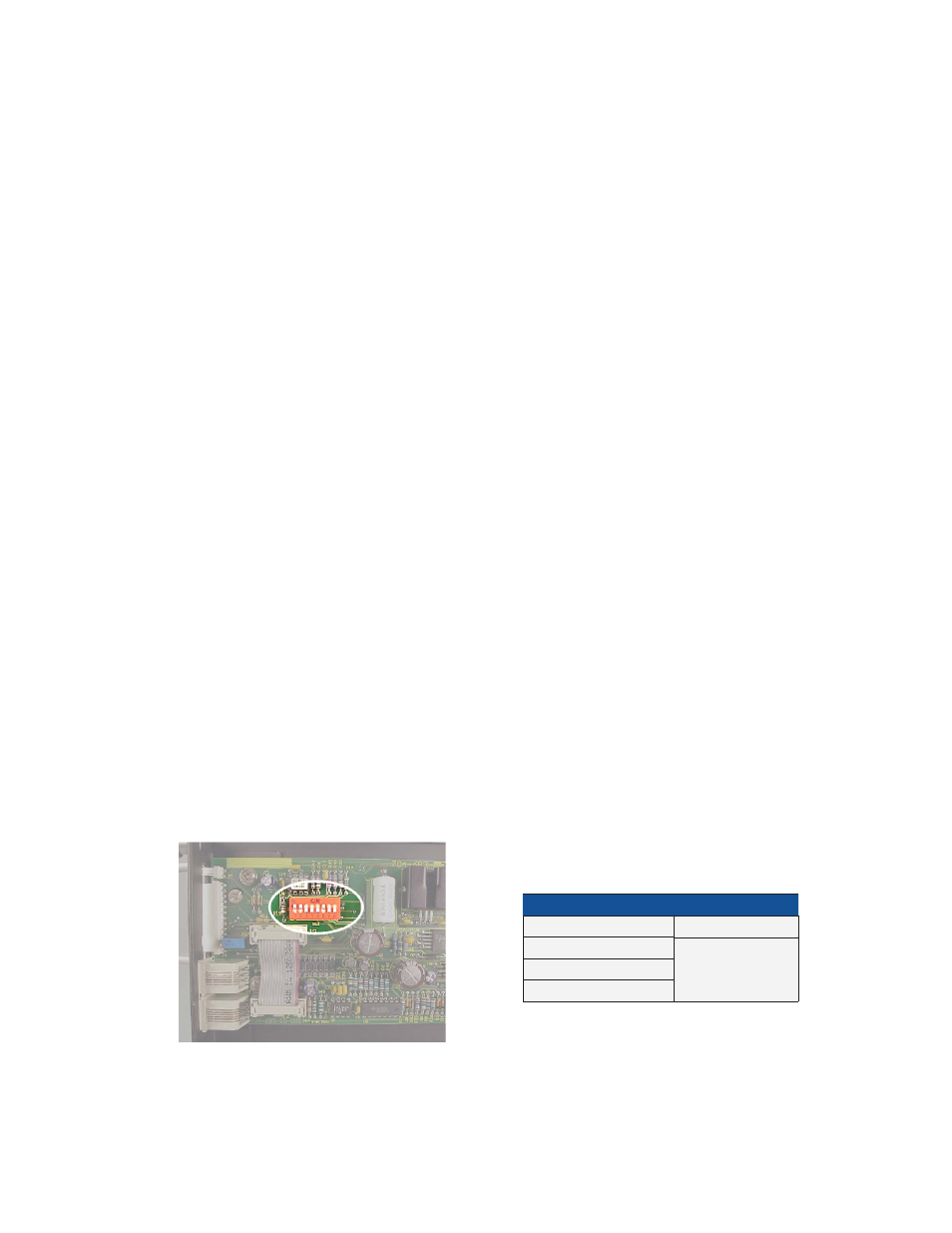

Fig. 2-3, DIP Switch (SW1) Location Table 2-1, Switch and Jumper Settings
