Figure 53 — fuse location for lcd touch screen – Alpha Technologies AMP24 HP User Manual
Page 75
73
Doc. #: 0260011-J0 Rev B

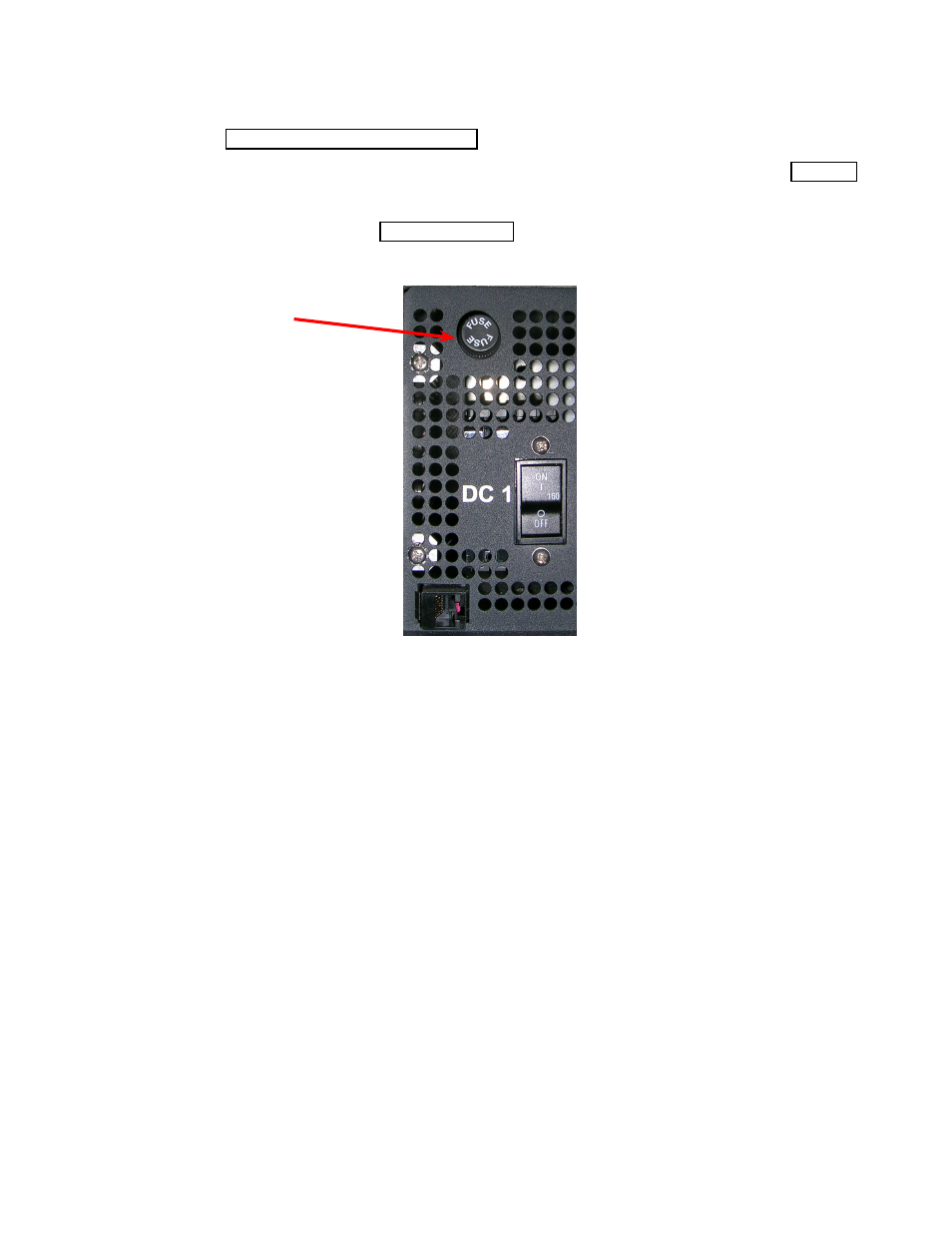

Figure 53 — Fuse location for LCD touch screen
7.8.2 Replacing the Fuse for the LCD touch screen (for the CXCU)
Refer to "Table J — Spare Parts" on page 69 for the part number of the fuse.
The fuse for the LCD touch screen is located on the front of the DC distribution panel (see Figure 53.
1. Push and turn simultaneously to release the fuse.
2. Replace with fuse listed in Table J on page 69.
Fuse
