47 Doc. #: 0260011-J0 Rev B

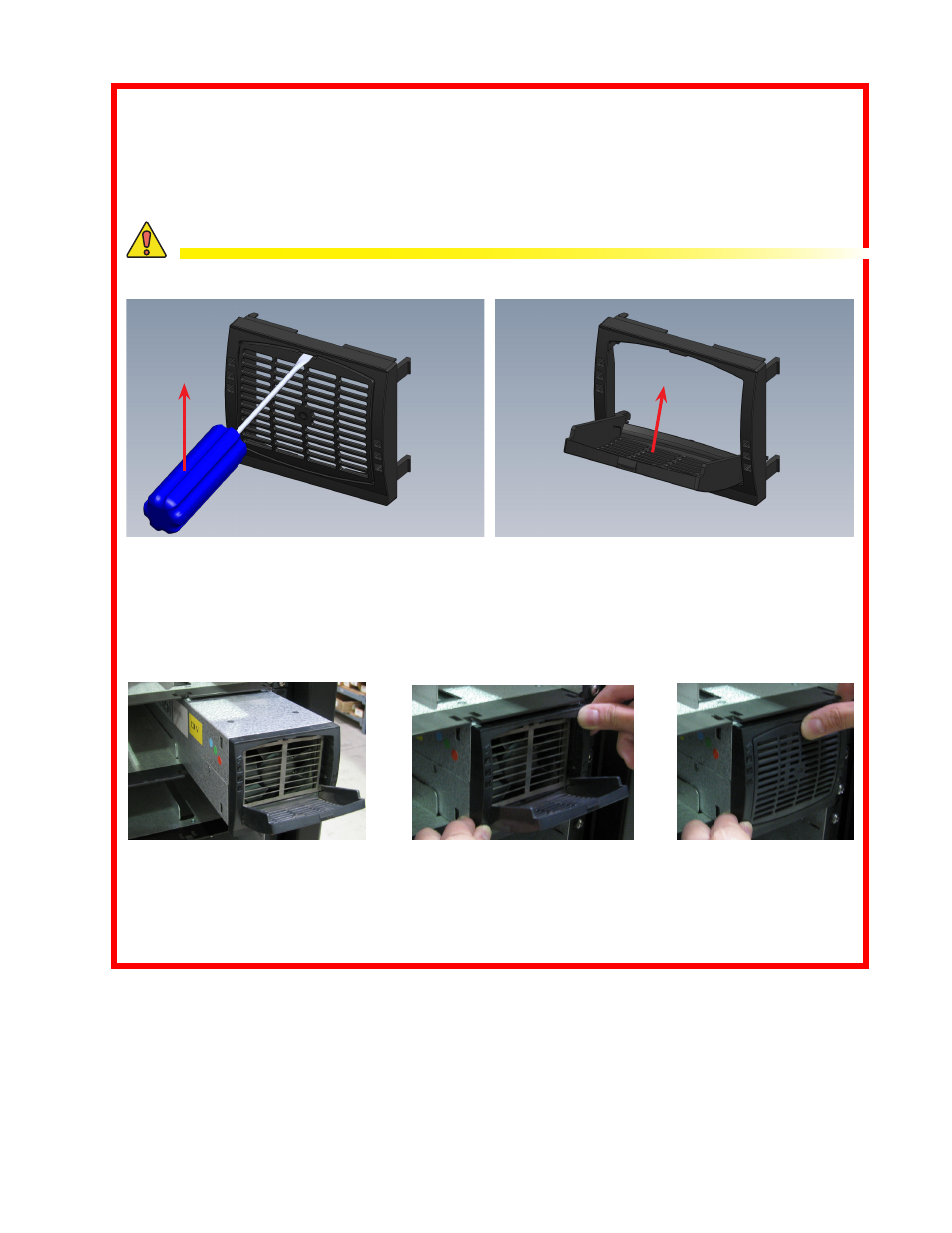

Figure 29 — Inserting and removing an inverter module
1. Place module into shelf. 2. Press module into place and
ensure connection is engaged.
3. Close cover and snap
module into place. If the
cover does not close
easily, repeat Step 2.
Insert a flat head screw driver into the center flap
notch and pry open the center flap. Then pull out the
module by pulling on the center flap with both hands.
Leave the module plastic front grill in the open/un-
locked position, then slide/push the module all the
way into the module slot, and then close the flap.
Unlock
Figure 28 — Unlocking and locking an inverter module for removal or insertion
Lock
CAUTION!
Improper installation or removal of modules can break latching components.
Insertion/ Removal instructions for Inverter Modules
See below for detailed module insertion/removal instructions. You may not want to close/lock the
grill at this time because the module may have to be removed at a later stage.
