49 Doc. #: 0260011-J0 Rev B
22. Now that the inverter modules in each shelf have a number, use the controller to place one
module in each of the AC input and output groups:
a. Select Main Menu > Inverters > Group Mapping.
b. Turn the inverter modules OFF by clicking the power icon Turn All Modules Off. The green
power icons turn black in a few seconds.
c. Match AC Input Groups to AC Output Groups by configuring the modules to the groups as
shown in Figure 31.
d. DO NOT TURN THE INVERTERS BACK ON. PROCEED WITH THE NEXT STEP.
Configuration Setting
Single Phase
Split Phase
(120/240V)
OR
2-Pole (120/208V)
3-Phase

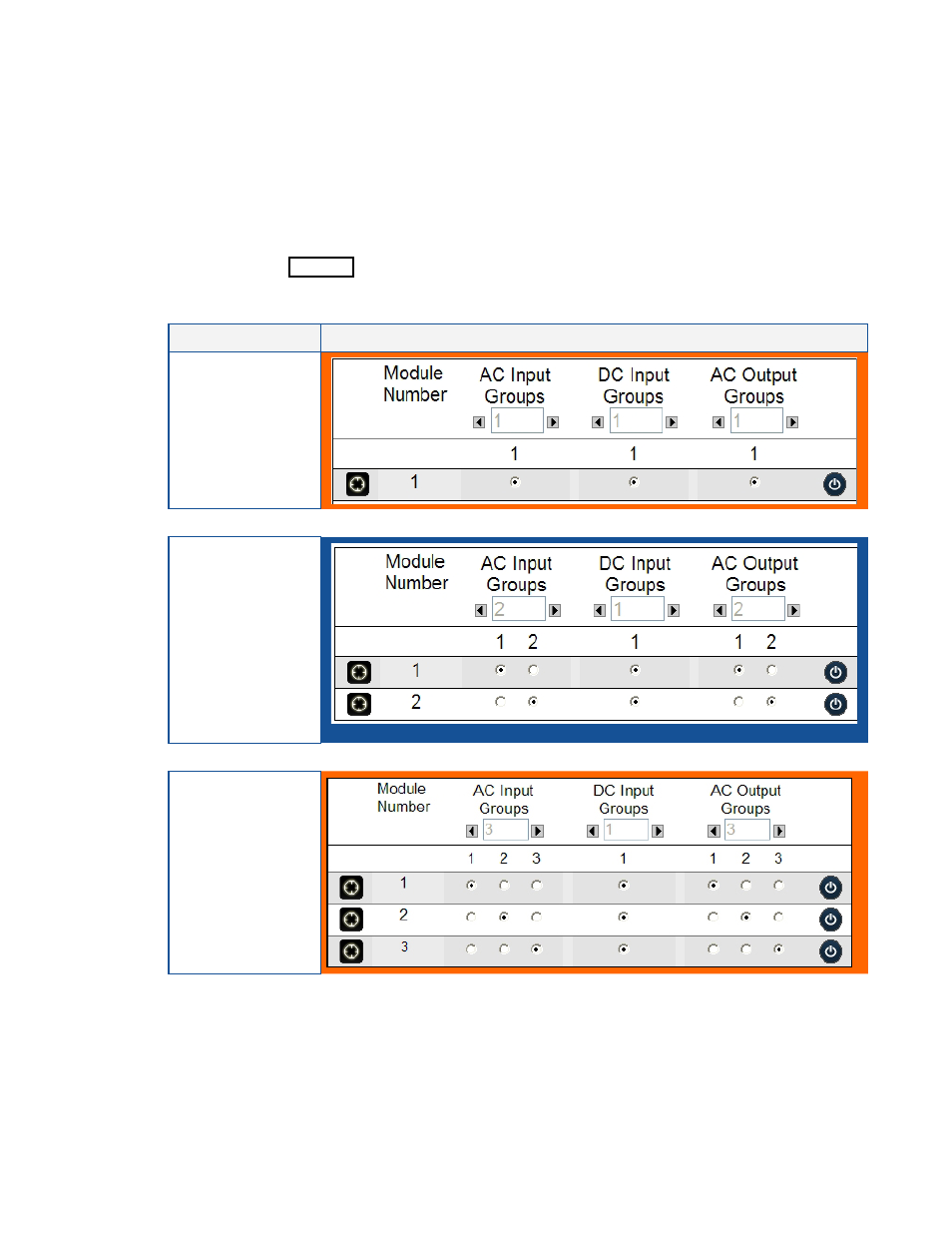

Figure 31 — Matching AC Input Groups to AC Output Groups
