3 dc battery and ground cabling, Figure 19 — single feed, parallel battery strings, Ough the dc box at the back (5.3) – Alpha Technologies AMP24 HP User Manual

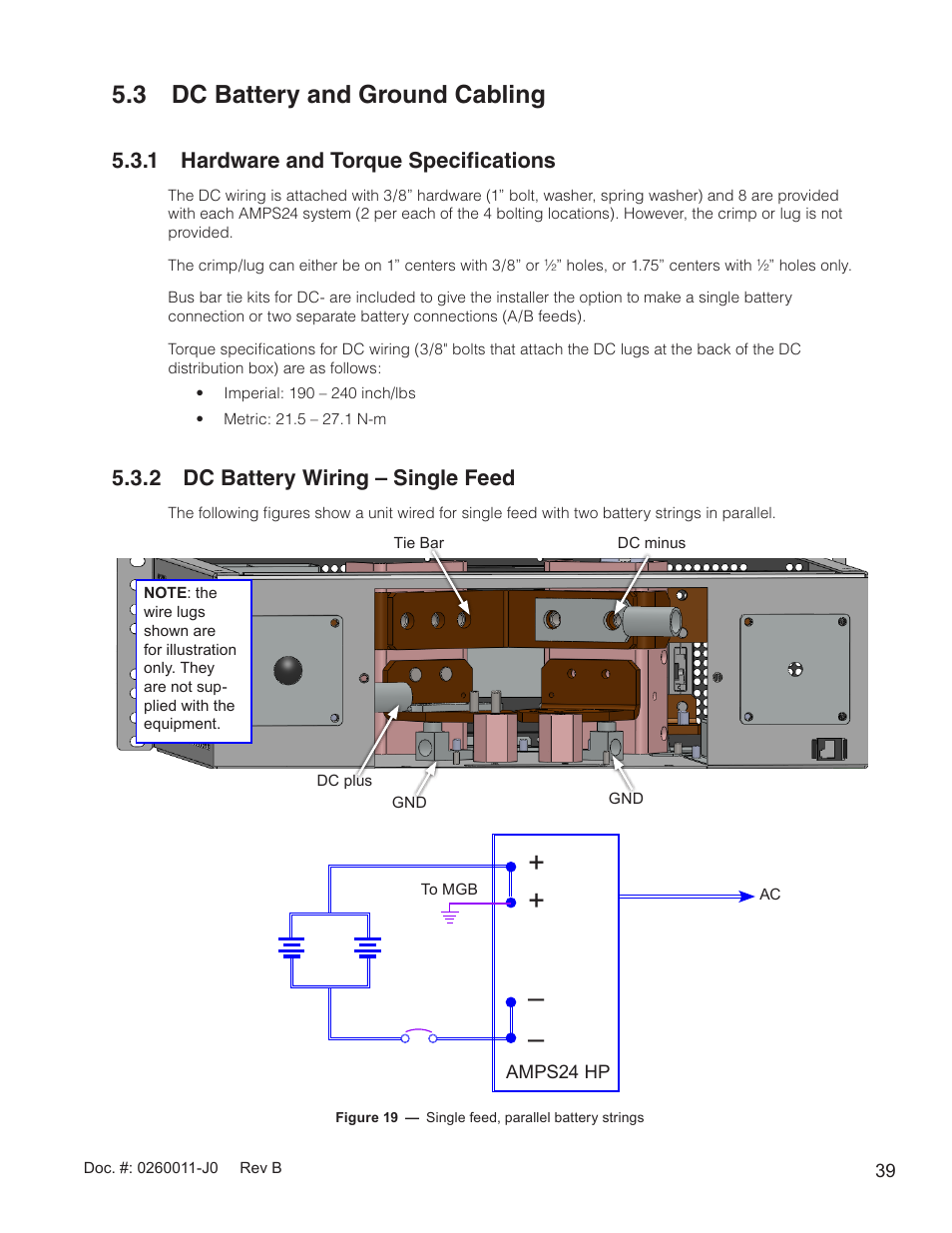

Page 41: 1 hardware and torque specifications, 2 dc battery wiring – single feed
