5 Installation
610.00260.40.000 · 05.2014 26 / 74 © Gardner Denver Deutschland GmbH
Installing the wall-mounted drive controller
Installation location that is suitable for wall mounting
! Please make sure that the installation location for wall mounting meets the
following conditions:
1. The drive controller must be mounted on a flat, solid surface.
2. The drive controllers may only be mounted on non-combustible surfaces.
3. There must be at least a 20-cm-wide clearance all around the drive controller
to ensure free convection.

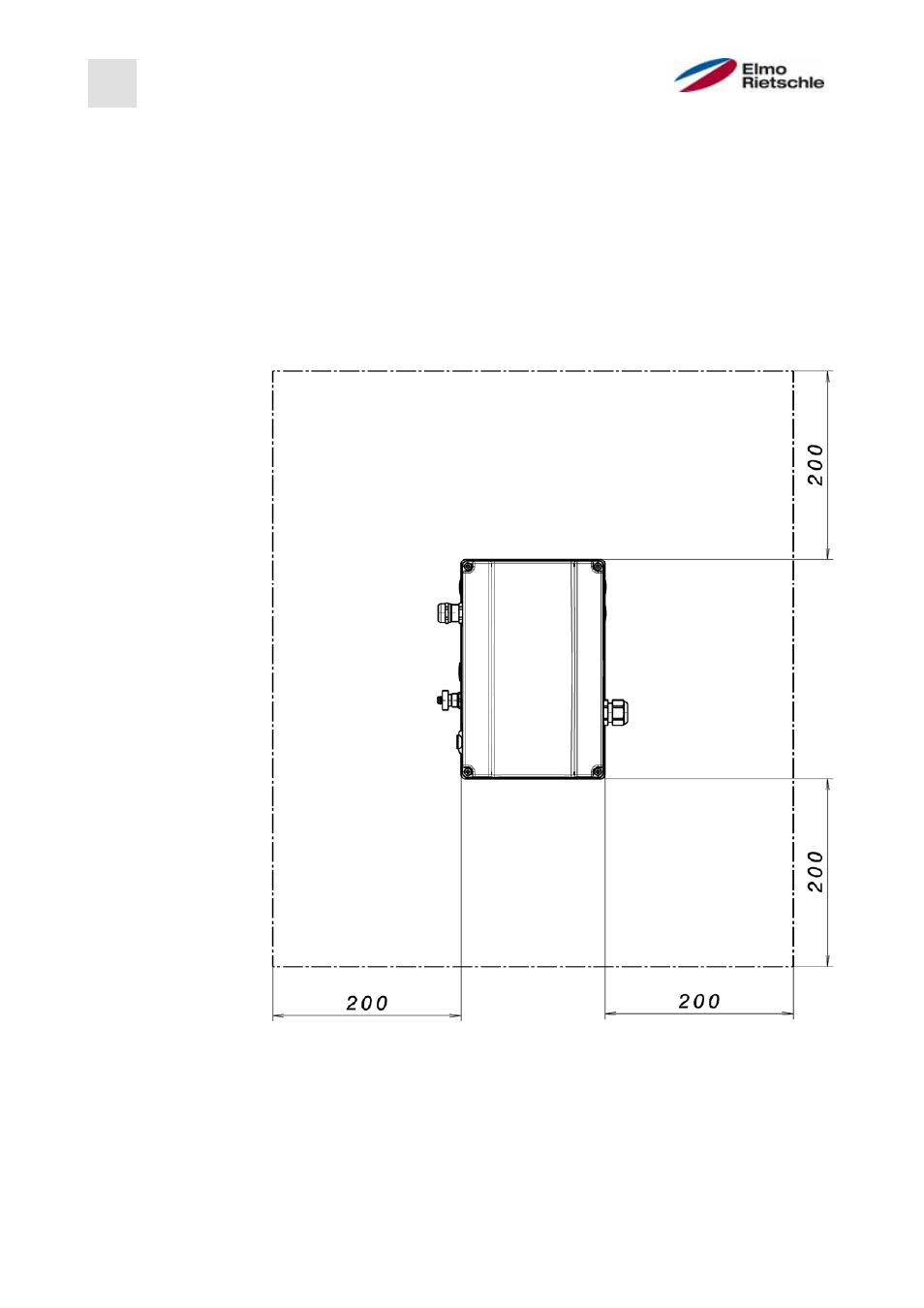

The following figure gives you the mounting dimensions and the necessary clear-
ance for the installation of the drive controller.
Minimum distances
For wall mounting, a maximum line length of 5 m is permitted between the motor
and the drive controller. A shielded cable with the cross section required in each
case should be used. A PE connection should be established (below the terminal
board the wall adapter)!
5.4
5.4.1
