ES3610/11 User Guide
Section 1: Introduction
I447GB issue 6
Page 9
Typical System Application

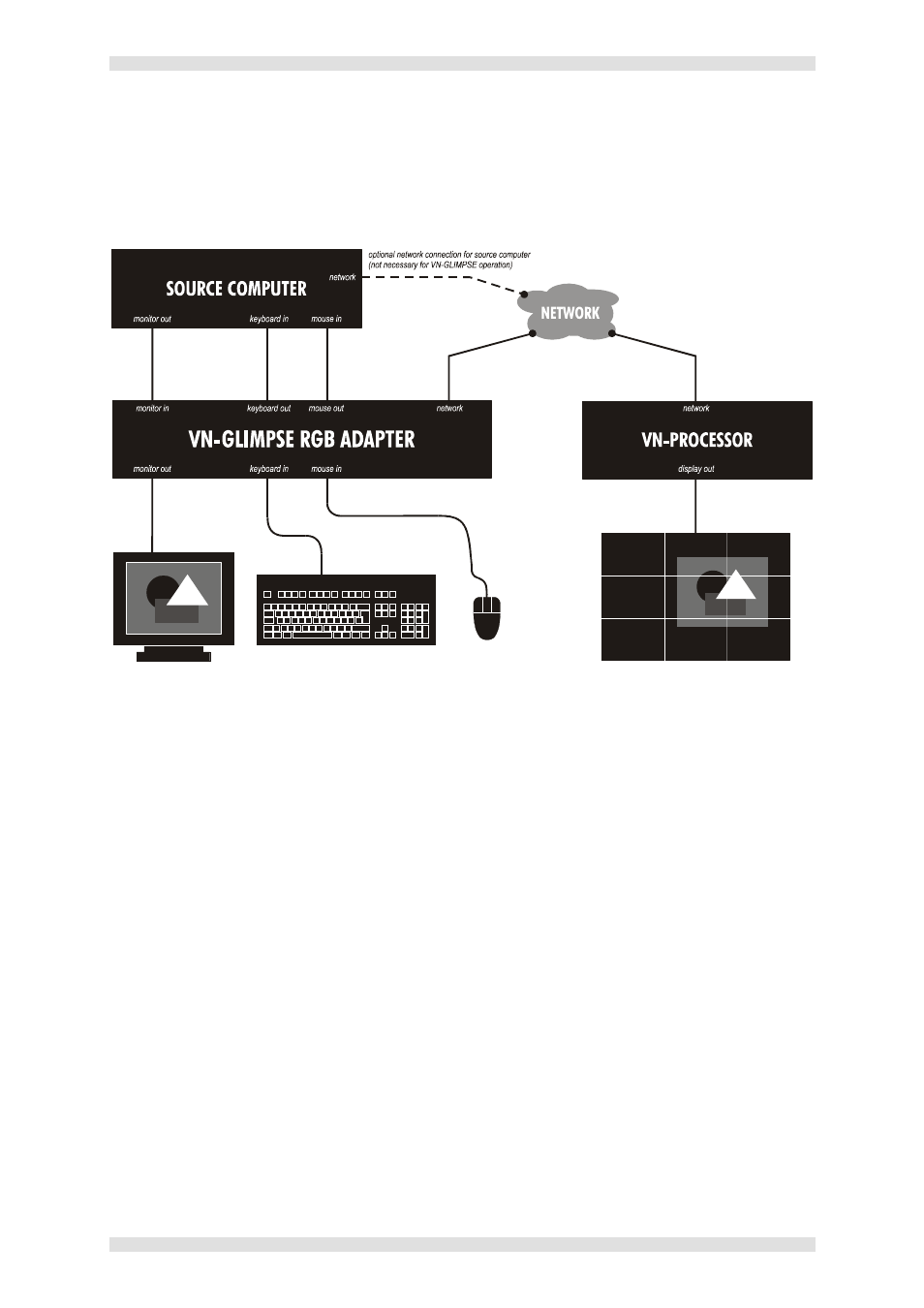

The diagram below shows a typical system application utilizing the VN-GLIMPSE RGB ADAPTER
allowing a computer source to be viewed on a VISIONETWORK (VN) Processor:
The RGB ADAPTER is connected between the source computer and its monitor, keyboard and
mouse. From these connections the RGB ADAPTER collects data about changes in the display
content along with keyboard and mouse actions. This data is then made available to a VN-Processor
which displays a facsimile of the source on the target display.
In addition, if the VN-Processor is equipped with its own keyboard and mouse, then these can be
used to ‘take control’ of any applications running on the source computer.
The operation of the RGB ADAPTER is completely transparent to the user of the source computer;
performance of the computer is not affected in any way.
